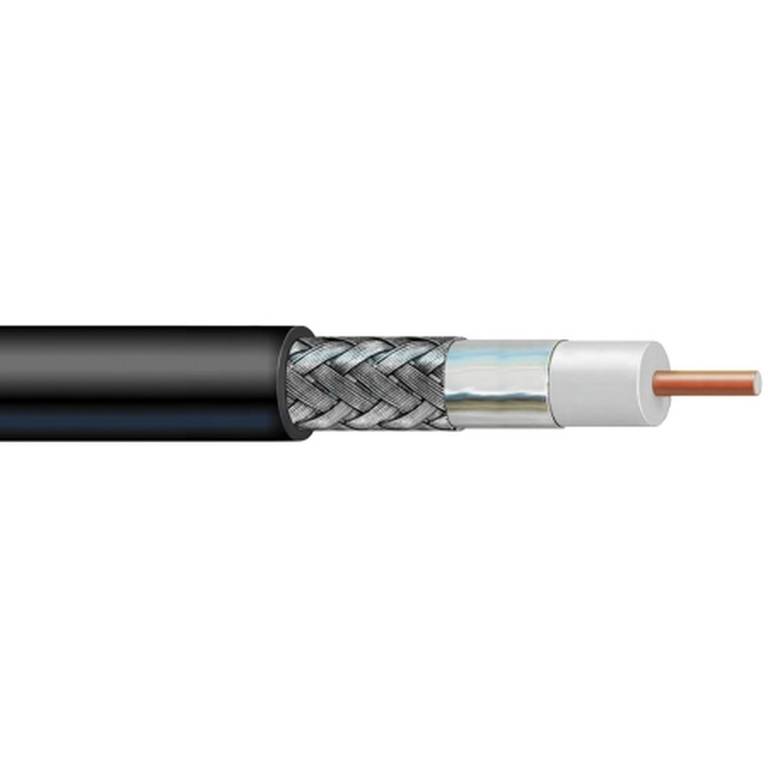

CommScope CNT-400 Coax Cable (H-1000, LMR-400)

Key features of CommScope CNT-400 Coax Cable (H-1000, LMR-400)

• Available as a complete roll (100m)
• Impedance: 50 Ohm
• Inner conductor: 2,74 mm solid copper wire
• Outer cable diameter: 10,29 mm
• Shielding: aluminium foil + tinned copper braid
• Attenuation at:
- 30 MHz: 2,5 dB / 100 m
- 150 MHz: 4,9 dB / 100 m
- 220 MHz: 6,2 dB / 100 m
- 450 MHz: 8,9 dB / 100 m
- 900 MHz: 12,8 dB / 100 m
- 1500 MHz: 16,7 dB / 100 m
- 2500 MHz: 22 dB / 100 m
- 5200 MHz: 33,4 dB / 100 m
• Color: black
• External and internal dimensions are equivalent to the H-1000 cable
