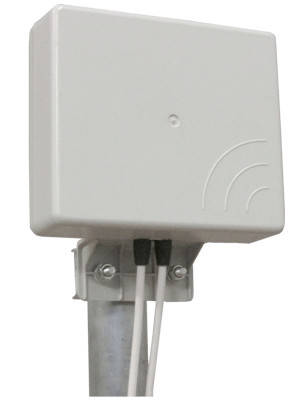

Sirio SMP-X WLAN MiMo 2,4GHz & 5GHz Base Antenna

SIR-234-999
Sirio SMP-X WLAN MiMo 2,4GHz & 5GHz Base Antenna

Key features of Sirio SMP-X WLAN MiMo 2,4GHz & 5GHz Base Antenna

‚ÄĘ Type: Directional mini panel - 2 wideband elements
‚ÄĘ Frequency range: 2.4-2.5 GHz & 5.15-5.89 GHz
‚ÄĘ Impedance: 50ő©
‚ÄĘ Polarization: cross
‚ÄĘ Systems: WiFi-2.4GHz, WiFi-5GHz
‚ÄĘ Radiation (H-plane/E-plane: see diagrams in pdf
‚ÄĘ Front to back ratio: ‚Č• 15 dB @ 2.4-2.5 GHz; ‚Č• 20 dB @ 5.15-5.89 GHz
‚ÄĘ Gain: 7 dBi @ 2.4-2.5 GHz; 11.4 dBi @ 5.15-5.89 GHz
‚ÄĘ SWR in bandwidth: ‚ȧ 2
‚ÄĘ Max. power (CW) @ 30¬įC: 20 Watts @ 2.4-2.5 GHz; 8 Watts @ 5.15-5.89 GHz
‚ÄĘ Cable lenght / type: 2x white low loss / 30 cm
‚ÄĘ Connector: 2x SMA-male

Gross price (including 27% VAT): 88.23‚ā¨ (Net price: 69.47‚ā¨)
Add to Cart Price Watch
You can ask for e-mail price notifications when the price of this product gets under a limit you specify. To use this feature you need to have a user account and to be signed in.

Further details of Sirio SMP-X WLAN MiMo 2,4GHz & 5GHz Base Antenna

‚ÄĘ Material: galvanized steel, thermoplastic UV stabilized
‚ÄĘ Wind load: 40 N @ 150 Km/h
‚ÄĘ Wind resistance: 180 Km/h
‚ÄĘ Wind surface: 0.02 m¬≤
‚ÄĘ Dimensions (approx.): 154 x 134 x 36 mm without bracket
‚ÄĘ Weight (approx.): 420 gr
‚ÄĘ Operating temperature: -40¬į C to +80¬į C
‚ÄĘ Installation type: wall mounting, or mounting mast: √ė 25-42 mm with U-bolt
