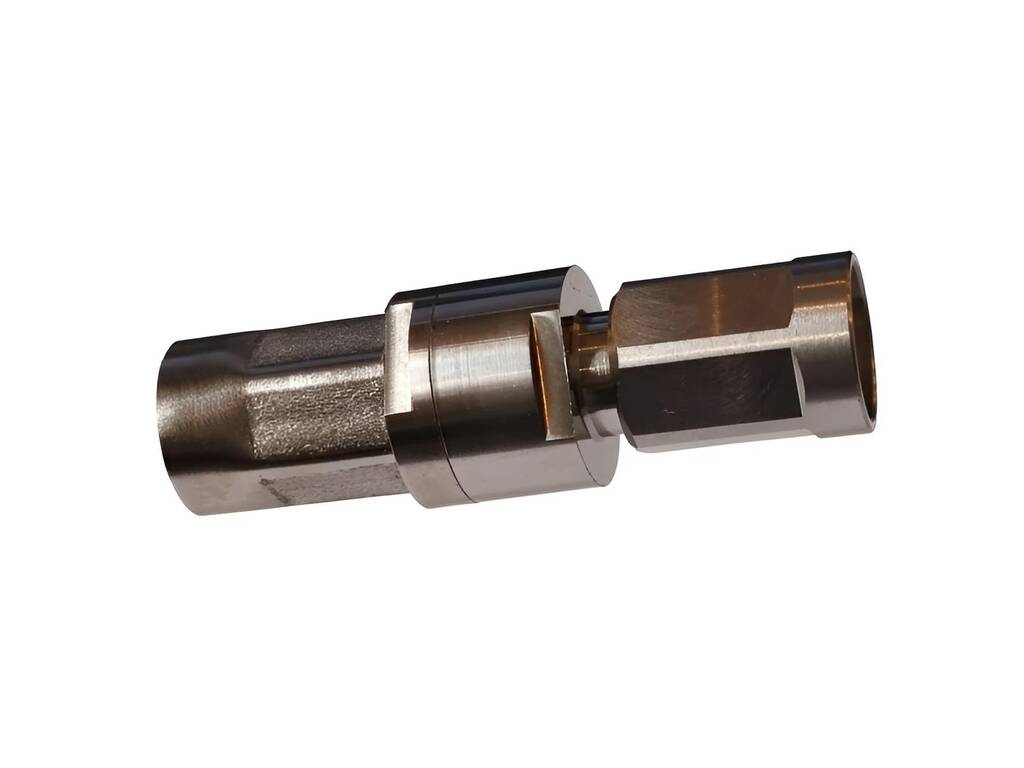

SSB NEX10 Male Crimp Connector

Further details of SSB NEX10 Male Crimp Connector

The SSB 7810 is a NEX10-style, crimp-type RF connector designed for use with Ecoflex 10 and Aircom Premium cables. The connector has a nominal impedance of 50 ohms and a frequency range of DC–12 GHz.

• VSWR: ≤ 1.15 from DC to 6 GHz
• VSWR: ≤ 1.35 from 6 to 12 GHz
• Insertion loss: < 0.05 dB
• Rated voltage: max. 500 V
• Insulation resistance: ≥ 5 gigaohms
• Dielectric strength: ≥ 1500 V

SSB 7810 NEX10 Mechanical Specifications

• Minimum number of connection cycles: 100
• Connector housing material: HEP2R-coated brass
• Contact material: silver-plated brass and beryllium copper
• External contact: silver-plated beryllium copper
• Insulation material: PTFE
• Seal material: silicone rubber
• Other components: HEP2R-coated brass and bronze
• Protection rating: IP68 when connected
• Weight: 22.7 g

SSB 7810 NEX10 Electrical Specifications

• Return loss: < -36 dB from DC to 4 GHz
• Return loss: < -34 dB from 4 to 6 GHz
• Return loss: < -30 dB from 6 to 12 GHz

Product part number: 7810
