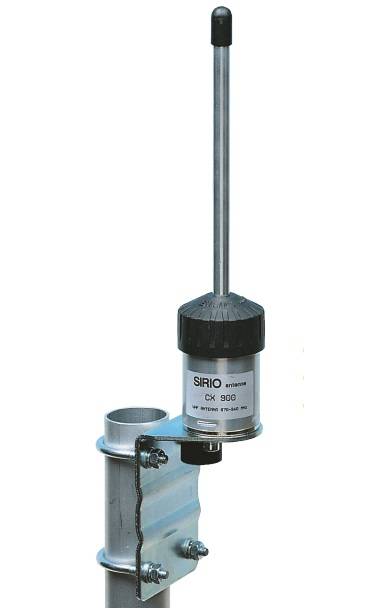

Sirio CX 868 ISM base antenna

SIR-225-999
Sirio CX 868 ISM base antenna
Sirio CX 868 ISM base antenna

Key features of Sirio CX 868 ISM base antenna

• Type: 3/4 λ coaxial J-pole omnidirectional
• Frequency range: 845-885 MHz
• Systems: GSM-R, GSM-900, ISM/SIGFOX/LoRa 868MHz, ISM/SIGFOX/LoRa 915MHz
• Impedance: 50Ω
• Radiation (H-plane): 360°
• Radiation (E-plane): beamwidth @ -3 dB = 70°
• Polarization: linear vertical
• Gain: 2,15 dBi
• SWR: ≤ 1,5
• Max. Power (CW) @ 30°C: 100 Watts

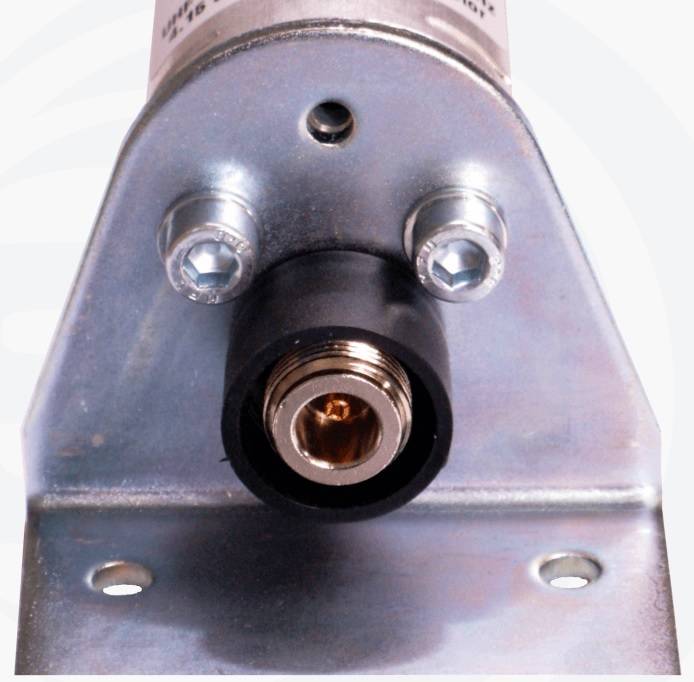

• Connector: N female

Gross price (including 27% VAT): 43.92€ (Net price: 34.59€)
Add to Cart Price Watch
You can ask for e-mail price notifications when the price of this product gets under a limit you specify. To use this feature you need to have a user account and to be signed in.

Further details of Sirio CX 868 ISM base antenna

• Materials: Aluminium, Zamac, Brass, Thermoplastic
• Wind load: 17 N at 180 Km/h
• Wind surface: 0,01 m²
• Height: 370 mm
• Weight (approx.): 470 gr
• Mounting mast: Ø 35-42 mm
