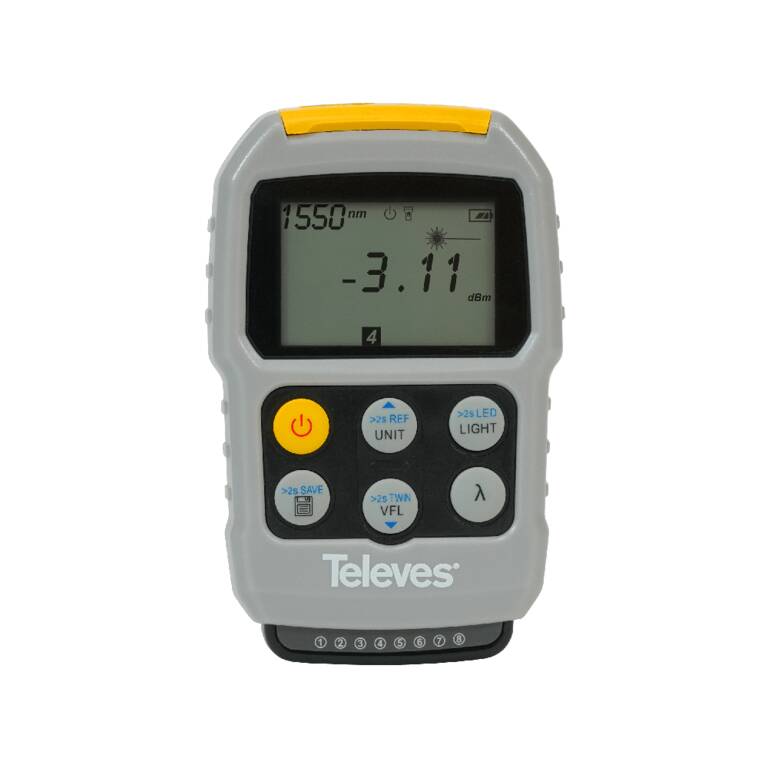

Televes OPMVFLRJ45 Fibre Optic and RJ45 Cable Tester

Further details of Televes OPMVFLRJ45 Fibre Optic and RJ45 Cable Tester

The Televes OPMVFLRJ45 is a compact multifunction tester that combines an Optical Power Meter (OPM), Visual Fault Locator (VFL), RJ45 network cable tester and LED flashlight in a single portable device. It is designed for testing FTTx and FTTH optical networks as well as structured data cabling, providing installers with a versatile field measurement solution.

Televes OPMVFLRJ45 Fibre Optic and RJ45 Cable Tester

• Optical Power Meter (OPM), Visual Fault Locator (VFL), RJ45 cable tester and LED flashlight in one unit
• Designed for FTTx and FTTH optical networks

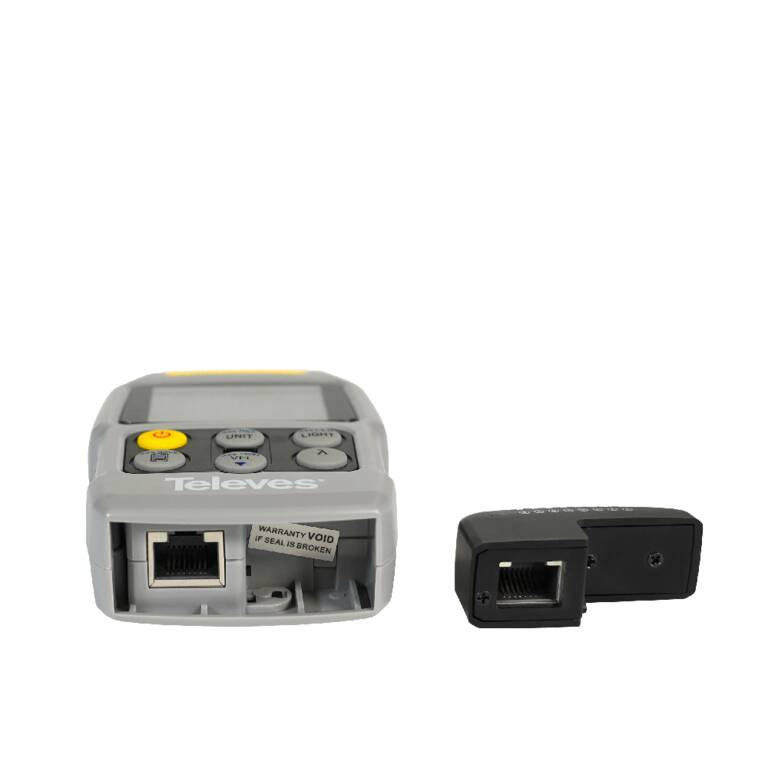

• RJ45 network cable testing using a removable remote unit
• Compact and ergonomic design
• Low power consumption
• Universal 2.5 mm optical interface

Key Features

• High-accuracy optical measurements using a high-performance optical detector
• Measurement display in dBm, dB and mW
• Automatic calibration function
• Storage of up to 50 measurement records
• Compatible with SC, FC and ST optical connectors
• Compatible with LC connectors using an intermediate adapter on SM and MM fibres

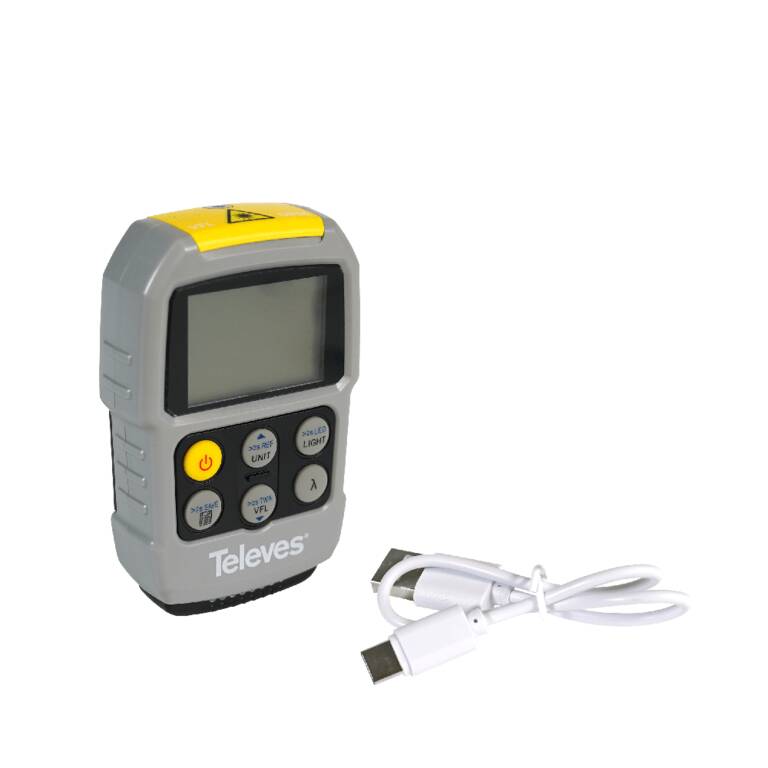

• Powered by 2 × AAA batteries or USB Type-C
• Compact and easy to carry

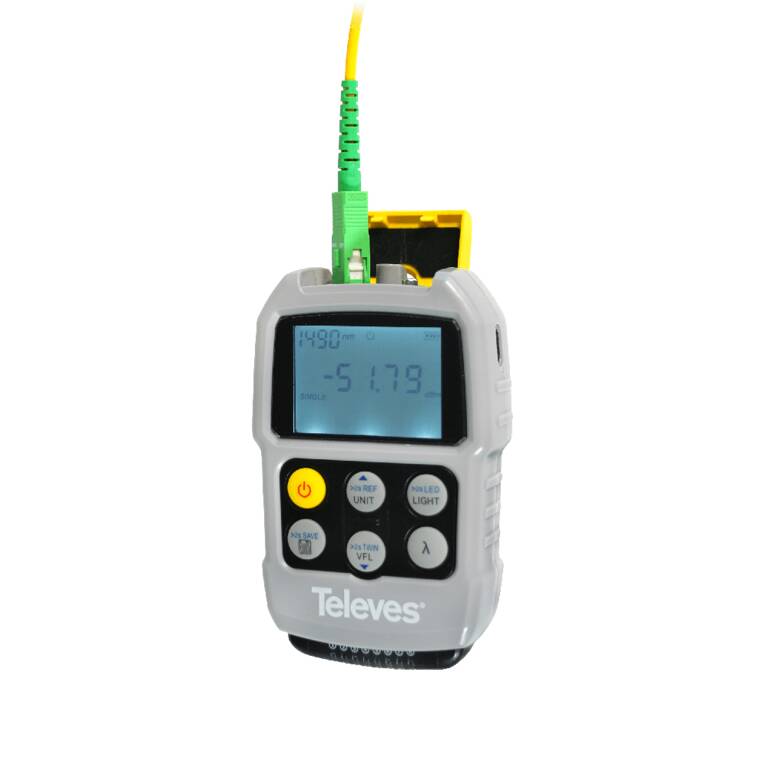

Optical Power Meter (OPM)

• Wavelengths: 850, 1300, 1310, 1490, 1550, 1625 and 1650 nm
• Dynamic range: -70 to +10 dBm
• Accuracy: ±0.35 dB
• Resolution: 0.01 dB
• Units: dBm, dB, mW
• Tone detection: CW, 270 Hz, 1000 Hz, 2000 Hz
• Detector: InGaAs

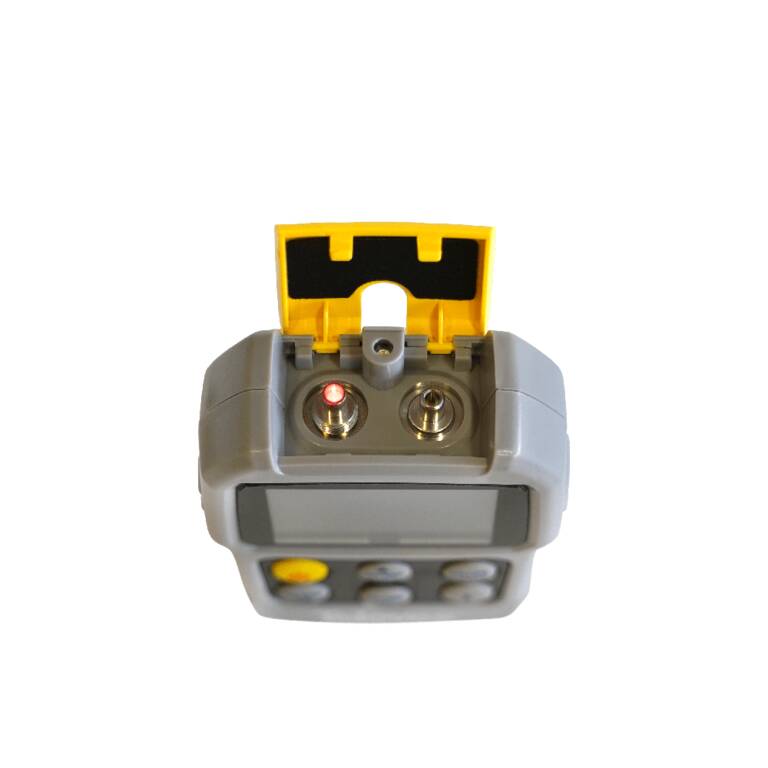

• Connector: FC/SC/ST with 2.5 mm universal ferrule

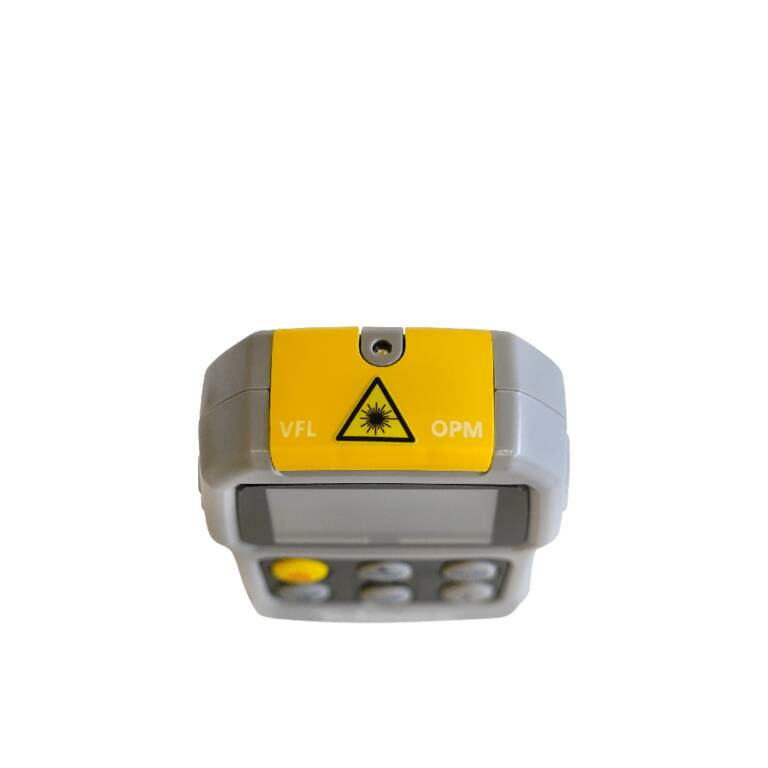

Visual Fault Locator (VFL)

• Wavelength: 650 ±30 nm
• Output power: 10 mW
• Maximum distance: up to 5 km on single-mode fibre
• Laser safety class: 3R (AEL ≤4.99 mW, typical 3.5 mW)
• Operating modes: CW, 1 Hz and 2 Hz
• Connector: FC/SC/ST with 2.5 mm universal ferrule

RJ45 Network Cable Tester

• Connector: RJ45 UTP
• Maximum cable length: 305 m

General Specifications

• Display: 1.88" (4.8 cm)
• Integrated LED flashlight

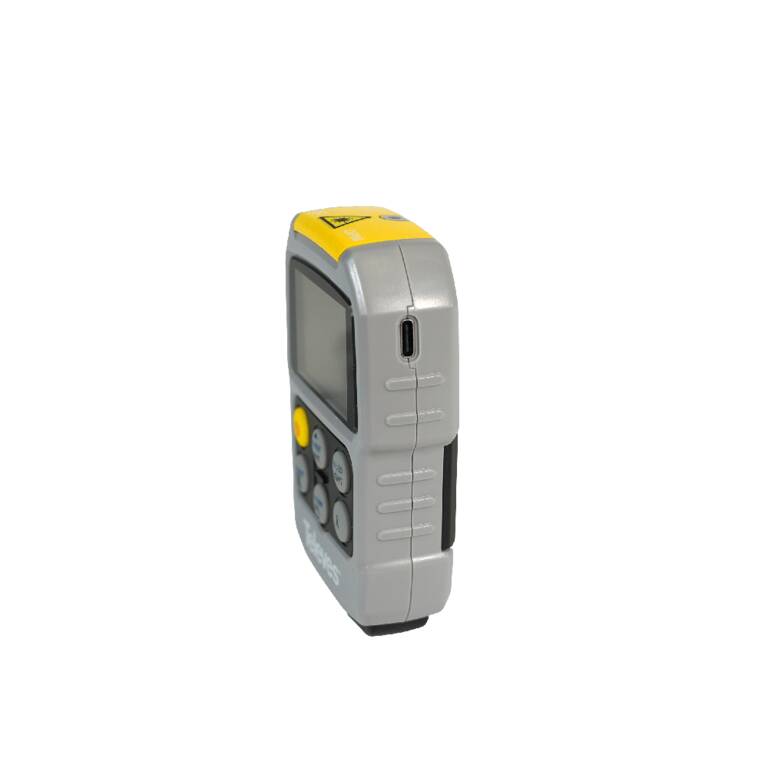

• Power supply: 2 × AAA batteries or USB Type-C
• Operating temperature: -10 to +50 °C
• Storage temperature: -25 to +70 °C
• Relative humidity: 0-95% (non-condensing)
• Dimensions: 67 × 104 × 26 mm
• Net weight: 104 g
• Data storage: 50 records
• EAN: 8424450304976
