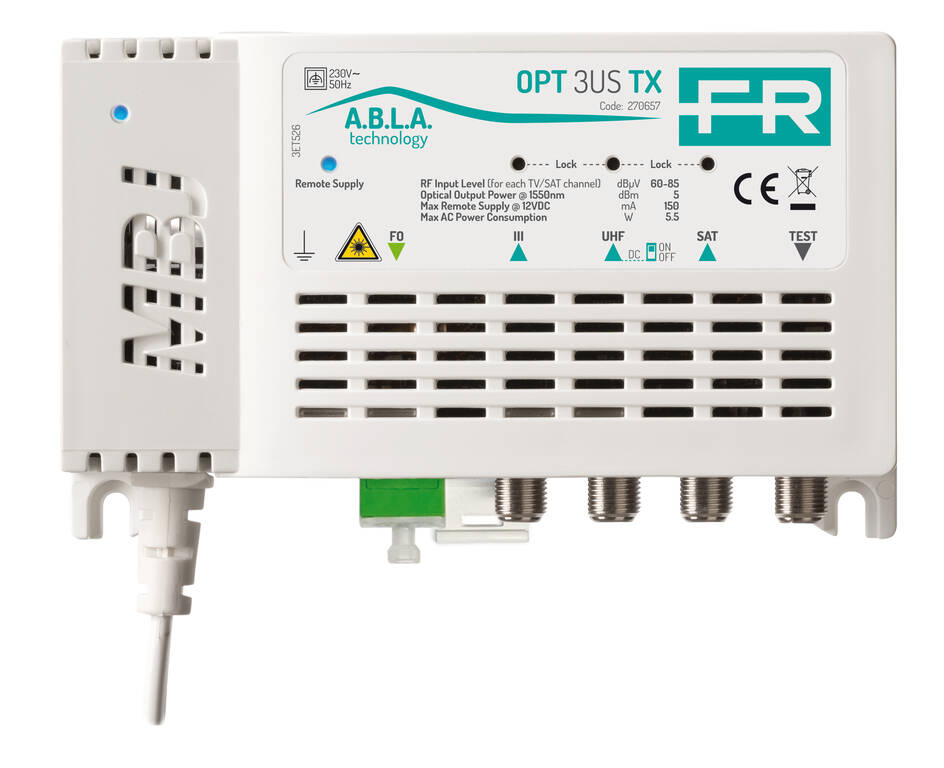

Fracarro OPT 3US TX Optical VHF UHF SAT Transmitter

Further details of Fracarro OPT 3US TX Optical VHF UHF SAT Transmitter

The Fracarro OPT 3US TX optical transmitter distributes VHF, UHF and IF-IF signals from three RF inputs over a single optical fibre. It uses a 1550 nm laser with an optical output power of 5 dBm.

Fracarro OPT 3US TX Optical VHF UHF SAT Transmitter

• Three RF inputs: VHF, UHF and IF-IF
• One SC/APC optical output
• RF monitor output for signal monitoring without disconnecting the distribution network
• Standard DIN rail mounting with quick release
• Plug&Play installation
• Standard SC/APC optical connector
• High shielding against electromagnetic interference
• Low power consumption

A.B.L.A. Technology

• Maintains the correct optical output level using dedicated independent electronic circuits
• Dedicated A.B.L.A. status LEDs
• Optical output level stabilisation under high RF input level variations
• Separate amplification with independent RF signal handling
• Up to 20 dB manageable optical attenuation when used with an OPT-RX receiver

Technical Specifications

• TV input connectors: F female
• TV input level: 60-85 dBµV @MUX
• VHF frequency band: 174-230 MHz
• UHF frequency band: 470-790 MHz
• SAT frequency band: 950-2150 MHz
• SAT output level: 60-85 dBµV @TP
• TV return loss: >8 dB
• SAT return loss: >8 dB
• RF output return loss: >8 dB
• Optical wavelength: 1550 nm
• Optical output power: 5 dBm
• Optical return loss: >30 dB
• Laser safety class: 1M
• Test output: F female
• Test output frequency band: 174-230 / 470-790 / 950-2150 MHz
• Test output attenuation: 59 dB (VHF), 70 dB (UHF, SAT)

Power and Mechanical Data

• Supply voltage: 184-264 V AC, 50-60 Hz
• Power consumption: 5.5 W
• LEDs: Remote Supply, Lock
• Operating temperature: -10 to +55 °C
• Compliance: EN62368-1:2014/AC:2015, EN50083-2:2012/A1:2015
• Dimensions: 135 × 82 × 39 mm
• Packaging dimensions: 176 × 110 × 50 mm
• Weight: 0.345 kg
• EAN: 8016978103676
