Fracarro OPT RX 4 MICRO Optical TV+SAT Receiver

Further details of Fracarro OPT RX 4 MICRO Optical TV+SAT Receiver

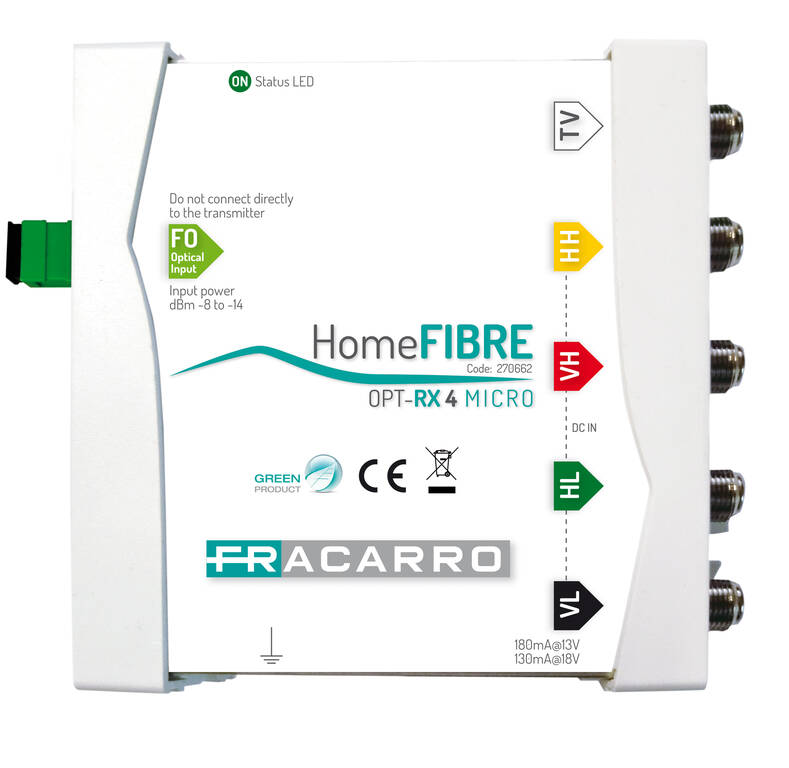

The Fracarro OPT RX 4 MICRO optical receiver converts an optical input signal into coaxial outputs. It provides four satellite polarity outputs (VL, HL, VH and HH) together with a dedicated TV output. The receiver is powered directly from the SAT outputs.

Fracarro OPT RX 4 MICRO Optical TV+SAT Receiver

• 1 × SC/APC optical input
• Outputs: 4 SAT (VL, HL, VH, HH) + 1 TV
• Full-band operation: TV 87-862 MHz, SAT 950-2150 MHz
• Standard SC/APC optical connector
• Compact size
• Optical budget up to 21 dB
• Optical receiving range: -8 dBm to -14 dBm
• Low current consumption

LED Indications

• Green LED ON: normal operation with correct power supply
• Fast flashing LED: hardware fault
• Slow flashing LED: received optical power outside the operating range

Technical Specifications

• Optical input wavelength: 1260-1650 nm
• Optical input power: ≤ -8 dBm
• TV return loss: >10 dB
• SAT return loss: >10 dB
• RF connectors: F female
• RF return loss: >10 dB
• TV output level at 8 dBmo: 85 dBµV (8 transponders), 82 dBµV (16 transponders), 78 dBµV (40 transponders)
• TV output level at 14 dBmo: 67 dBµV (8 transponders), 64 dBµV (16 transponders), 66 dBµV (40 transponders)
• SAT output level: 80 dBµV (8 dBmo), 68 dBµV @TP (14 dBmo)

Power and Mechanical Data

• Supply voltage: 13-18 V DC (SAT)
• Current consumption: 180 mA @13 V
• Power consumption: 2.5 W
• Operating temperature: -5 to +50 °C
• Compliance: EN50083-2:2012/A1:2015
• Dimensions: 120 × 100 × 36 mm
• Packaging dimensions: 130 × 110 × 37 mm
• Weight: 0.312 kg
• EAN: 8016978101344
