Fracarro OPT T+S TX PLUS Optical TV+SAT Transmitter

Further details of Fracarro OPT T+S TX PLUS Optical TV+SAT Transmitter

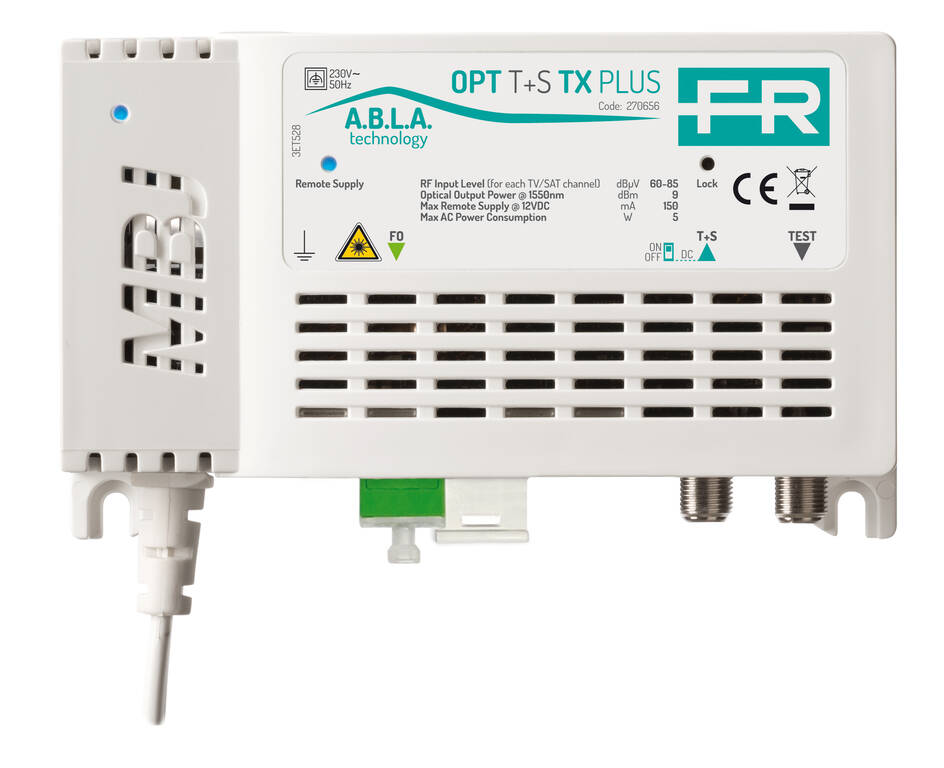

The Fracarro OPT T+S TX PLUS optical transmitter is designed for the transmission of TV and satellite signals over a single optical fibre. It uses a 1550 nm laser with an optical output power of 9 dBm and supports broadband TV and SAT signal distribution.

Fracarro OPT T+S TX PLUS Optical TV+SAT Transmitter

• TV+SAT RF input
• SC/APC optical output
• RF monitor output for signal monitoring without disconnecting the distribution service
• Broadband TV/SAT operation
• Standard DIN rail mounting with quick release
• Plug&Play installation
• Low power consumption
• High shielding against electromagnetic interference
• Standard SC/APC optical connector

A.B.L.A. Technology

• Maintains the correct optical output level using independent electronic circuits
• Dedicated A.B.L.A. status LEDs
• Optical output level stabilisation under high RF input level variations
• Separate amplification with independent RF signal handling

Technical Specifications

• TV frequency range: 88-862 MHz
• TV input level: 60-85 dBµV @MUX
• TV return loss: >8 dB
• SAT frequency range: 950-2150 MHz
• SAT output level: 60-85 dBµV @TP
• SAT return loss: >8 dB
• RF connectors: F female
• RF output return loss: >8 dB
• Optical wavelength: 1550 nm
• Optical output power: 9 dBm
• Optical return loss: >30 dB
• Laser safety class: 1M
• Test output connector: F female
• Test output frequency range: 88-862 / 950-2150 MHz
• Test output attenuation: 81 dB

Power and Mechanical Data

• Supply voltage: 184-264 V AC, 50-60 Hz
• Power consumption: 4.5 W
• LEDs: Remote Supply, Lock
• Operating temperature: -10 to +55 °C
• Compliance: EN62368-1:2014/AC:2015, EN50083-2:2012/A1:2015
• Dimensions: 135 × 82 × 39 mm
• Packaging dimensions: 176 × 110 × 50 mm
• Weight: 0.335 kg
• EAN: 8016978103706
