Fracarro PLC 1x4 Optical PLC Splitter SC/APC

Further details of Fracarro PLC 1x4 Optical PLC Splitter SC/APC

The Fracarro PLC 1x4 optical PLC splitter uses planar waveguide technology to provide 1:4 optical signal splitting. It is suitable for building ROEs and for low-cost, high-performance optical distribution systems.

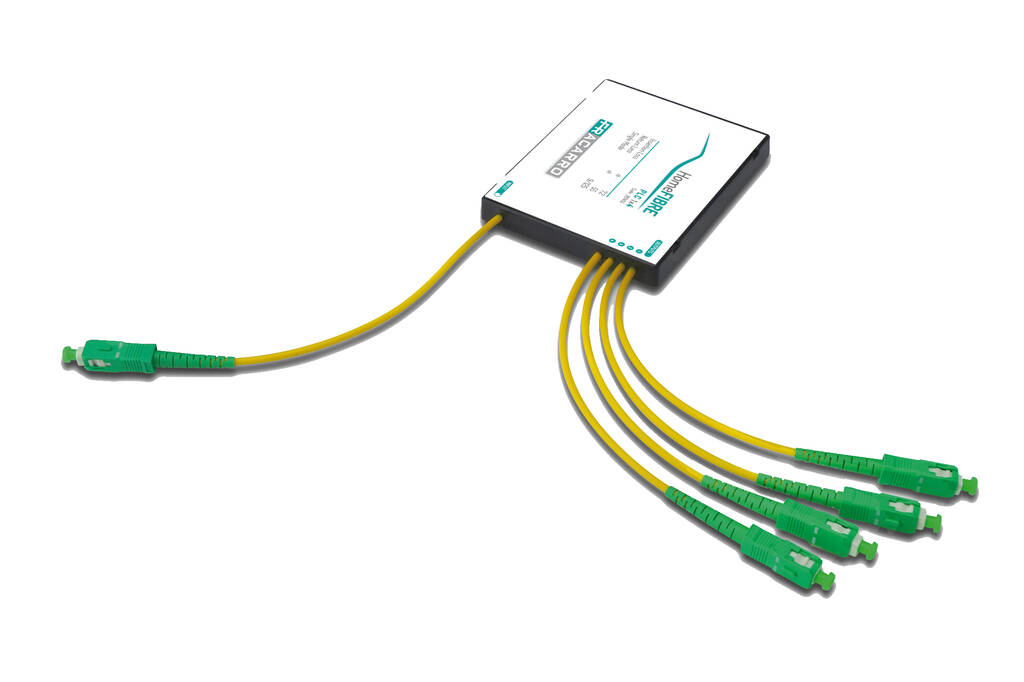

Fracarro PLC 1x4 Optical PLC Splitter

• One optical input and four optical outputs
• SC/APC to SC/APC connectors
• Planar waveguide technology
• Compact design
• 1 m patch cords
• SC/APC connectors
• High return loss

The splitter provides optical signal distribution with low insertion loss and is suitable for a wide range of optical distribution installations.

Technical Specifications

• Number of inputs: 1
• Number of outputs: 4
• Connectors: SC/APC - SC/APC
• Insertion loss: <7.6 dB
• Return loss: >55 dB
• Isolation: >40 dB
• Wavelength range: 1260-1650 nm
• Fibre type: Single-mode 9/125
• Sheath: G657 A1
• Fibre length: 1 m
• Connector type: Simplex

Operating Specifications

• Operating temperature: -20 to +55 °C
• Compliance: EN50581:2012
• Dimensions: 90 × 100 × 20 mm
• Packaging dimensions: 240 × 260 × 20 mm
• Weight: 0.12 kg
• EAN: 8016978100835
