Fracarro STOA 4C 30m Optical Termination Box

Further details of Fracarro STOA 4C 30m Optical Termination Box

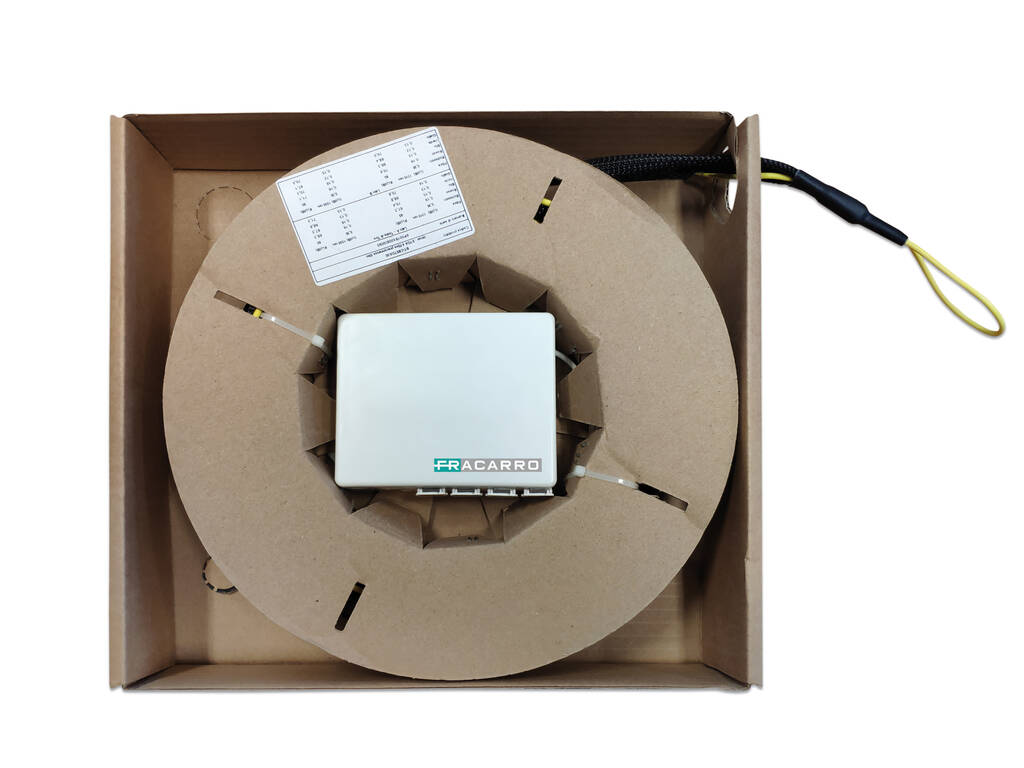

The Fracarro STOA 4C 30m Plastic Apartment Optical Termination Box is a pre-connected solution designed for FTTH multiservice installations. It is factory terminated on both sides and features four SC/APC sockets together with a 30 m four-fibre optical cable. The product provides a practical solution for bringing all centralized FTTH services from the CSOE to individual residential units.

Fracarro STOA 4C 30m Optical Termination Box

• Pre-connected optical termination box
• Factory pre-connected on both sides
• Four SC/APC optical sockets
• 30 m four-fibre optical cable
• Designed for indoor FTTH multiservice installations
• White housing

Cable and Connectors

• Fibre type: Single-mode 9/125, semi loose
• Sheath: LSZH, G657 A2
• Number of fibres: 4
• Fibre length: 30 m
• Sheath diameter: 3 mm
• Connectors: SC/APC - SC/APC
• Connector type: Simplex PULL
• Insertion loss: <0.25 dB (Grade B)

Technical Specifications

• CPR classification: Cca, s1a, d0, a1
• Compliance: EN 50575:2014 + A1:2016
• Product dimensions: 250 × 250 × 50 mm
• Packaging dimensions: 280 × 260 × 60 mm
• Weight: 0.65 kg
• EAN: 8016978107988

If requested, we can also provide models equipped with 40- or 50-meter cables.
