Fracarro OPT RX Optical TV+SAT Receiver SC/APC

Further details of Fracarro OPT RX Optical TV+SAT Receiver SC/APC

The Fracarro OPT RX optical receiver provides a single broadband RF output for receiving TV+SAT signals distributed over a single optical fibre. The receiver supports an optical input power range from 0 to -15 dBm and an optical operating window of 1270-1610 nm.

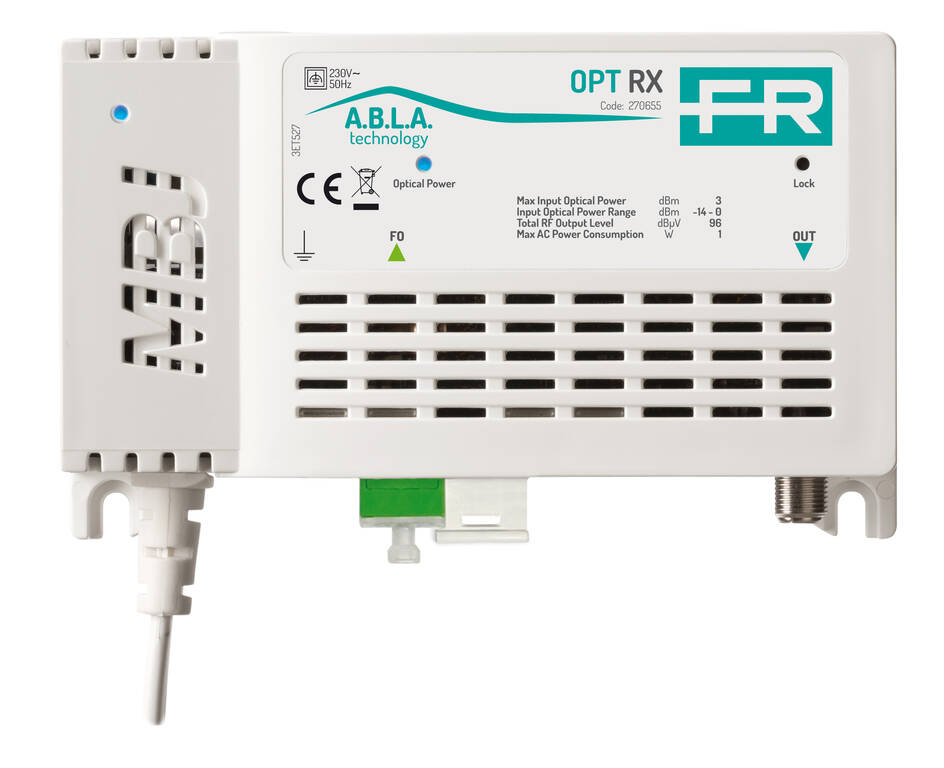

Fracarro OPT RX Optical TV+SAT Receiver

• One broadband TV+SAT RF output
• SC/APC optical input
• F female RF connector
• Broadband TV/SAT operation
• Standard DIN rail mounting with quick release
• Plug&Play installation
• Standard SC/APC optical connector
• High shielding against electromagnetic interference
• Low power consumption

A.B.L.A. Technology and Status Indication

• A.B.L.A. technology maintains the correct optical level using independent electronic circuits
• Separate LEDs for received optical power and RF signal presence
• Dedicated A.B.L.A. status LEDs
• Optical input level monitoring
• RF signal lock indication

Technical Specifications

• Optical input: SC/APC
• Input wavelength: 1260-1650 nm
• Optical input power: up to 0 dBm (0 to -15 dBm)
• TV return loss: >7 dB
• SAT return loss: >7 dB
• RF connector: F female
• RF return loss: >7 dB
• RF output: 1 (TV + SAT)
• TV output level: 82 dBµV @MUX (8 dBmo, 8 transponders)
• SAT output level: 74 dBµV @TP (8 dBmo)

Power and Mechanical Data

• Supply voltage: 184-264 V AC, 50-60 Hz
• Power consumption: 1.5 W
• LEDs: Optical power, Lock
• Operating temperature: -10 to +55 °C
• Compliance: EN62368-1:2014/AC:2015, EN50083-2:2012/A1:2015
• Dimensions: 135 × 82 × 39 mm
• Packaging dimensions: 176 × 110 × 50 mm
• Weight: 0.33 kg
• EAN: 8016978103683
