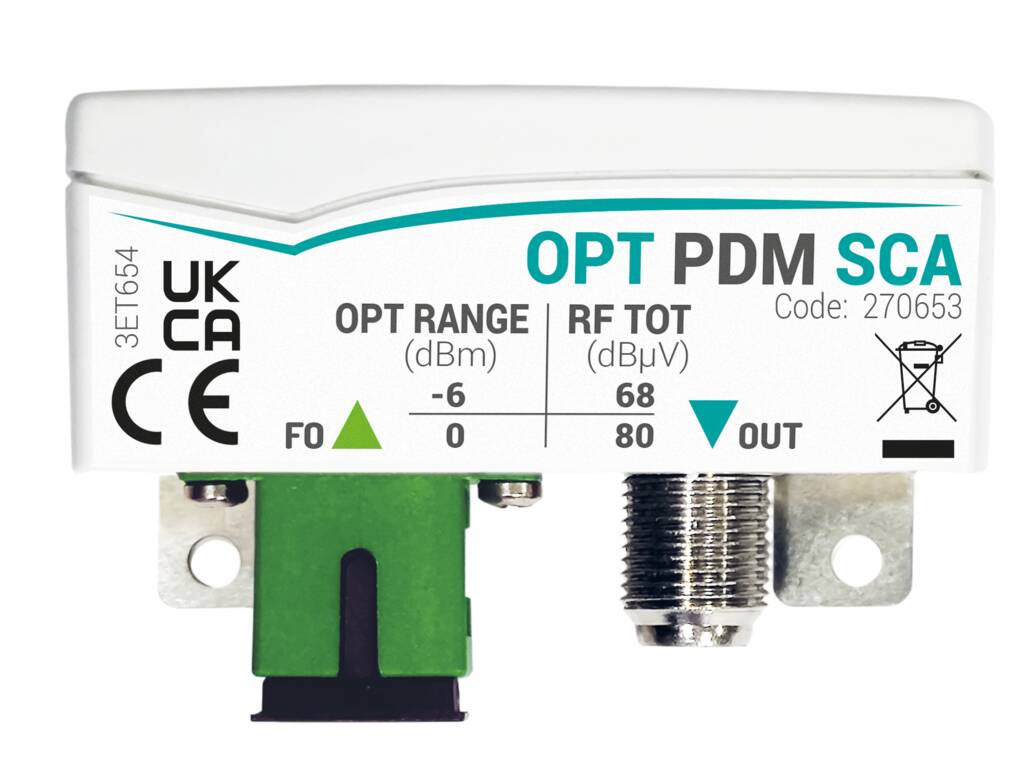

Fracarro OPT-PDM-SCA Passive Optical TV+SAT Receiver

Further details of Fracarro OPT-PDM-SCA Passive Optical TV+SAT Receiver

The Fracarro OPT-PDM-SCA is a miniature passive optical receiver designed for TV+SAT (IF-IF) signal distribution over FTTH passive optical infrastructures. The receiver requires no external power supply, as the optical signal received through the fibre is sufficient to provide the RF signal on the coaxial output.

Fracarro OPT-PDM-SCA Passive Optical TV+SAT Receiver

• Passive operation without external power supply
• 1 × SC/APC optical input
• 1 × TV+SAT RF output
• F female RF connector
• Standard SC/APC optical connector
• RF frequency range: 88-2350 MHz
• Suitable for flush-mounting boxes or "Retro TV" mode
• Removable protective shell

Technical Specifications

• Optical input: 1 × SC/APC
• Optical connector: SC/APC
• Optical operating wavelength: 1270-1610 nm
• Optical input power: up to 10 dBm, typical operating range from 0 to -6 dBm
• TV return loss: >7 dB
• SAT return loss: >7 dB
• RF connector: F female
• RF return loss: >7 dB
• RF output: 1 (TV + SAT)
• Optical return loss: -50 dB
• Laser safety class: 1M
• Maximum TV output level: 67 dBµV (@0 dBm)
• Maximum SAT output level: 80 dBµV total (@0 dBm)

Operating Specifications

• Operating temperature: 0 to +40 °C
• Storage temperature: -40 to +70 °C
• Compliance: EN50083-2:2012/A1:2015
• Dimensions: 47 × 33 × 15 mm
• Packaging dimensions: 85 × 50 × 60 mm
• Weight: 0.152 kg
• EAN: 8016978105939
