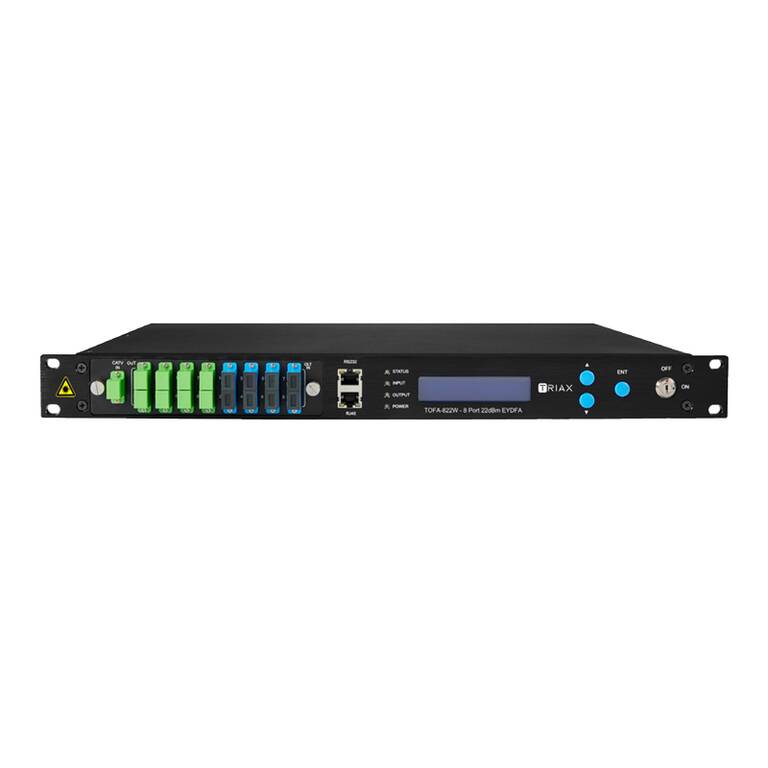

Triax TOFA-822W 8-port 1550 nm PON EYDFA Optical Amplifier

Further details of Triax TOFA-822W 8-port 1550 nm PON EYDFA Optical Amplifier

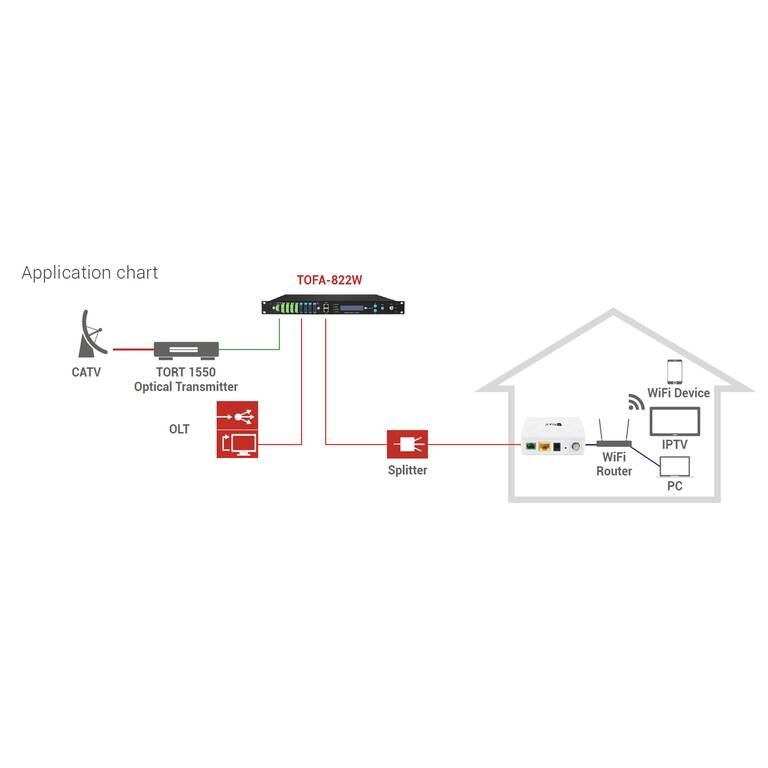

The Triax TOFA-822W 8-port 1550 nm high-power PON EYDFA combines a low-noise EDFA and a high-power EYDFA. The total output optical power can reach 37 dBm. The 1550 nm optical power per output port is 22 dBm for this version. Each output port has built-in CWDM for multiplexing the CATV signal and OLT PON data flow. The unit is compatible with FTTx PON systems including EPON, GPON and 10GPON.

Triax TOFA-822W optical characteristics

• CATV operating wavelength: 1545-1565 nm
• OLT PON pass wavelength: XPON 1310/1490 nm
• 10G PON pass wavelength: 1270/1577 nm
• Optical input range: -8 to +10 dBm, 1 dBm interval
• Total output optical power: 37 dBm
• Output power: 8 x 22 dBm
• Number of OLT PON ports: 8, SC/UPC
• Number of COM ports: 8, SC/APC
• CATV pass loss: maximum 0.8 dB
• OLT pass loss: -4 to 0.8 dB, in 0.1 dB steps
• Output adjustment range: 0 to -4 dB
• Output ports uniformity: maximum 0.7 dB
• Output power stability: maximum 0.3 dB
• Isolation between CATV and OLT: minimum 40 dB
• Switching time of optical switch: maximum 8 ms
• Insertion loss of optical switch: maximum 0.8 dB
• Noise figure: maximum 6 dB at 0 dBm input power
• PDL: maximum 0.3 dB
• PDG: maximum 0.4 dB
• PMD: maximum 0.3 ps
• Remnant pump power: maximum -30 dBm
• Optical return loss: minimum 45 dB
• Fibre connector: SC/APC

TOFA-822W functions and optical design

• High-quality pump laser and double cladding active fibre
• Each output port has built-in CWDM
• Compatibility: EPON, GPON and 10GPON FTTx PON
• APC, ACC and ATC optical circuit design
• Operating band: 1545-1565 nm
• Automatic protection for low input power or no input
• The laser automatically shuts down when the input optical power is below the set value
• Adjustable output with a 0 to -4 dB adjustment range
• CATV/PON dual fibre inputs
• Optical switch with automatic and manual switching

Triax TOFA-822W monitoring and network management

The operating parameters are controlled by a microprocessor. The front-panel LCD status display supports laser status monitoring, parameter display, fault alarm and network management. If the operating parameters of the laser deviate from the range set by the user in the software, the system issues an alarm.

• Standard RJ45 interface
• SNMP network management support
• WEB remote network management support
• RS232 interface
• Front-panel LCD status display
• LED indicators
• Front-panel control buttons
• Front-panel lock

TOFA-822W connectors and power supply

• 8 x SC/APC optical outputs
• 8 x SC/UPC PON inputs
• 1 x SC/APC CATV input
• Built-in dual power supply
• Automatic power supply switching
• Hot plug support
• Power supply: 90-265 V AC
• Power consumption: maximum 70 W
• Cooling: 3 fans

Triax TOFA-822W general specifications

• Operating temperature: -5 to 65 C
• Storage temperature: -40 to 85 C
• Operating relative humidity: 5-95%
• Dimensions, W x L x H: 370 x 483 x 44 mm
• Weight: 5.5 kg
• Article number: 308551
• EAN: 5061038085341
• Power configuration: 2 x AC
