Triax TONT-4600A XPON Wi-Fi 6 ONT USB Optical Network Unit

Further details of Triax TONT-4600A XPON Wi-Fi 6 ONT USB Optical Network Unit

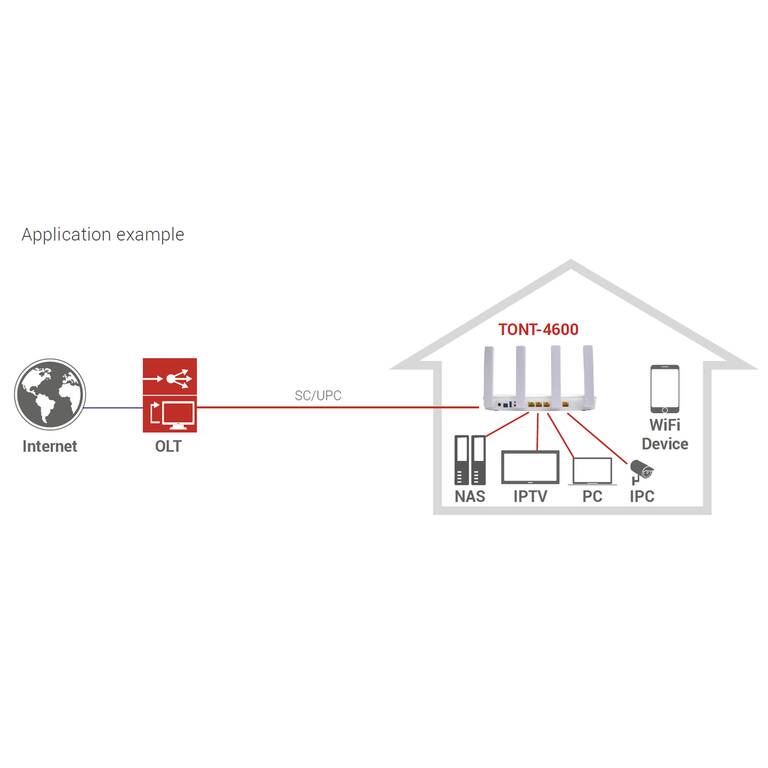

The TRIAX TONT-4600A XPON ONT is a broadband access device designed for FTTH networks. It supports XPON Dual Mode operation on EPON and GPON networks and integrates Wi-Fi 6, four Gigabit Ethernet ports and a USB 3.0 interface. The integrated fibre cable management tray in the base helps organise the optical fibre.

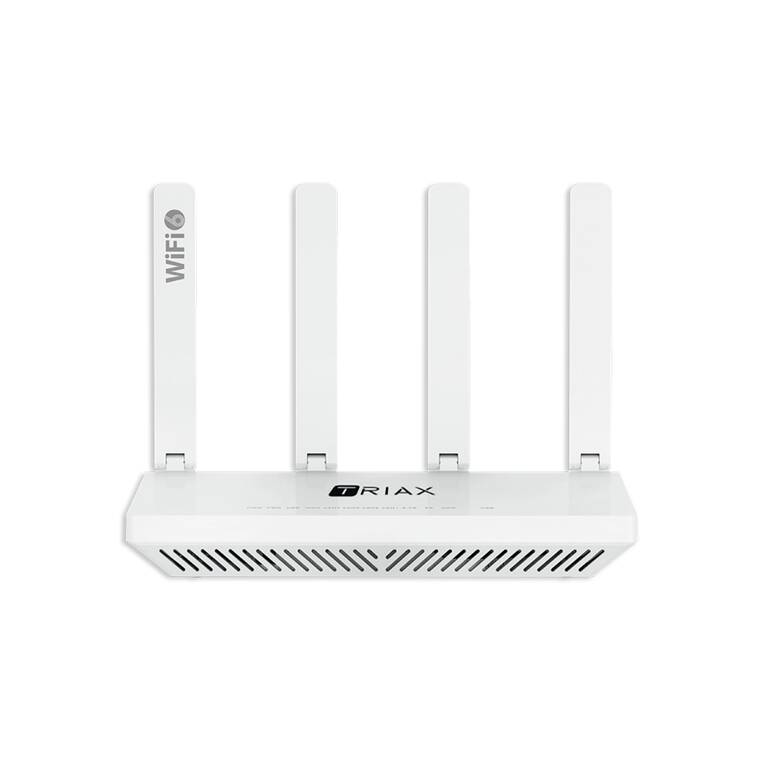

TRIAX TONT-4600A XPON Wi-Fi 6 ONT

• 1 XPON port (EPON PX20+ and GPON Class B+)
• SC single mode, SC/UPC optical connector
• Optical transmit power: 0 to +4 dBm
• Receiver sensitivity: -27 dBm
• Optical overload power: -3 dBm (EPON) or -8 dBm (GPON)
• Transmission distance: 20 km
• Wavelength: Tx 1310 nm, Rx 1490 nm

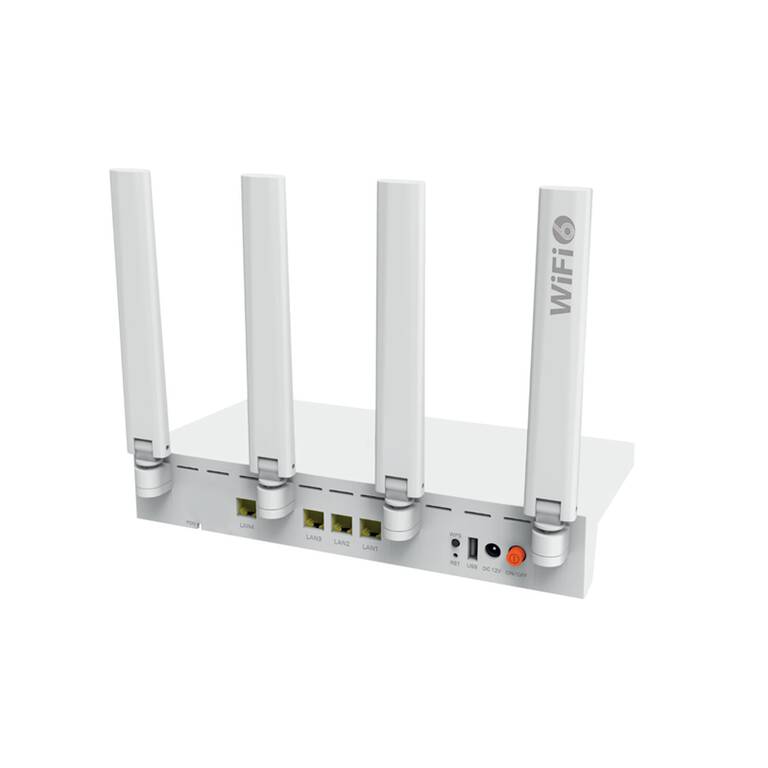

• 4 Gigabit Ethernet RJ45 ports with auto-negotiation
• 1 USB 3.0 interface for shared storage or printer
• 4 external antennas and 1 internal antenna

Wireless and Network Features

• Wi-Fi 6: IEEE 802.11a/n/ac/ax (5 GHz)
• Wi-Fi 6: IEEE 802.11g/b/n/ax (2.4 GHz)
• Wireless speed up to 3 Gbps
• WPA, WPA2 and WPA3 encryption
• OFDMA support
• MU-MIMO support
• Dynamic QoS support
• 1024-QAM support
• Smart Connect using a single SSID for both frequency bands

Network Features

• WEB, TELNET, OAM, OMCI and TR069 management
• Private OAM/OMCI protocol support
• Routing mode support
• IGMP v1/v2/v3 and IGMP Snooping
• MLD v1/v2 Snooping
• 802.1p CoS
• 802.1Q VLAN
• IPv4/IPv6 Dual Stack
• DHCP Client and DHCP Server
• PPPoE
• NAT
• DMZ
• DDNS
• Anti-DDOS protection
• ACL, MAC and URL based filtering

Technical Specifications

• Power supply: external AC-DC adapter, DC 12 V / 1.5 A
• Maximum power consumption: ≤18 W
• Indicators: PWR, PON, LOS, WAN, LAN1-LAN4, 2.4G, 5G, WPS, USB
• Interfaces: 1 XPON, 4 Gigabit Ethernet, 1 USB 3.0, Wi-Fi 6
• Operating temperature: -10 to +55 °C
• Operating humidity: 5-95%, non-condensing
• Storage temperature: -40 to +70 °C
• Storage humidity: 5-95%, non-condensing
• Dimensions: 260.4 × 157.4 × 45.8 mm
• Net weight: 0.55 kg
• Included accessory: AC-DC power adapter, DC 12 V / 1.5 A

The device supports operation in accordance with IEEE802.3ah and ITU-T G.984 standards.
