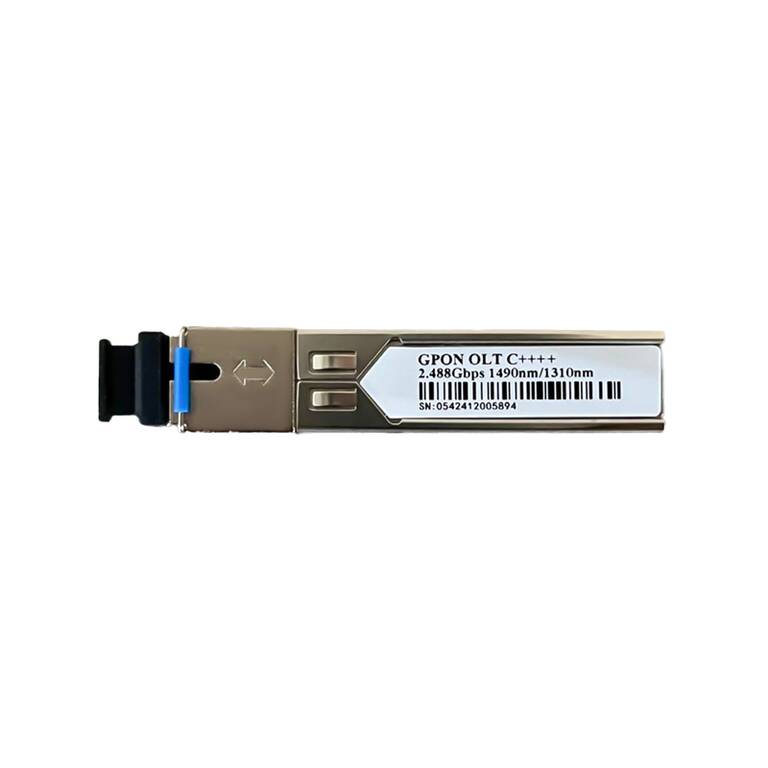

Triax TOLT-SFP GPON OLT SFP Optical Transceiver Module
Key features of Triax TOLT-SFP GPON OLT SFP Optical Transceiver Module
• GPON OLT SFP optical transceiver with SC/PC connector
• Optical wavelength: Tx 1490 nm, Rx 1310 nm
• Data rate: Tx 2488 Mbps, Rx 1244 Mbps
• Maximum transmission distance: 20 km
• Compliant with ITU-T G984.2 Amendment 1
• Digital diagnostics compliant with SFF-8472
• Operating case temperature: 0-70 °C
• Compliant with the RoHS directive
Further details of Triax TOLT-SFP GPON OLT SFP Optical Transceiver Module
The TRIAX TOLT-SFP GPON OLT SFP optical transceiver module is designed for GPON OLT applications. It features an SC/PC optical connector and operates with a 1490 nm transmit wavelength and a 1310 nm receive wavelength, supporting transmission distances of up to 20 km.
TRIAX TOLT-SFP GPON OLT SFP Optical Transceiver Module
• SFP GPON OLT optical transceiver module
• SC/PC optical connector
• 1490 nm DFB transmitter with isolator
• 1310 nm APD receiver
• Continuous transmission data rate: 2488 Mbps
• Burst mode receiver data rate: 1244 Mbps
• RX Fast Burst Mode Detection
• Fast RSSI function
• Class D+ link budget
• Operating case temperature: 0-70 °C
• Digital diagnostics compliant with SFF-8472
• Compliant with ITU-T G984.2 Amendment 1
• Compliant with the RoHS directive
Technical Specifications
• Product type: GPON OLT SFP optical transceiver module
• Article number: 308600
• Transmission distance: 20 km
• Transmit data rate: 2.488 Gbps
• Receive data rate: 1.244 Gbps
• Optical connector: SC receptacle
• Optical output power: Po > 8 dBm
