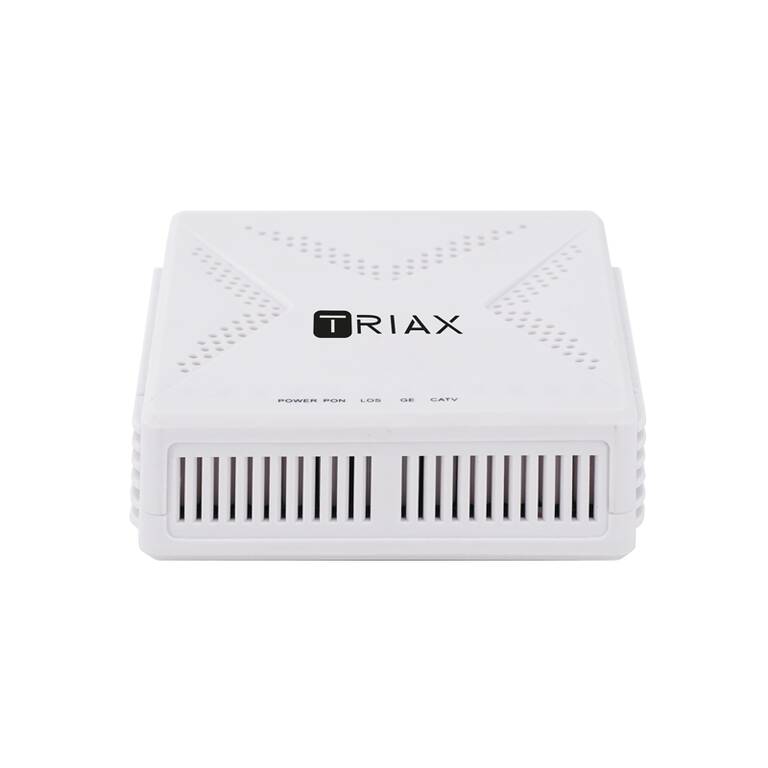

Triax TONU-1010 XPON GE ONU with CATV Optical Network Unit

Further details of Triax TONU-1010 XPON GE ONU with CATV Optical Network Unit

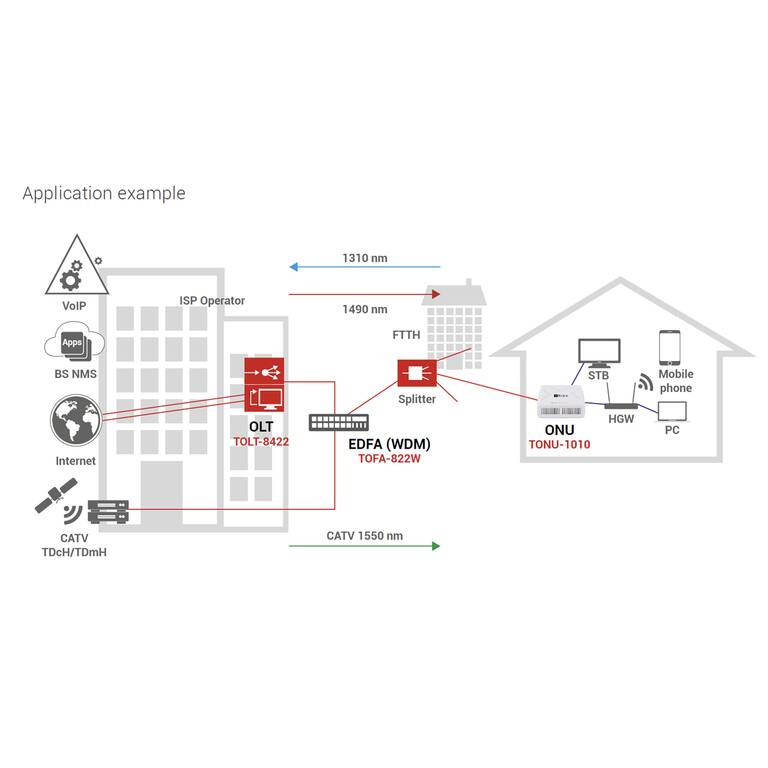

The TRIAX TONU-1010 XPON GE ONU + CATV optical network unit features an integrated CATV output and is designed for FTTO, FTTD, FTTH, SOHO broadband access and video surveillance applications. The unit is based on a high-performance chipset and supports Layer 2 and Layer 3 functions for carrier-grade FTTH services.

TRIAX TONU-1010 XPON GE ONU + CATV

• XPON Dual Mode with automatic EPON and GPON access
• Routing and Bridging mode
• Remote CATV control with AGC
• 1 XPON optical port (EPON PX20+ and GPON Class B+)
• SC single mode, SC/APC connector
• Optical transmit power: 0 to +4 dBm
• Receiver sensitivity: -27 dBm
• Optical overload power: -3 dBm (EPON) or -8 dBm (GPON)
• Transmission distance: 20 km
• Wavelength: Tx 1310 nm, Rx 1490 nm, CATV 1550 nm
• 1 Gigabit Ethernet RJ45 port with auto-negotiation

CATV Interface

• RF optical input power: +2 to -18 dBm
• Optical receive wavelength: 1550 ±10 nm
• RF frequency range: 47-1000 MHz
• RF output impedance: 75 Ohm
• RF output level: ≥70 dBuV (0 to -15 dBm optical input)
• AGC range: 0 to -15 dBm
• MER: ≥32 dB (-14 dBm optical input)

Features

• XPON Dual Mode
• Bridging and Routing mode
• Compatible with most mainstream OLTs
• CATV remote management support
• CTC OAM 2.1 and 3.0 support
• ITUT984.x OMCI support
• 802.1D and 802.1ad bridging
• 802.1p CoS support
• 802.1Q VLAN support
• IPv4 support
• DHCP Client and DHCP Server support
• PPPoE, NAT, DMZ and DDNS support
• IGMP v2, IGMP v3 and IGMP Snooping support
• Rogue ONU prevention
• DDOS protection with ACL, MAC and URL filtering
• EMS, WEB, Telnet and CLI management support

Technical Specifications

• Power supply: external AC-DC adapter, DC 12 V / 0.5 A
• Maximum power consumption: less than 4 W
• Indicators: SYS, LINK/ACT, REG

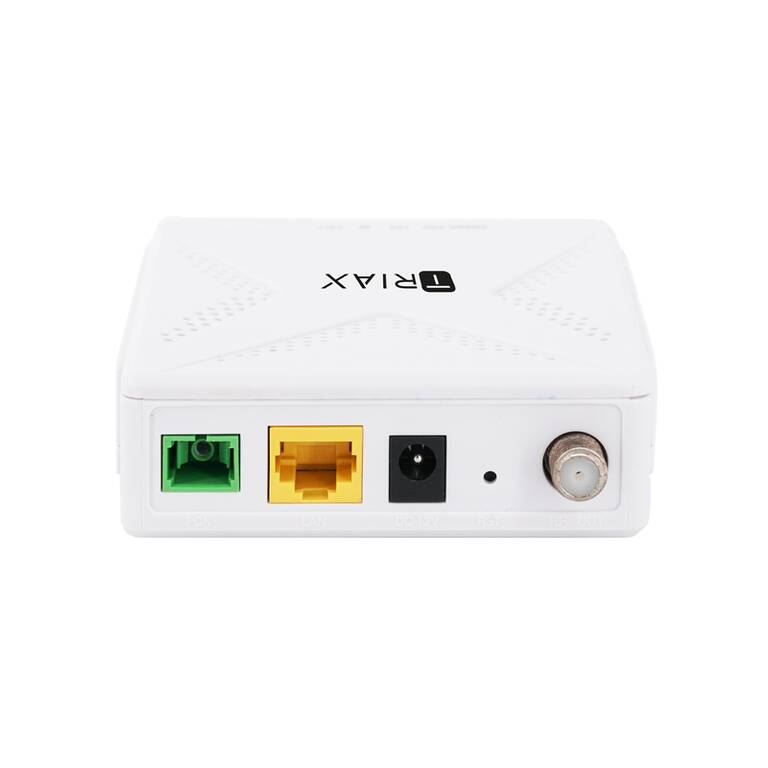

• Interfaces: 1GE + CATV
• Operating temperature: -10 to +55 °C
• Operating humidity: 5-95%, non-condensing
• Storage temperature: -40 to +70 °C
• Storage humidity: 5-95%, non-condensing
• Dimensions: 100 × 92 × 30 mm
• Net weight: 0.140 kg
• Included accessory: AC-DC power adapter, DC 12 V / 0.5 A

The unit complies with IEEE802.3ah and ITU-T G.984 international technical standards.
