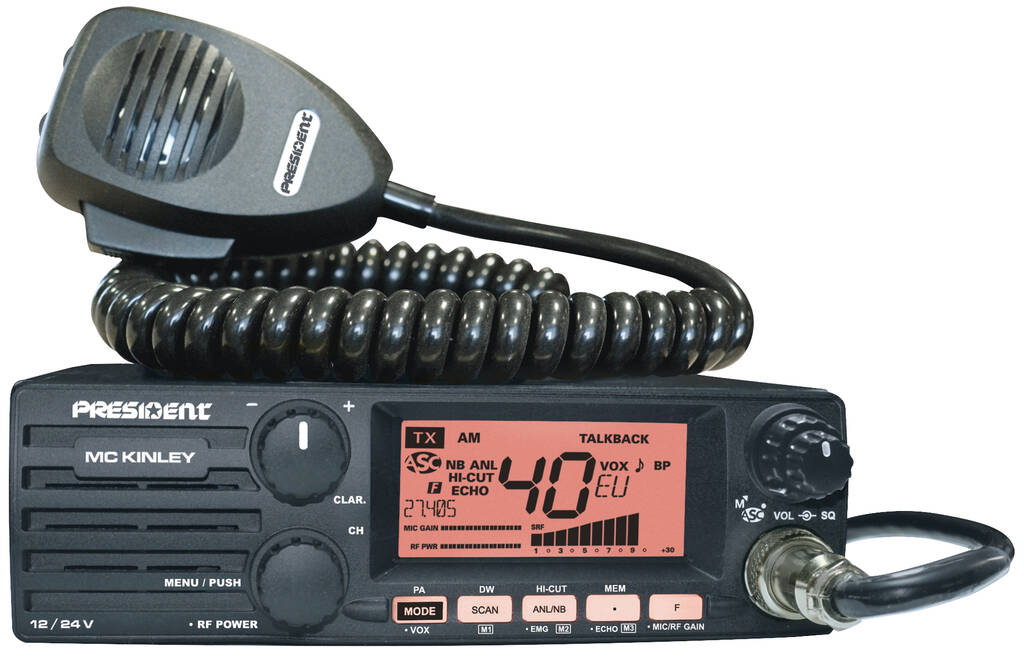

President MC KINLEY AM/FM/SSB Citizen Band Radio

Further details of President MC KINLEY AM/FM/SSB Citizen Band Radio

• Included accessories: 1 UP/DOWN microphone and holder, 1 mounting bracket with mounting screws, power cable with fuse
• Multi-configuration: EU / U / D / PL / IN
• Number of channels: 40
• External Vox microphone connector
• External speaker connector
• Loudspeaker
• Display: LCD multifunction
• Channel display
• Frequency display
• S-meter: digital
• Modulation modes: AM / FM / USB / LSB
• Volume control and ON/OFF
• Manual squelch
• ASC
• Mode selector
• F / Menu function button
• Repeater / Relay (D band only)
• Key tone
• Roger tone
• Tone setting
• RF power
• RF gain
• Microphone gain
• Echo
• Vox
• Automatic SWR meter
• SWR (power display / SWR)
• Echo
• TOT
• Filter ANL, filter NB, filter HI-CUT
• Frequency tolerance: 200 Hz
• Carrier power: 4 W (AM/FM) / 12 W PEP (USB/LSB)
• Audio response: 300 Hz – 3 kHz
• Microphone sensitivity: 3 mV
• Maximum sensitivity at 20 dB sinad: 0.5 μV -113 dBm (AM) / 0.35 μV -116 dBm (FM) / 0.28 µV -118 dBm (USB LSB)
• Frequency response: 300 Hz – 3 kHz
• Adjacent channel selectivity: 60 dB
• Maximum audio power: 3 W
• Squelch sensitivity: min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
• Frequency image rejection ratio: 60 dB
• Intermediate frequency rejection ratio: 70 dB
• Drain: max. 400 ~ 1000 mAh max.
