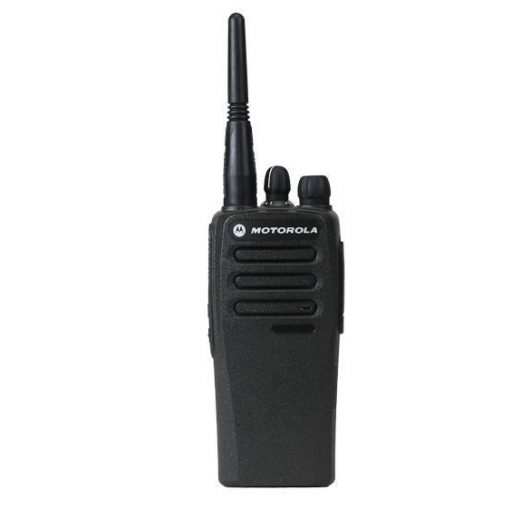

Motorola MotoTRBO DP1400 VHF Two-Way Handheld Radio (analogue) (discontinued)

MOT-251-999
Motorola MotoTRBO DP1400 VHF Two-Way Handheld Radio (analogue)

Key features of Motorola MotoTRBO DP1400 VHF Two-Way Handheld Radio (analogue)

鈥 Frequency coverage: 136-174MHz
鈥 16 programmable channels (with R2.10.5 firmware the radio is able to handle 32 channels)
鈥 2 programmable option buttons
鈥 Aluminium chassis and policarbonate plastic case
鈥 Built-in CTCSS, DTCS coder and encoder, DTMF autodial
鈥 Maximum 5W RF output power
鈥 Confirms with IP54 standard (dust-protection and water resistant)
鈥 Equivalent to MIL-STD 810 C, D, E, F and G requirements
鈥 Analogue radio which can be upgraded to digital mode with licence key
鈥 The radio can be ordered with out charger, but the price of this article contains this!
鈥 The price includes 29
00mAh Li-ion battery!

This product is not available.
Possible reasons that the product is not available from the manufacturer anymore or we decided to remove it from our product portfolio. We gladly help you to find the best optional product instead of this type, please contact us.

Further details of Motorola MotoTRBO DP1400 VHF Two-Way Handheld Radio (analogue)

鈥 The operating time reaches up to 14.5 hours in analogue mode and 18.5 hours in digital with the supplied PMNN4258AR 2900mAh Li-ion battery. (Tx: 5%; Rx:5%; Stand by:90%)
鈥 The DP series radios have aluminium chassis and policarbonate plastic case which guarantee high durability even in harsh environment. The new battery holding provides more secure fixation.
鈥 Easy to use due to the three main control buttons only. Tough and textured transmit button, chunky rotary channel and volume knobs.
鈥 Additional 2 programmable function buttons can be set to give immediate access to the most often used features making communication even simplier.
鈥 The tricolour LED lamp provides feedback for the user about the operation. (starting transmission, channel selection, etc.)
鈥 Maximum 16 channels can be programmed into radio.
鈥 Built-in CTCSS, DTCS coder/encoder and DTMF autodial.
鈥 Channel spacing: 12.5/20/25Khz; PLL channel step: 2.5, 3.125Khz (VHF); 5, 6.25Khz (UHF)
鈥 Automatic power save function
鈥 Sound and light (LED) indication in case of low battery alert
鈥 Shows the battery level for programmed button
鈥 Adjustable squelch level
鈥 Adjustable RF output power (1 / 5 W)
鈥 Digital Emergency via programmable button to help ensure rapid response to critical incidents
鈥 PTT ID helps improve communications efficiency and system discipline
鈥 Elegant channel scanning schemes help ensure calls are received first time every time
鈥 Integrated VOX function for hands-free operation which can be set by predefined programmable button
鈥 When the Lone Worker function is turned ON, and no operation is performed for the specified time period*, the transceiver enters the emergency mode, and then the countdown for the emergency call transmission starts. After the specified time period* has passed, an emergency call is automatically transmitted once, or repeatedly*. (*Depending on the presetting.)
鈥 Voice announcement of channel change and feature activation
鈥 Programmable Text Messaging Capability
鈥 Time-out-timer (TOT): The time-out timer limits continuous transmission time period to prevent accidental prolonged transmission.
鈥 500mW audio output power
鈥 The digital AGC (Automatic Gain Control) intelligently change the microphone gain to boost the volume
鈥 Excellent audio quality due to the built-in digital noise-cancelling software
鈥 Equivalent to MIL-STD 810 C, D, E, F and G requirements
鈥 Electronic serial number
鈥 Basic analogue inversion type encryption


This article refers to a basically analogue mode radio. With the optional licene key the digital mode can be activated and all of its extra feautres. Functions with the optional software licences:
鈥 Analogue to digital upgarde software licence key (HKVN4204A Analogue to Digital Upgrade Software - Licence Key)
Additional extre feautres in digital mode:
鈥 Basic privacy (only in digital mode!)
鈥 Transmit interrupt - decode only (only in digital mode!)
鈥 DMR (Digital Mobile Radio) standards compliant (only in digital mode!)
鈥 Longer operating time due to less battery drain, extended area coverage, double channel capacity in the same spectrum
