Icom OPC-2338-1 Programming Cable

Further details of Icom OPC-2338-1 Programming Cable

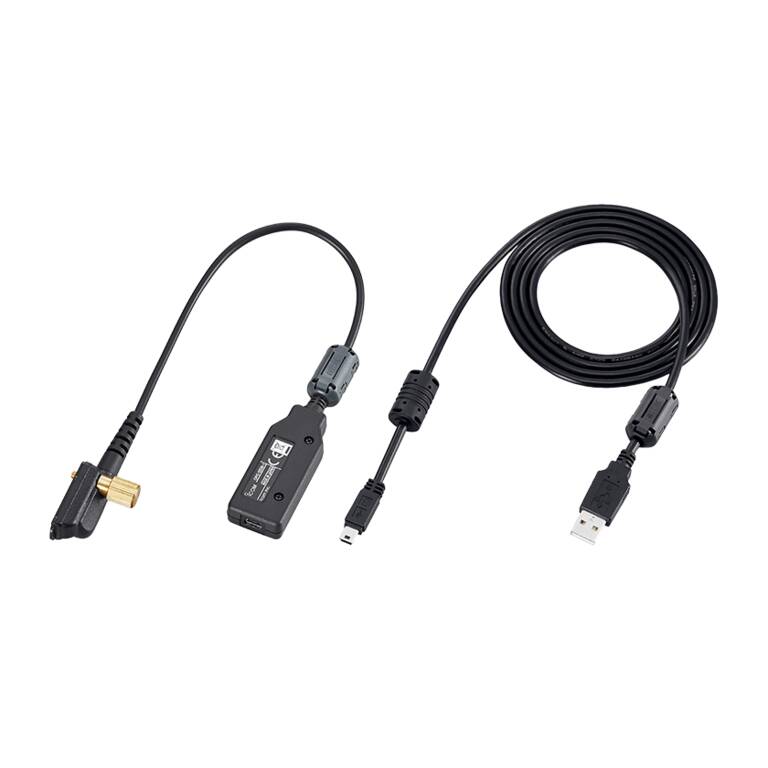

The Icom OPC-2338-1 programming cable is designed to connect an Icom transceiver or receiver to a personal computer for data programming using Icom programming software.

Specifications

• Cable length: 250 mm
• Weight: 57 g
• Operating temperature: -10 °C to +60 °C

System Requirements

• Microsoft Windows 11 64-bit
• Microsoft Windows 10 32-bit / 64-bit
• Microsoft Windows 8.1 32-bit / 64-bit (excluding Windows RT)
• USB 1.1 or USB 2.0 port
• Internet connection required for USB driver installation

Operating Notes

• Use the supplied USB cable
• Do not extend the USB cable
• Connect directly to a PC USB port or a self-powered USB hub
• Approximately 20 mA current is required
• Select the assigned COM port in the programming software

Supplied Accessories

• OPC-2338-1 programming cable
• OPC-1637 USB cable (Mini USB Type-B to USB Type-A)
• Ferrite EMI filter

After the USB driver installation, the programming cable is recognized as a COM port in Windows Device Manager. The assigned COM port must be selected in the Icom programming software.
