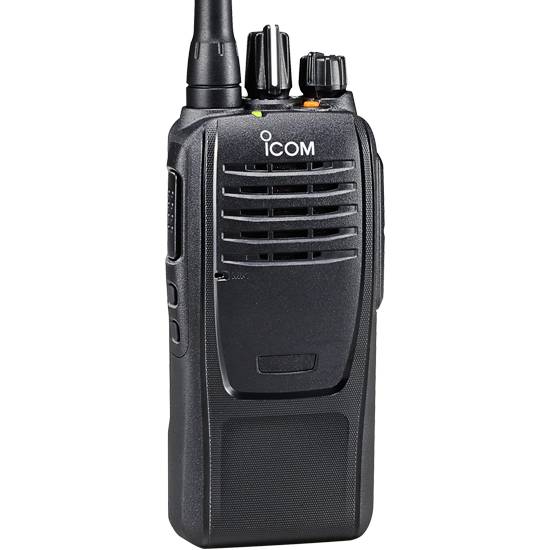

Icom IC-F2100D UHF Digital Two-Way Handheld Transceiver Radio

Further details of Icom IC-F2100D UHF Digital Two-Way Handheld Transceiver Radio

• The IC-F1100D and IC-F2100D IDAS digital handheld units improve on the past performance of the IC-F1000D and IC-F2000D as well as setting a new standard in digital communication. This model continues Icom’s reputation for high power audio clarity with a leading edge 1500 mW speaker. These compact handheld radios are also waterproof, dustproof and come with a long lasting battery for those times when communication matters. The digital handheld units are available in three designs which are Simple version with no display or keypad (IC-F1100D & IC-F2100D), simple keypad and display version (IC-F1100DS & IC-F2100DS) and Full keypad and display version (IC-F1100DT & IC-F2100DT)
• Icom’s custom high power handling capacity speaker for 1500 mW of powerful audio
• Compact, waterproof durable design (IP67/55/54 and MIL-STD-810-G)
• Multiple operating modes (Available protocol differs depending on version)
- Analog FM
- NXDN/dPMR conventional
- NXDN Type-D single-site trunking
• Over-the-Air Alias (OAA) function displays the caller’s name without programming (IC-F1100DT/DS and IC-F2100DT/DS only)
• Motion/Stationary detection, Man Down and Lone Worker functions
• Operating time of up to 18 hours with the BP-280
• General Features
- 136–174, 350–400, 400–470, 450–512, 450–520 MHz versions
- 128 Channels / 8 Zones (for LCD types)
- 16 Channels (for non-display types)-
- Icom’s customized speaker offers a louder 1500 mW audio output
- An engineered casing that amplifies and improves acoustic sound clarity
- Compact (52.2 (W) × 111.8 (H) mm; 2.1 × 4.4 in) and lightweight
- IP67/55/54 waterproof and dust-tight protection
- Tested to 12 categories of MIL-STD-810-G environmental tests
- AquaQuake – Expels water ingress from the speaker grill
- DTMF autodial memories
- 16-position rotary selector and ON/OFF volume knob
- Programmable keys – Increase the number of programmable key assignments by using the “Shift key”
- Operating times of up to 18 hours (with the supplied BP-280 battery pack)
- Eight character alphanumeric display (for LCD types)
- Three color LED
• Digital Functions (Voice and Data):
- AMBE+2 vocoder
- Over-the-Air Alias (OAA) displays the caller’s name without programming (for LCD types)
- Individual, Group and All call
- Late entry for Group call
- Status call and Polling
- Short data messages (for LCD types)
- Call alert (NXDN)
- Radio check (RX only) (NXDN)
- GPS position capabilities (requires HM-171GPW)
- Up to 500 ID numbers for IDAS or MDC 1200 signaling system can be saved in the Call List to show the alias name
• Analog Functions:
- CTCSS and DTCS tone
- Tone and 5-Tone
- MDC functions*; PTT ID, Emergency (TX/RX), Radio check (RX), Stun (RX), Revive (RX) (* Depending on version)
- BIIS PTT ID transmission
• Safety and Security:
- Digital voice scrambler (Low level encryption)
- Radio Stun/Revive/Kill (RX only)
- Remote monitor (NXDN)/ambience listening (dPMR)
- Man down, Lone worker and Emergency call key capability
- Motion and Stationary detection function
- Surveillance function temporarily turns OFF the beep and LED indicator
- Power ON password (for LCD types)
• Scan Functions:
- Priority scan monitors one or two priority channels while scanning non-priority channels
- Voting scan automatically selects the optimal repeater site
- Mode dependent scan automatically changes the scan list, depending on the operating channel
- Power ON scan function
- Talk Back timer
• Voice/Audio Functions:
- Channel announcement function
- VOX function for hands-free operation
- Siren sound for security alarm
