Telegartner BNC Plug Crimp Connector RG-58 Heavy Duty J01000A0076

Further details of Telegartner BNC Plug Crimp Connector RG-58 Heavy Duty J01000A0076

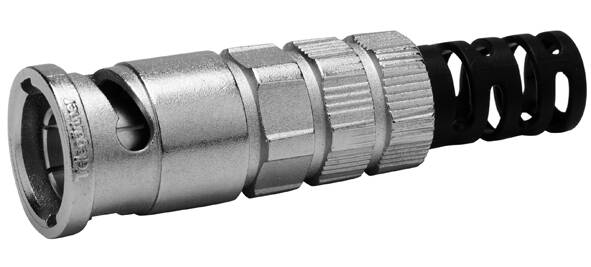

The Telegärtner J01000A0076 is a straight BNC crimp cable connector with a Heavy Duty 2:1 design.

Telegärtner J01000A0076 BNC Straight Crimp Cable Connector

• Connector type: BNC Straight Plug Heavy Duty 2:1
• Connector interface: IEC 61169-8
• Installation method: crimp
• Inner conductor installation: crimp
• Outer conductor installation: crimp
• Impedance: 50 ohms
• Return loss: typically 20 dB at 3 GHz
• Operating voltage: up to 0.5 kVrms / 50 Hz
• Test voltage: 1.5 kVrms / 50 Hz
• Insulation resistance: at least 5 Gohm
• Internal contact contact resistance: up to 20 mohm
• External contact contact resistance: up to 5 mohm
• Number of mating cycles: more than 500
• Operating temperature: -65 °C...+165 °C
• Protection rating: IP67 (IEC 60529)
• RoHS compliance: 2011/65/EU

Cable compatibility

• Cable group: G1 (RG-58C/U)
• Belden 7806A
• Belden 9907
• KX15
• Andrew CNT-195
• TMS LMR-195
• Harbour Industries HPF 195
• RG-58C/U
• NEK/CD WCX 195

Construction and Materials

• Inner contact material: CuZn39Pb3, with Cu1Ni2Au0.8 surface treatment
• Outer contact material: CuZn39Pb3, Cu2Ni5 with surface treatment
• Other metal components: GD-ZnAl4Cu1, Zn/Cu6Ni6 with surface treatment
• Crimp sleeve: SF Cu, Ni5 with surface treatment
• Insulation: PTFE
• Seal: silicone

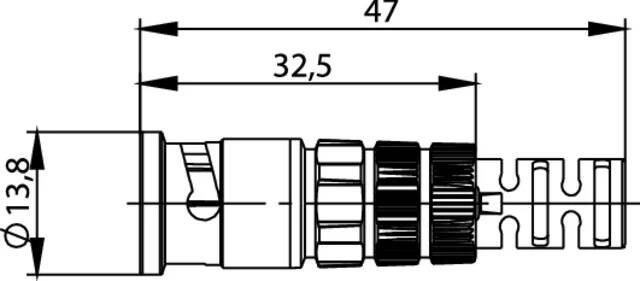

The connector is equipped with an adhesive heat-shrink tube. The length of the adhesive heat-shrink tube is approximately 6 mm; the total length of the connector is 47 mm, and its weight is 12.7 g.
