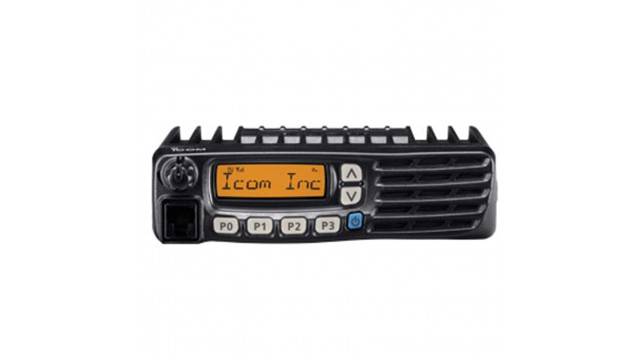

Icom IC-F5022 VHF Mobile Two-Way Transceiver Radio

ICOM-515-999
Icom IC-F5022 VHF Mobile Two-Way Transceiver Radio

Key features of Icom IC-F5022 VHF Mobile Two-Way Transceiver Radio

• Frequency coverage: 136-174MHz
• 8-character LCD display
• 128 programmable channels, 8 channel groups
• 6 programmable buttons
• 4W front mounted speaker
• Built-in SEL 2/5, CTCSS, DTCS coder and encoder, DTMF autodial
• Maximum 25W RF output power
• Equivalent to MIL-STD 810 C, D, E, and F requirements
• Depending on the version it has SO-239 or BNC female antenna connector

Gross price (including 27% VAT): 267.85€ (Net price: 210.90€)
Add to Cart Price Watch
You can ask for e-mail price notifications when the price of this product gets under a limit you specify. To use this feature you need to have a user account and to be signed in.

Further details of Icom IC-F5022 VHF Mobile Two-Way Transceiver Radio

• The tough aluminum die-cast chassis and polycarbonate front panel have been tested to the MIL standard 810F. With this heavy-duty construction, the IC-F5022 series provides reliable operation over the long term in all manners of rugged environments.
• A pair of up/down and P0-P3 programmable buttons allow you to customise the functions to meet specific needs. An independent volume knob offers simple, convenient operation.
• 128 channels (Max.) separated into 8 memory zones. Memory channels can be identified with the 8-character channel name and selected easily with the up/down buttons.
• Built-in SEL 2/5, CTCSS, DTCS coder/encoder and DTMF autodial. DTMF decoding and automatic number identification (ANI) are available with the optional UT-108R DTMF decoder
• The integrated SEL5 code transmitter and receiver allows selective identification and calling.
• The 5-Tone signalling (encoder/decoder) gives you selective calling, quiet stand-by and other convenient functions with programming. The radio kill/stun functions disable a lost or stolen radio over the air, eliminating security threats from undesired listeners. When the stun command is received, all functions will be temporary locked out until the revive command is received or the unlock password is entered.
• Channel spacing: 12.5/20/25Khz; PLL channel step: 2.5, 3.125Khz (VHF); 5, 6.25Khz (UHF)
• Limited MDC 1200 features and compatibility
• Optional voice scramble unit (UT-109R; UT-110R)
• Microphone hanger action programmable
• Power ON password
• With the optional OPC-1939 D-SUB 15- pin ACC cable, the IC-F5022 series can be programmed to control an operating channel from an external device (up to 16 preprogrammed channels). The ACC connector also provides an ignition sensing function, external PTT, PC command, horn honk, audio output and modulated signal input depending on programming.
• New scanning features have been added allowing migration from other radio brands.
- Mode dependent scan ... when the user changes the operating channel, the scanning list automatically changes following that channel setting.
- Priority scan allows you to monitor one or two priority channels while scanning other non-priority channels.
- Tx channel programmable ... The Tx channel is the channel the radio transmits when the user pushes the PTT button while scanning. The Tx channel can be programmable per scanning list from start, last detected, priority and pre-programmed channels.
- Talk back function ... allows you to transmit on the detected channel when scanning stops or soon after scanning resumes, prior to the Tx channel setting.
- Talk back timer beep ... alerts you of the end of the talk back time with a beep sound.
- Nuisance delete ... Users can temporary skip a busy channel from the scanning list.
- Monitor key action ...A user can stop a scan when pushing the monitor button)
• Time-out-timer (TOT): The time-out timer limits continuous transmission time period to prevent accidental prolonged transmission.
• When the Lone Worker function is turned ON, and no operation is performed for the specified time period*, the transceiver enters the emergency mode, and then the countdown for the emergency call transmission starts. After the specified time period* has passed, an emergency call is automatically transmitted once, or repeatedly*. (*Depending on the presetting.)
• Equivalent to MIL-STD 810 C, D, E, and F requirements

Standard Accessories of Icom IC-F5022 VHF Mobile Two-Way Transceiver Radio

Icom OPC-1194A 3 m DC Cable (discontinued)


This product is not available.
Possible reasons that the product is not available from the manufacturer anymore or we decided to remove it from our product portfolio. We gladly help you to find the best optional product instead of this type, please contact us.

Mounting Bracket

Mounting Bracket
