YShield K150 Shielding wallpaper (width 70 cm)

Further details of YShield K150 Shielding wallpaper (width 70 cm)

Properties

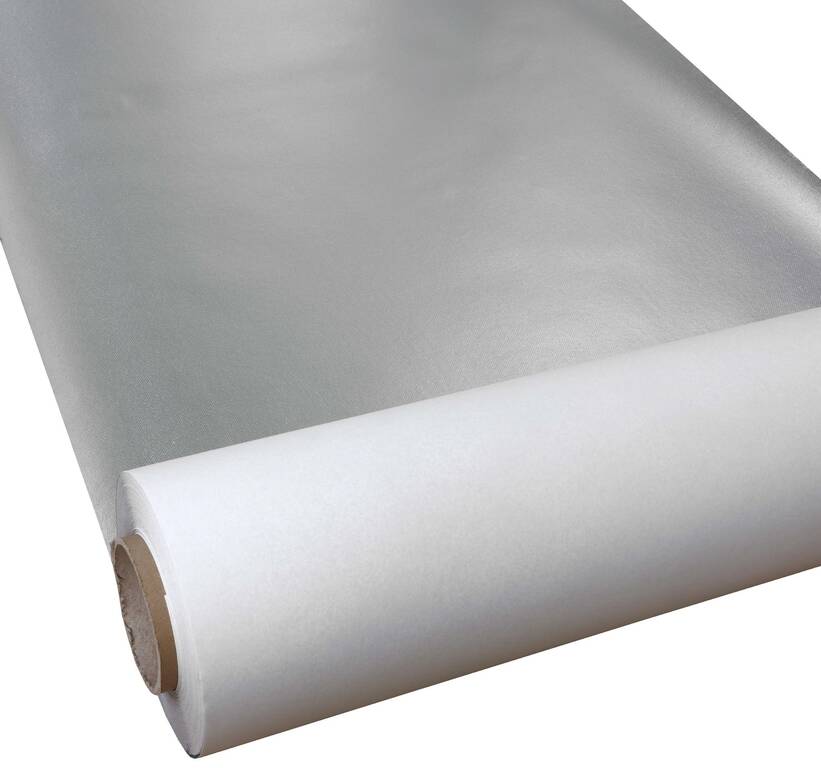

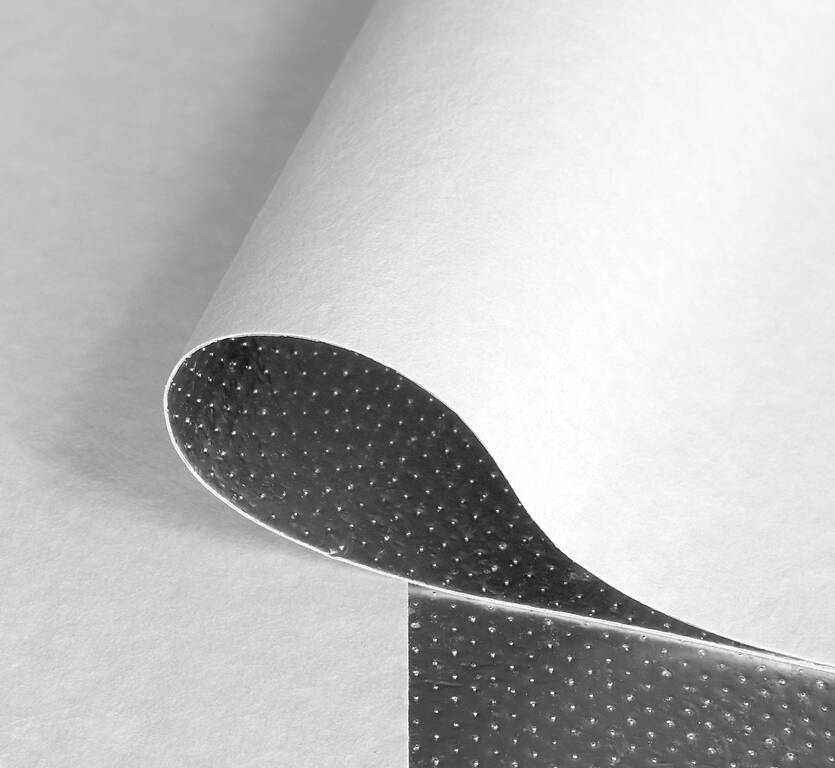

Our K150 shielding wallpaper is a thin, surface-stable wallpaper paper that is laminated on one side with a thin micro-needled aluminum foil. The micro-needling with 200,000 tiny holes per square meter makes the material highly permeable to water vapour. The micro-holes are so small that they have no effect on the shielding attenuation of sensationally high 100 dB. Produced in-house in Germany.

Application

Due to its good surface stability and moisture resistance, K150 can be used universally indoors in all conceivable applications. Only suitable for loose laying if the aluminum layer is protected against mechanical damage.

Processing

Substrate: Absorbent and chalky substrates must be pre-treated with our primer GK5. Bonding the aluminum side towards the room: Technically the best solution. All strips can be easily connected afterwards with the GSX earthing tape. Also the best solution with wallpaper replacement primer so that the wallpaper can be removed again if necessary. Bonding the white side towards the room: Visually the nicer solution that is also easy to rework. Adhesive: Adhesive for heavy wallpaper on the fleece side. Cellulose adhesive does not adhere to the aluminum side, we recommend our PSA adhesive, which creates a self-adhesive surface. Our aluminum products adhere very well when installed wet and dry. Edge on edge or overlapping: The sheets should be glued overlapping to achieve the best shielding result. Glue the overlap with our PSA adhesive. Finally, smooth with a fine putty. Alternatively, bond as usual, but this will result in minimal losses when shielding very high frequencies. Contact materials: Due to the aluminum layer, a neutral pH value of pH 4-9 must be ensured for all direct contact materials during processing.

Grounding

This product with an electrically conductive surface has to be integrated into the functional-equipotential bonding (FEB).

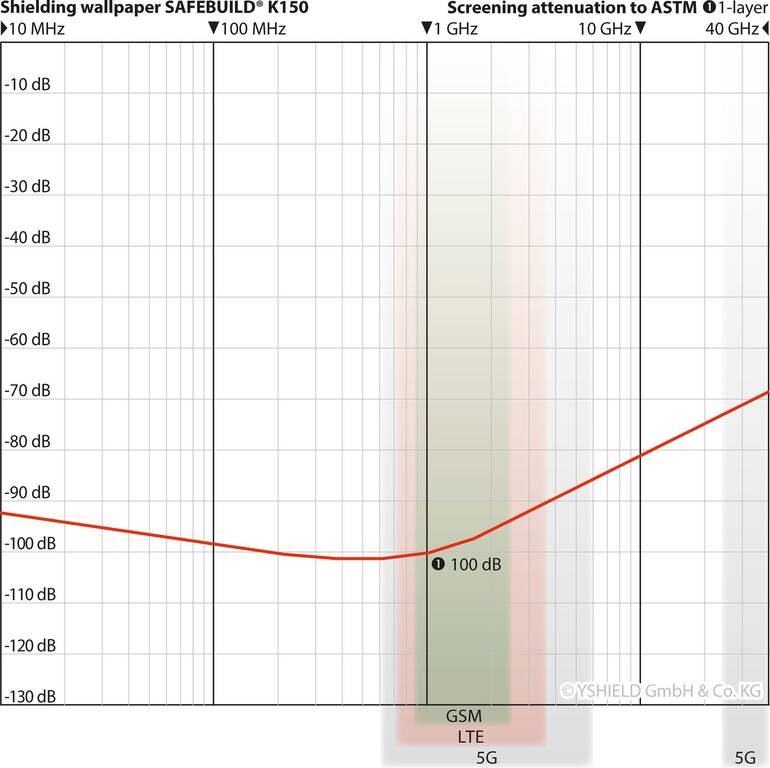

Shielding attenuation HF & LF

This product shields high frequency electromagnetic fields (HF). Unless otherwise stated, the indicated dB-values apply to 1 GHz. Measurement from 600 MHz to 40 GHz according to standards ASTM D4935-10 or IEEE Std 299-2006. This product with an electrically conductive surface shields low-frequency alternating electric fields (LF).

Laboratory & expert report of shielding attenuation up to 40 GHz

We have already invested in our own professional EMV laboratory years ago. We not only use it to create our laboratory screening reports but also to check each batch daily. Additionally, we have all our products checked by an independent, well-respected expert. Double checked for twice the safety.
