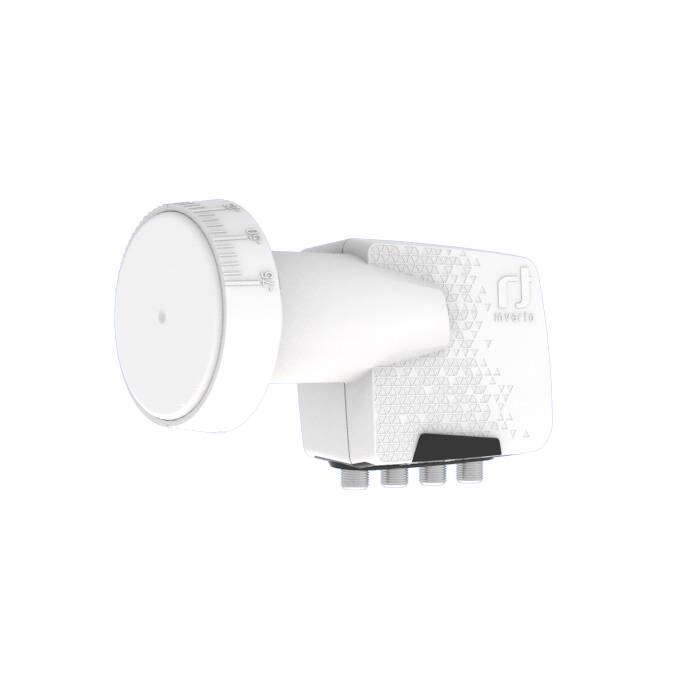

Inverto Home Pro Quattro Universal LNB Satellite Receiver Head

Further details of Inverto Home Pro Quattro Universal LNB Satellite Receiver Head

Specifically designed for the European DTH markets this LNB provides optimized reception capabilities and is designed to address the need to support multiple LNBs installations on a single dish antenna. The LNB enables the reception of signals from one satellite and its distribution via a Multiswitch to numerous Set-Top Boxes and is ready for High Definition transmissions and provides excellent Noise Figure performance. Manufactured to the highest industry quality standards and designed to meet strict specifications, this LNB is an ideal solution for the satellite broadcast reception across Europe.

• Noise figure: 0.3 dB tip (0.7 dB max)
• LO frequency accuracy at 25 °C: ±500 kHz max.
• LO temperature drift ±1.0 MHz max.
• LO phase noise at 10 kHz: -80 dBc/Hz max.
• Conversion gain: 55 dB min.
• Gain ripple (at 26 MHz bandwidth): ±0,75 dB
• Gain variation (full band): ±4 dB
• Image reflection: 40 dB min.
• 3rd order intermodulation - ICP3: 10 dBm min.
• 1 dB compression point (output): 0 dBm min.
• Cross polarisation isolation: 22 dB min.
• Output VSWR: 2.5 : 1
• In-band noise: -60 dBm max.
• Operating temperature: -30 °C ~ +60 °C
• Plate F/D ratio: 0.6
• Weight: 224 g
