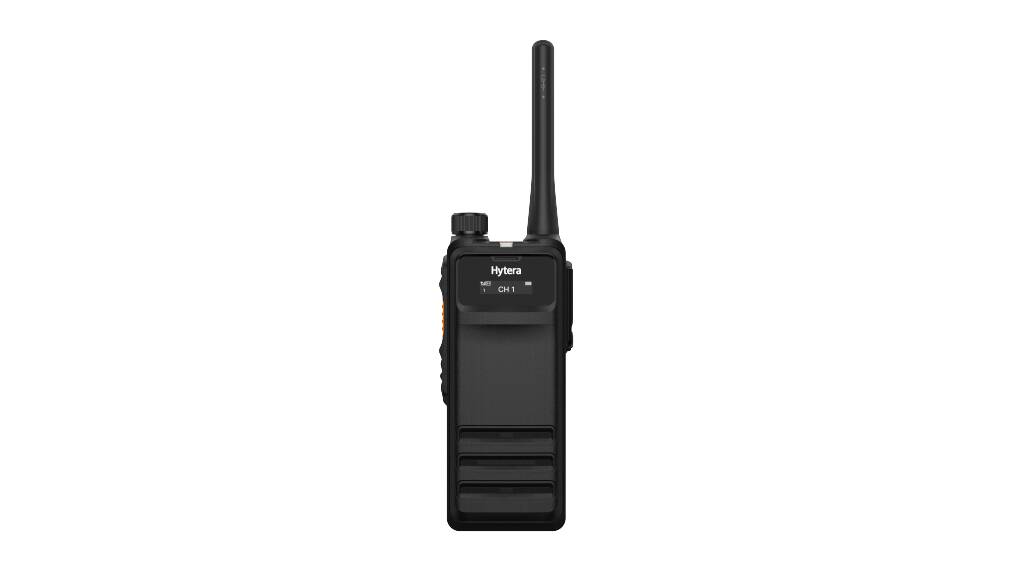

Hytera HP705 UHF 350-470 MHz DMR Portable Two-way Radio

Further details of Hytera HP705 UHF 350-470 MHz DMR Portable Two-way Radio

The Hytera HP705 is a DMR portable two-way radio operating in the UHF 350-470 MHz frequency range. With its optimized mechanical design and compact lithium-polymer battery, the radio is 29.5 mm thick and weighs 290 g with the 2400 mAh battery. The radio supports 1024 channels and 64 zones.

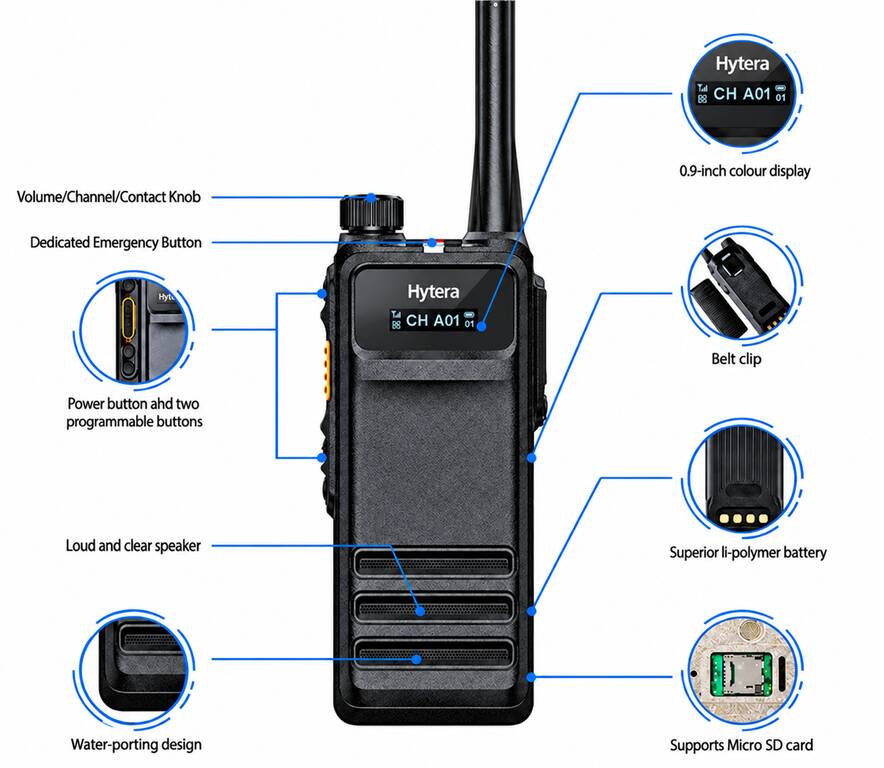

Hytera HP705 UHF 350-470 MHz audio technology

• Optimized powerful loudspeaker
• AI-based noise cancellation technology
• Up to 30 dB background noise and howling reduction
• Water-porting technology to drain water from the speaker cavity

The HP705 audio system is designed for use in noisy environments. Water-porting technology drains water that enters the speaker cavity, while AI-based noise cancellation technology decreases background noise and howling by up to 30 dB.

Hytera HP705 battery and operating time

• Rated operating voltage: 7.7 V
• Standard battery: 2400 mAh Li-polymer
• Optional battery: 3000 mAh Li-polymer
• 2400 mAh battery life with GNSS off: 24 hours
• 2400 mAh battery life with GNSS on: 20 hours
• 3000 mAh battery life with GNSS off: 30 hours
• 3000 mAh battery life with GNSS on: 25 hours
• Battery life figures apply to a 5/5/90 duty cycle at high TX power

The standard battery uses lithium-polymer technology. With a 5/5/90 duty cycle at high TX power, the 2400 mAh battery provides 24 hours of operating time with GNSS off and 20 hours with GNSS on.

Hytera HP705 wireless connectivity

• Built-in BT 5.0
• BT earpiece support
• BT Patrol support
• BT positioning support

The built-in BT 5.0 wireless connection supports low power consumption, rapid transmission, multiple devices, and data applications including BT earpiece, BT Patrol, and BT positioning.

Hytera HP705 UHF radio specifications

• Frequency range: UHF 350-470 MHz
• Channel capacity: 1024
• Zone capacity: 64
• Rated operating voltage: 7.7 V
• Display: 0.91-inch OLED
• BT: 5.0
• Dimensions with 2400 mAh battery: 132 x 55 x 29.5 mm
• Dimensions with 3000 mAh battery: 132 x 55 x 37.5 mm
• Weight with 2400 mAh battery: 290 g
• Weight with 3000 mAh battery: 325 g

Hytera HP705 IP68 environmental resistance

• Dust and water protection: IP68
• Water submersion: 2 m depth for 4 hours
• Drop resistance: 2 m onto concrete
• Operating temperature with 2000 mAh battery: -20 to +60 C
• Operating temperature with 3000 mAh battery: -30 to +60 C
• Storage temperature: -40 to +85 C

The HP705 has an IP68 rating. The radio is submersible to a depth of 2 m for 4 hours and is resistant to drops from a height of 2 m onto concrete.

Hytera HP705 standard accessories

• BP2403 2400 mAh Li-Poly Battery
• CH10L30 Smart Single Desktop Charger
• PS1018 Switching Power Adapter EU
• BC39 Spring Belt Clip
• RO03 Nylon Strap

Hytera HP705 optional accessories

• MCL32 Multi-unit Charger
• ACN-02 PTT&MIC cable
• EAN21 3-wire Surveillance Earpiece with Transparent Acoustic Tube
• EAN22 Detachable Earpiece with Transparent Acoustic Tube
• EAN24 2-wire Surveillance Earpiece with Transparent Acoustic Tube
• ECN21 Heavy duty Noise-cancelling Headset
• EHN21 Detachable C-Earset
• EH-01 Receive-Only C-Style Earloop
• EH-02 Swivel Style Earpiece, Receive-Only, 3.5 mm Audio Plug
• EHW08 BT earpiece
• ES-01 Receive-Only Earbud
• POA121 Ring PTT
• SM26N1-P Waterproof Remote Speaker Microphone, IP67
• SM26N2-P Waterproof Remote Speaker Microphone, IP54
• BRK20 Wall-mount Bracket
• PC152 Programming Data Cable, USB to 13-pin Connector
• AN0375H21 UHF antenna, 350-400 MHz/1575 MHz, 9 cm
• AN0435H26 UHF antenna, 400-470 MHz/1575 MHz, 9 cm
