Emos EM-030 Outdoor TV Antenna J0666
Key features of Emos EM-030 Outdoor TV Antenna J0666
• LTE/4G filter
• Reception: DAB/DVB-T/T2
• Frequency bands: VHF/DAB/UHF
• Frequency range: 170-790 MHz
• Reception angle: 30°/40°
• Horizontal and vertical polarization
• Connector type: F connector
• Suitable for Full HD broadcasts

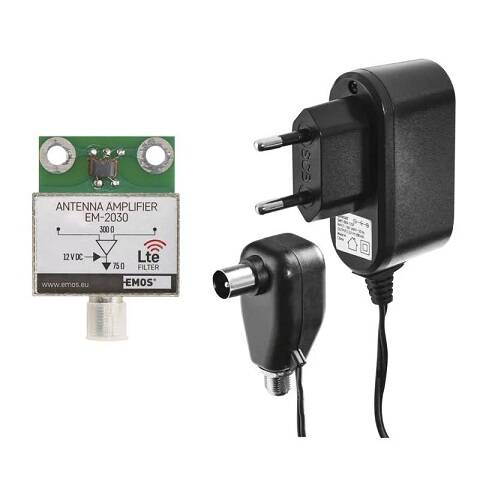

• Power supply: 12 V/100 mA (included)
• Output RF impedance: 75 Ohm
• Built-in low noise amplifier with separate power supply

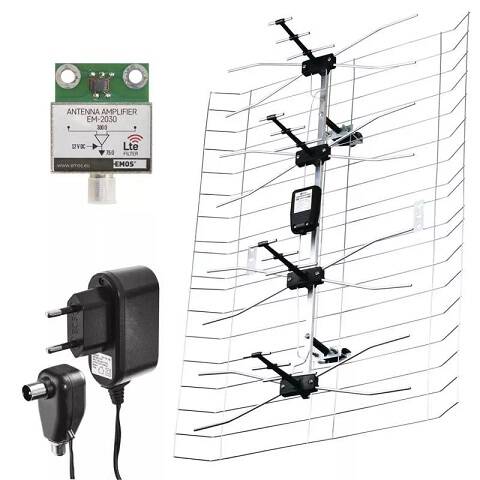

• Kit including antenna, preamplifier and power supply
• Recommended installation distance from TV tower 0-100 km (farm)
• Dimensions: 178 × 560 × 780 mm
Further details of Emos EM-030 Outdoor TV Antenna J0666
Warning:
Due to a long-term production stoppage, we had to temporarily replace the power supply in the antenna package.
Standard power supply: the power inverter is connected to an F-type connector.
Currently available power supply: the power switch is wired "under the screw". Both power supplies are functionally identical, the only difference is the way the coaxial cable is connected.
Reliable technology
The antenna design supports vertical and horizontal polarisation, signal reception in the 30°/40° range and is suitable for mounting on an antenna mast or bracket.
The wide angle of reception of the antenna allows simultaneous reception of multiple transmitters.
The antenna cable is connected via the classic F connector. Once connected, stations in the 170-790 MHz frequency range and in the VHF/DAB/UHF bands can be tuned.
Reliable technology
The antenna design supports vertical and horizontal polarisation, signal reception in the 30°/40° range and is suitable for mounting on an antenna mast or bracket.
The wide angle of reception of the antenna allows simultaneous reception of multiple transmitters.
The antenna cable is connected via the classic F connector. Once connected, stations in the 170-790 MHz frequency range and in the VHF/DAB/UHF bands can be tuned.
Reliable technology
The antenna design supports vertical and horizontal polarisation, signal reception in the 30°/40° range and is suitable for mounting on an antenna mast or bracket.
The wide angle of reception of the antenna allows simultaneous reception of multiple transmitters.
The antenna cable is connected via the classic F connector. Once connected, stations in the 170-790 MHz frequency range and in the VHF/DAB/UHF bands can be tuned.
