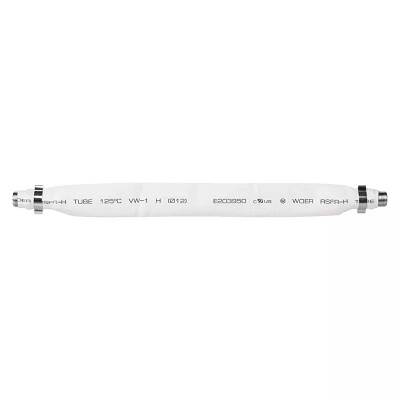

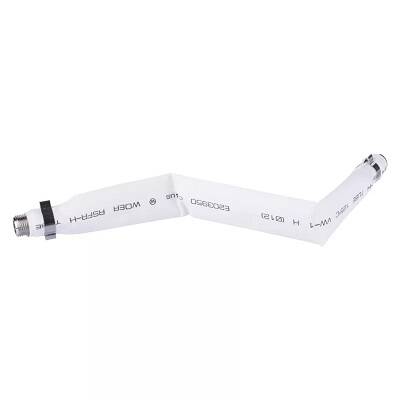

Emos Cable Through Window 3C2V 22cm S5378

EMO-132-999
Emos Cable Through Window 3C2V 22cm S5378
Emos Cable Through Window 3C2V 22cm S5378Emos Cable Through Window 3C2V 22cm S5378Emos Cable Through Window 3C2V 22cm S5378
Emos Cable Through Window 3C2V 22cm S5378
Emos Cable Through Window 3C2V 22cm S5378

Key features of Emos Cable Through Window 3C2V 22cm S5378

• Suitable for outdoor use
• Impedance: 75 Ohm
• Coaxial cable type: 3C2V
• UV resistant
• Cable sheath diameter: 3 mm
• Cable sheath colour: white
• Cable sheath material: PVC
• Inner wire diameter: 0,5 mm
• Inner wire material: copper (Cu)
• Shielding material: copper clad aluminium (CCA)
• Number of shields: 1

Gross price (including 27% VAT): 2.30€ (Net price: 1.81€)
Add to Cart Price Watch
You can ask for e-mail price notifications when the price of this product gets under a limit you specify. To use this feature you need to have a user account and to be signed in.
1 year(s) warranty
1 year(s) warranty

Further details of Emos Cable Through Window 3C2V 22cm S5378

• Capacity: (pF/m)53
• Shading: 28%
• Shielding diameter: 32× 0.12 mm²
• Number of shielding wires: 32× 0.12 mm
• Dielectric type, diameter: PE 1,6 mm
• Shortening factor: 0,81


Window bushing for the bushing of coaxial cables without drilling. A practical way to lay cables, quick and easy. The bushing is secured at both ends by a practical F-connector.
