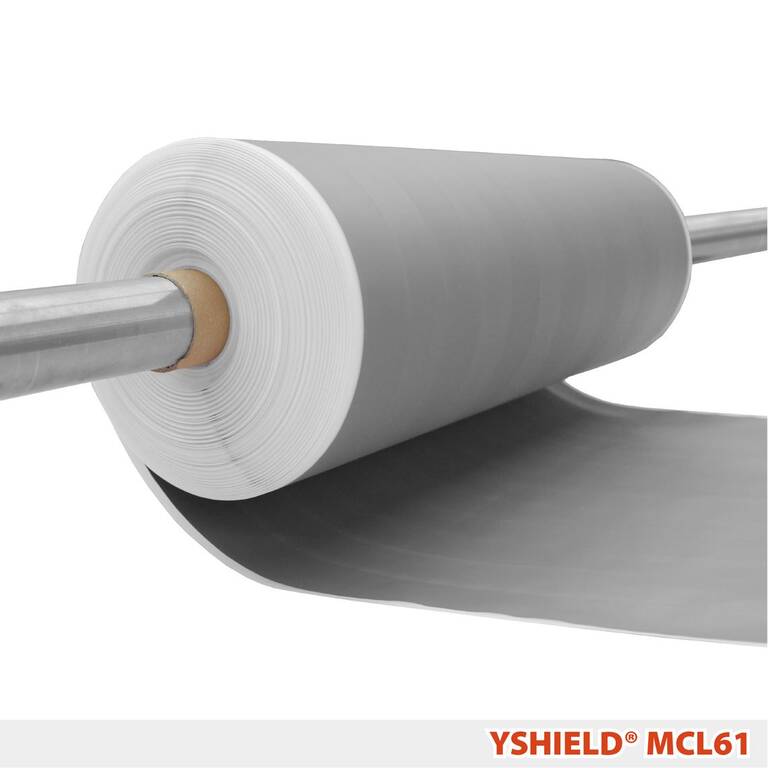

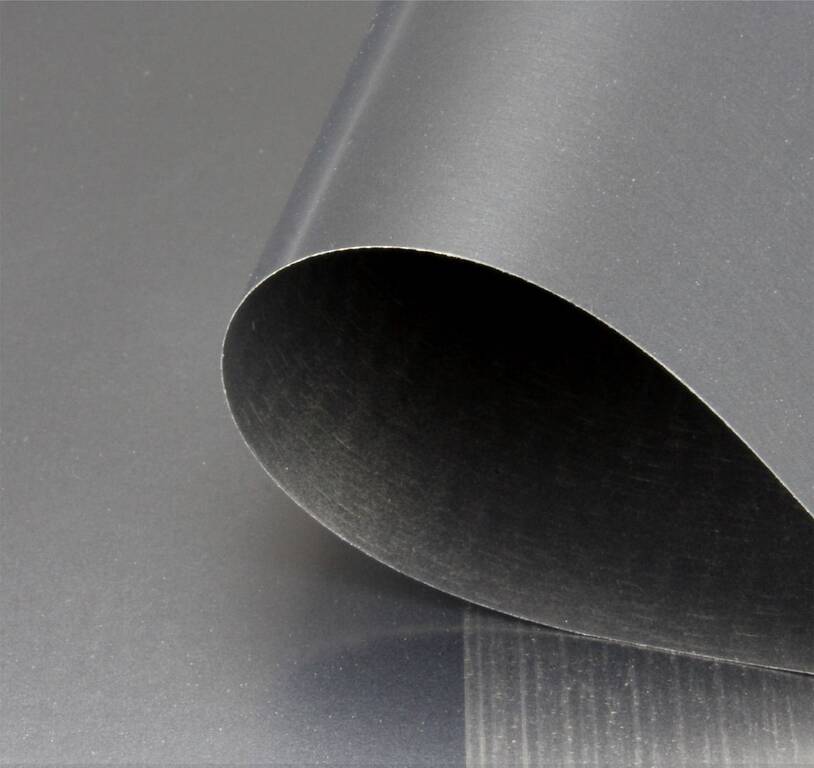

YShield MCL61 Magnetic shielding film (61 cm x 1 m)

Key features of YShield MCL61 Magnetic shielding film (61 cm x 1 m)

• to shield LF magnetic fields with 30 dB attenuation = 97 %
• Width: 61 cm

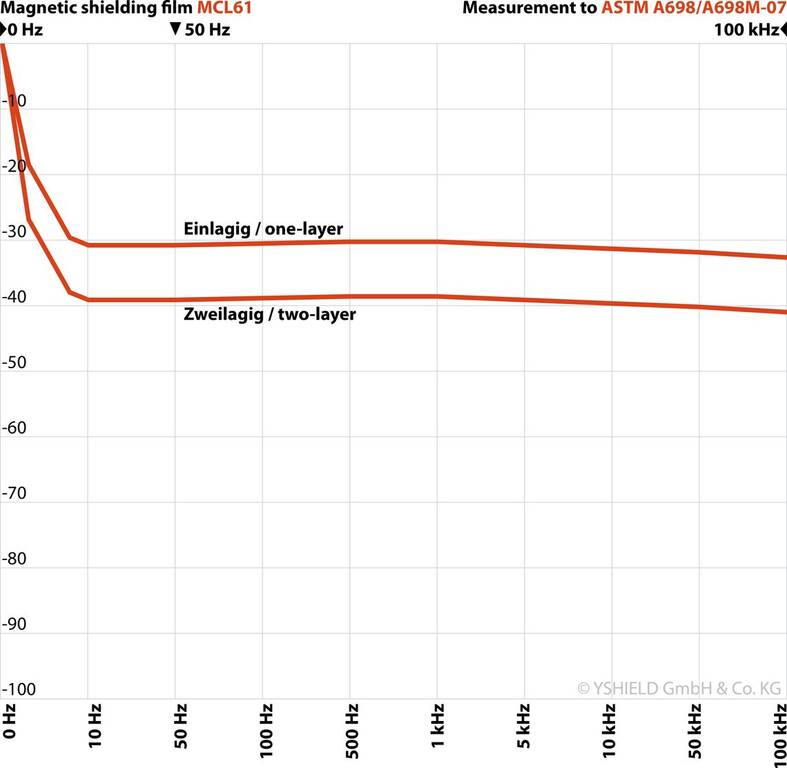

• Attenuation LF magnetic field: 30 dB (97 %); The attenuation depends on the number of phases, cable twisting, the size of the area, etc.
• Work in large areas: Shield cables with 1-2 sheets, fuse-boxes with 2-4 sheets;

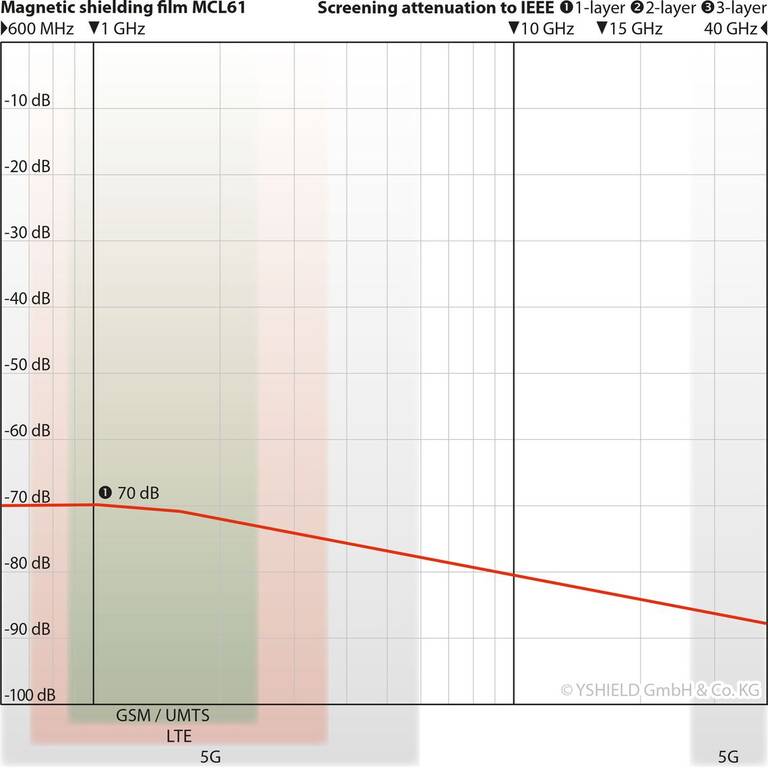

• Attenuation HF: 70 dB
• Weight: 265 g/m²
• Material thickness: 0.1 mm
• Color: Silver
• Permeability: µ 2 = 10,000; µ 4 = 25,000; µ max. = 100,000;
• Saturation polarization Bs: 0.55 T
• Coercive field strength Hc: 0.5 A/m
• Remanence Br/Bs: 0.7
• Curie temperature Tc: 225 °C
• Materials: Polyester, Co, Fe, Mo, Nb, Si, B
