YShield M6L-9X Six-layer Magnetic Field Shielding Film 90cmx1m
Key features of YShield M6L-9X Six-layer Magnetic Field Shielding Film 90cmx1m

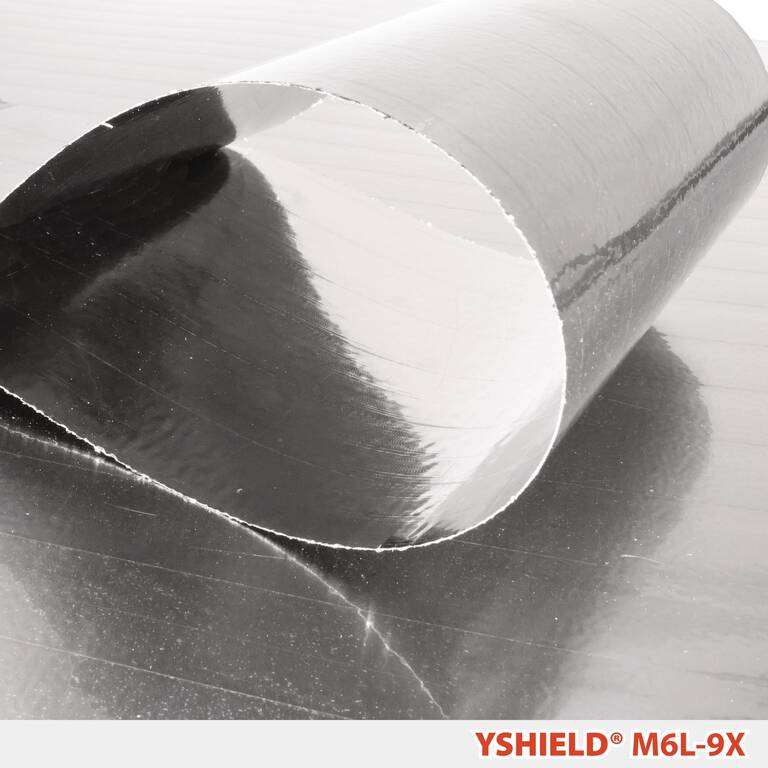

• M6L-9X is a magnetic field shielding film for shielding low frequency magnetic fields
• Highly resistant with laminating film on both sides, suitable as an intermediate layer in roof or floor constructions
• For this product, we have connected 6 very thin shielding foils together

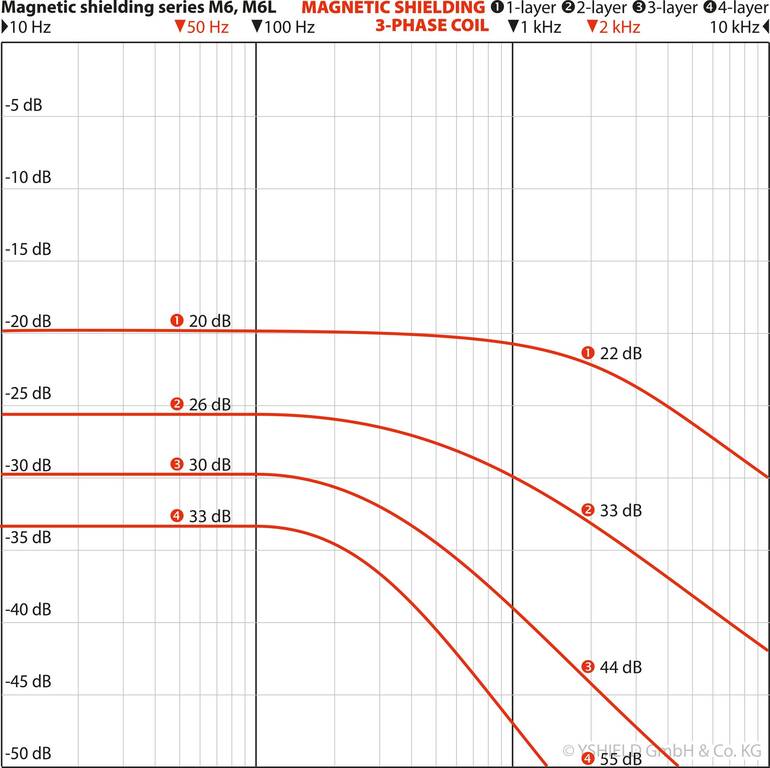

• Attenuation magnetic fields (Three-phase 50 Hz): Single-layer 19.5 dB (89.4 %), two-layer 25.7 dB (94.8 %), three-layer 30.2 dB (96.9 %), four-layer 32.6 dB (97.7 %)

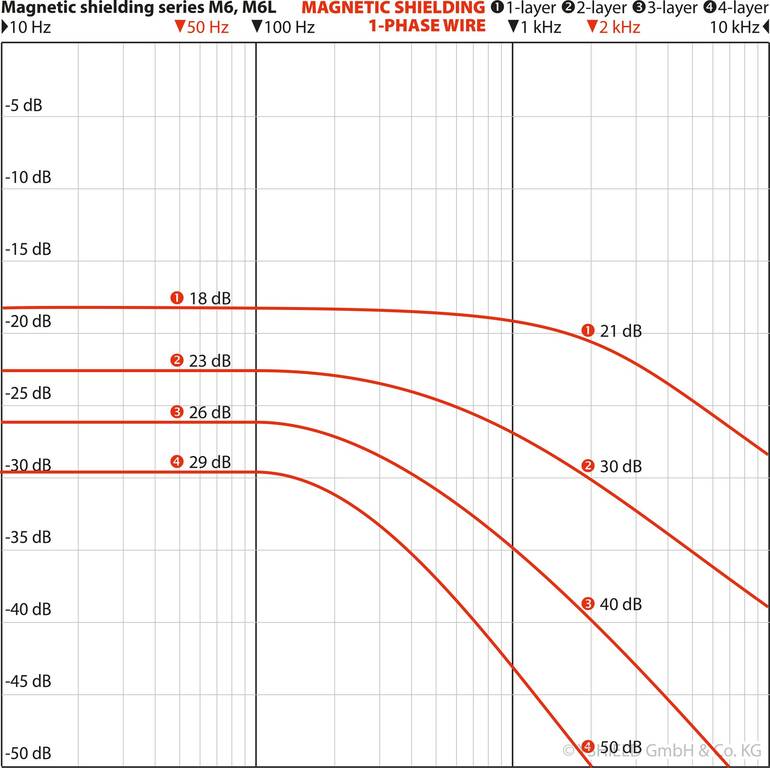

• Attenuation magnetic fields (Single-phase 50 Hz): Single-layer 17.7 dB (87 %), two-layer 23.2 dB (93.1 %), three-layer 26.8 dB (95.4 %), four-layer 29.3 dB (96.6 %)
• Attenuation magnetic fields (Static): DC consumers, earth magnetic field, permanent magnets are shielded in a range from 15 % (single-layer) to 58 % (four-layer)
• Minimum bending radius: 20 cm

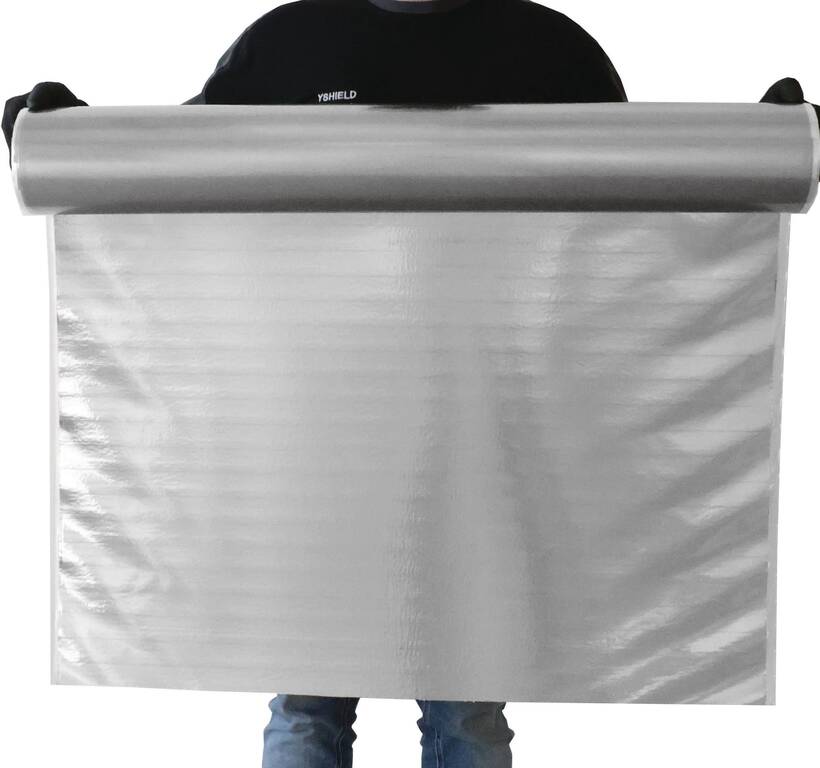

• Width: 90 cm (Shielding surface); 94 cm (total product)

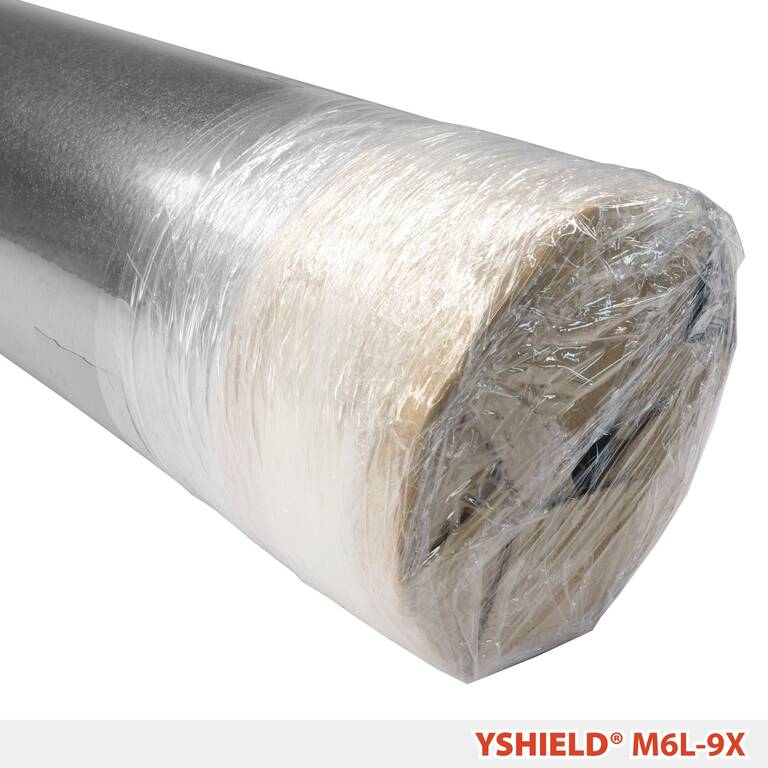

• Length: Available by the meter / 18 meter rolls
• Thickness: 1 mm
Further details of YShield M6L-9X Six-layer Magnetic Field Shielding Film 90cmx1m
For reasons of innovation, we do not declare ingredients and magnetic key figures. The high-tech material has a high initial permeability and high saturation induction from 5 Hz.
It is suited for small surfaces in a domestic environment, as well as for large surfaces in construction, trade or industry. Additionally there are various application possibilities in cars, electric vehicles, vans, mobile homes, campers.
Attention: The M6L-series can be cut with high-quality scissors! The cutting edges are very sharp and need to be protected (e.g. with fabric tape) immediately after cutting! Use cut-resistant gloves during processing! We recommend planning the installation of the plates in a way that you do not have to cut them! Pay attention with larger wall spaces that the plates are a water vapour barrier.
Processing with adhesive: Only a few adhesives can bond laminating film made of PET (polyethylene terephthalate). For secure bonding, we recommend our acrylate-based PSA adhesive, which produces permanently self-adhesive layers. For wet bonding, work quickly and on small areas, then corrections can still be made. Non-absorbent substrates or multiple layers can be problematic because the solvent cannot dry out due to the vapor-tight film! With dry bonding, you have an immediate, very strong adhesion that can no longer be removed.

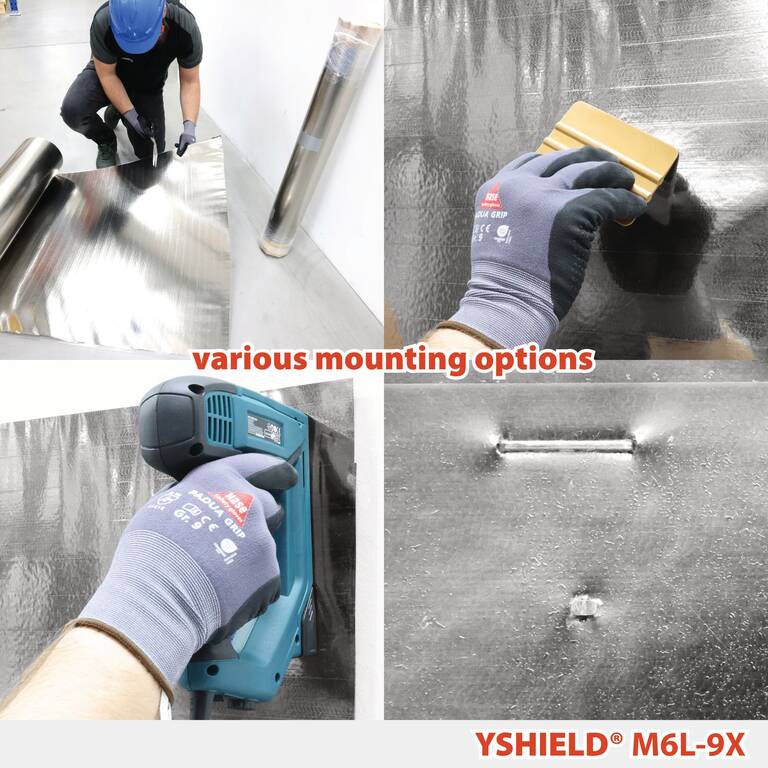

Application using a stapler or nailer: If the substrate is suitable, we recommend using an electric stapler or nailer. For one layer including overlap, a medium-priced electric tacker is sufficient; for two or more layers, you will need a professional nailer. The shielding surface must overlap by at least 2 cm.
Multilayer installation: Always install the plates in an offset position - the surface is to cover the overlapping underneath.
