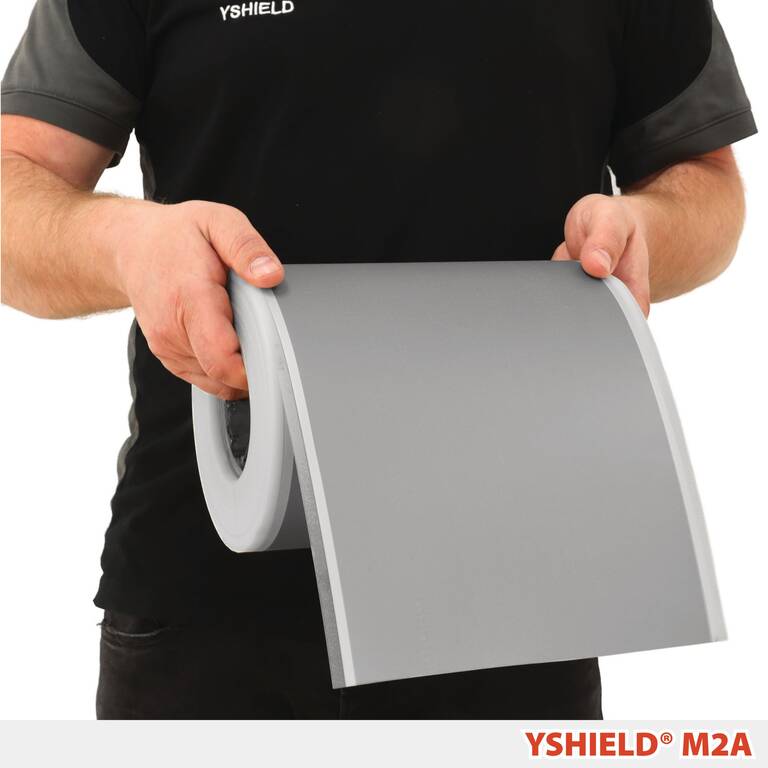

YShield M2A Magnetic Field Shielding Foil with Aluminum 21cmx1m
Key features of YShield M2A Magnetic Field Shielding Foil with Aluminum 21cmx1m
• M2A is a super-thin magnetic field shielding foil for shielding low-frequency magnetic fields
• For this product we have bonded 2 layers of high-tech magnetic field shielding foil

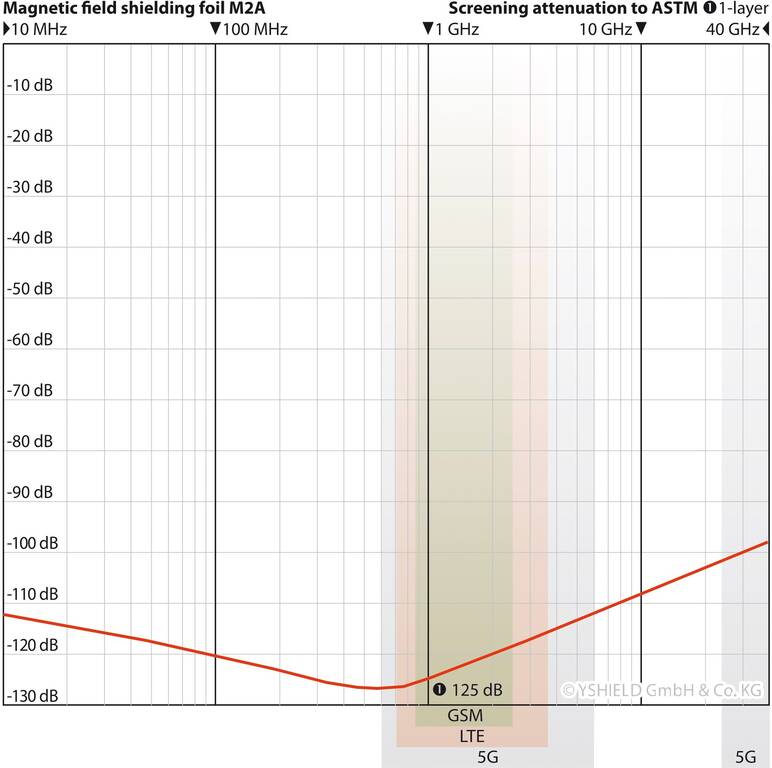

• Attenuation high frequency: 125 dB

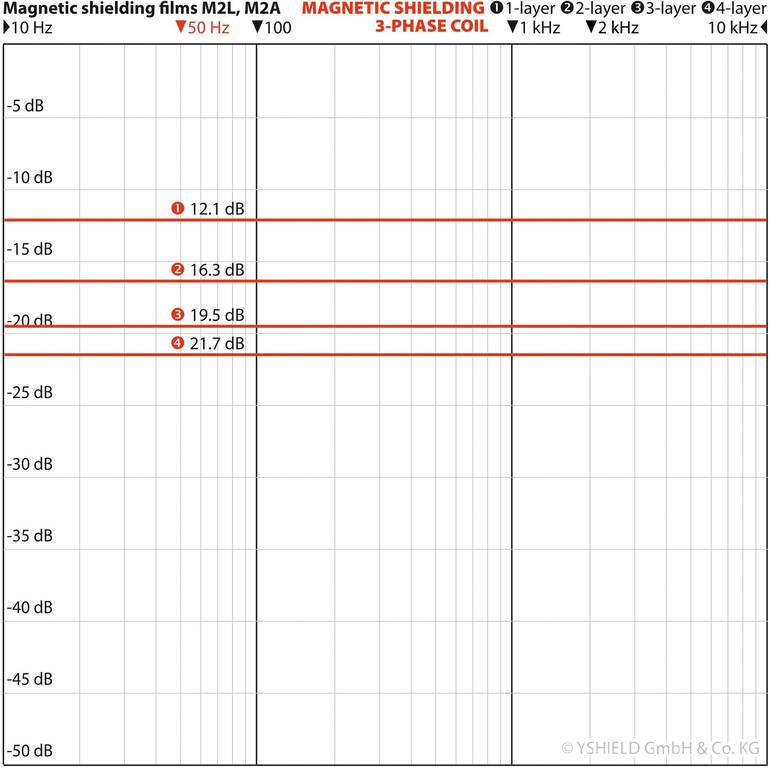

• Attenuation magnetic fields (Three-phase 50 Hz): Single-layer 12.1 dB (75.1 %), two-layer 16.3 dB (84.7 %), three-layer 19.5 dB (89.4 %), four-layer 21.7 dB (91.8 %)

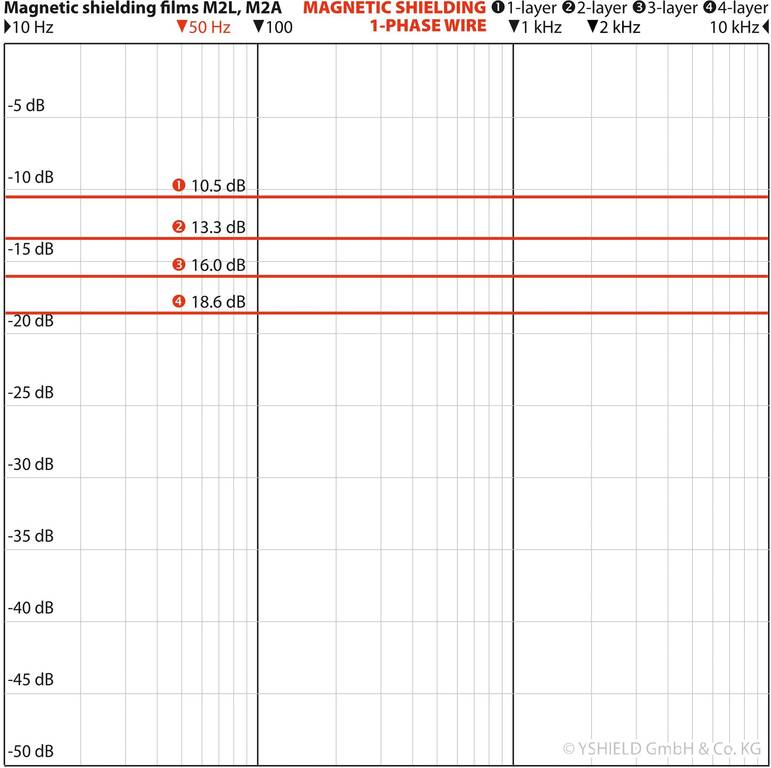

• Attenuation magnetic fields (Single-phase 50 Hz): Single-layer 10.5 dB (70.1 %), two-layer 13.3 dB (78.3 %), three-layer 16.0 dB (84.1 %), four-layer 18.6 dB (88.2 %)
• Minimum bending radius: 10 mm
• Width: 21 cm (Shielding surface); 24 cm (total product)
• Thickness: 0.12 mm
Further details of YShield M2A Magnetic Field Shielding Foil with Aluminum 21cmx1m

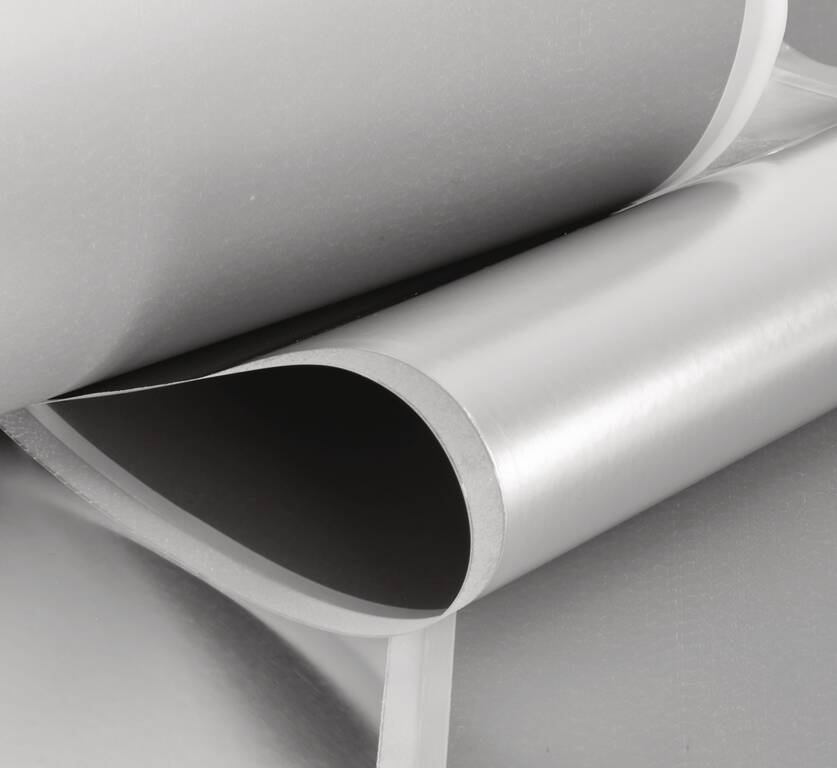

The underside is protected with laminating film and we use aluminum as the surface, which is why the film is also ideal for high-frequency shielding. Suitable for small areas in the domestic environment, in electronics, as well as for large areas in construction, trade or industry.

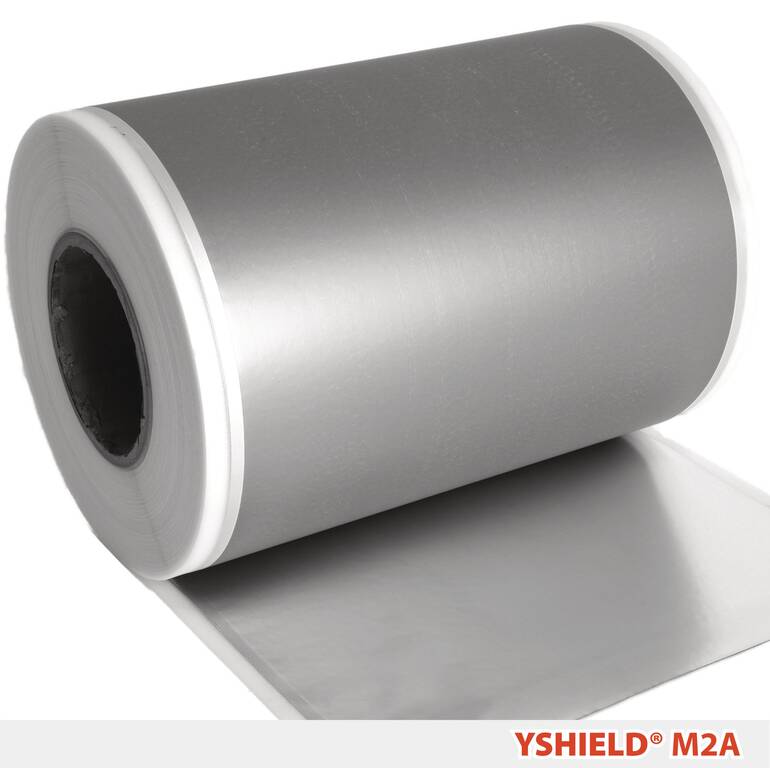

The roll length of 100 meters is particularly advantageous on large surfaces for efficient laying. It can also be used in a wide range of applications in cars, electric cars, vans, motorhomes and caravans.
Attention: You can cut M2A with high-quality scissors! The cut edges are very sharp and must be protected immediately after cutting, e.g. with adhesive tape! Use cut-resistant gloves when working! For larger wall surfaces, make sure that the material is a vapor barrier.
Processing with adhesive: Only a few adhesives can bond laminating film made of PET (polyethylene terephthalate). For secure bonding, we recommend our acrylate-based PSA adhesive, which produces permanently self-adhesive layers. For wet bonding, work quickly and on small areas, then corrections can still be made. Non-absorbent substrates or multiple layers can be problematic because the solvent cannot dry out due to the vapor-tight film! With dry bonding, you have an immediate, very strong adhesion that can no longer be removed.
Application using a stapler or nailer: If the substrate is suitable, we recommend using an electric stapler or nailer. For one layer including overlap, a medium-priced electric tacker is sufficient; for two or more layers, you will need a professional nailer. The shielding surface must overlap by at least 3 cm.
Multilayer installation: Always install the plates in an offset position - the surface is to cover the overlapping underneath.
High-frequency shielding: The aluminum top side provides excellent shielding against high-frequency fields. To do this, the sheets must overlap by 3 cm. As the laminating foil on the underside creates a thin gap despite the overlap, we recommend the use of our shielding tape HNX50.
This product with an electrically conductive surface has to be integrated into the functional-equipotential bonding (FEB).
