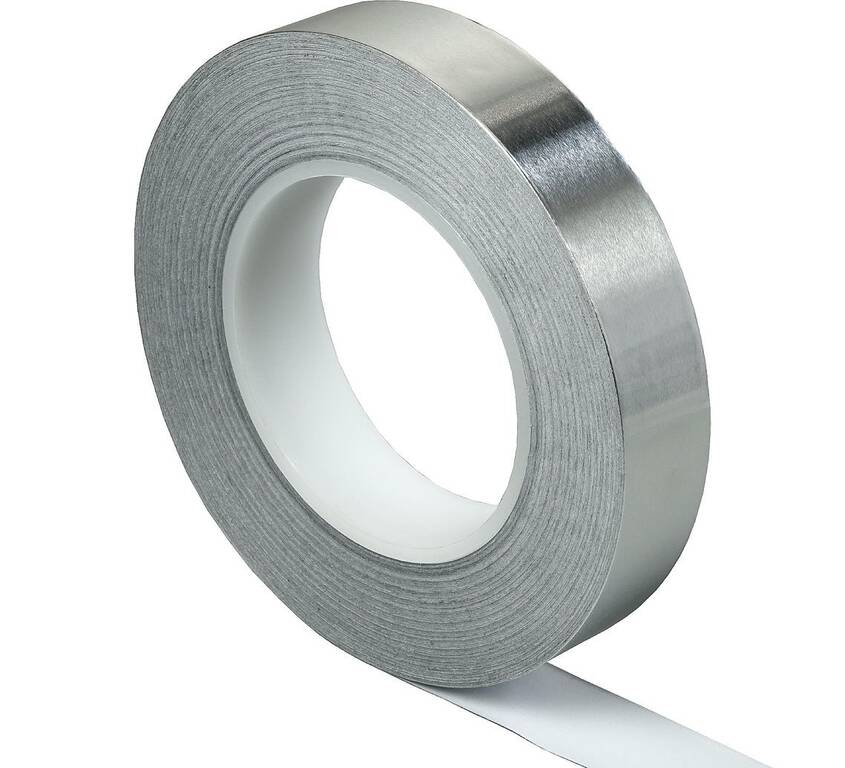

YShield AA50-25 EMC Adhesive Tape for Shielding (50 m)
YSH-069-999
Key features of YShield AA50-25 EMC Adhesive Tape for Shielding (50 m)
• Extremely strong adhesive aluminium tape for EMC shielding
• Attenuation: 120 dB
• Resistance: 0.5 mOhm/Square
• Thickness aluminum: 50 µm
• Width: 25 mm
• Length: 50 m
• Weight:340 g
• Total thickness: 100 µm
• Adhesive force: 48 N/100 mm
Gross price (including 27% VAT): 15.26€ (Net price: 12.02€)
Add to Cart
Price Watch
You can ask for e-mail price notifications when the price of this product gets under a limit you specify. To use this feature you need to have a user account and to be signed in.
Further details of YShield AA50-25 EMC Adhesive Tape for Shielding (50 m)
Extremely strong adhesive aluminium tape for EMC shielding. The acrylic adhesive of this special tape adheres with 48 N considerably better than the adhesive of commercially available tapes with only 4-8 N.
Shielding attenuation & Grounding

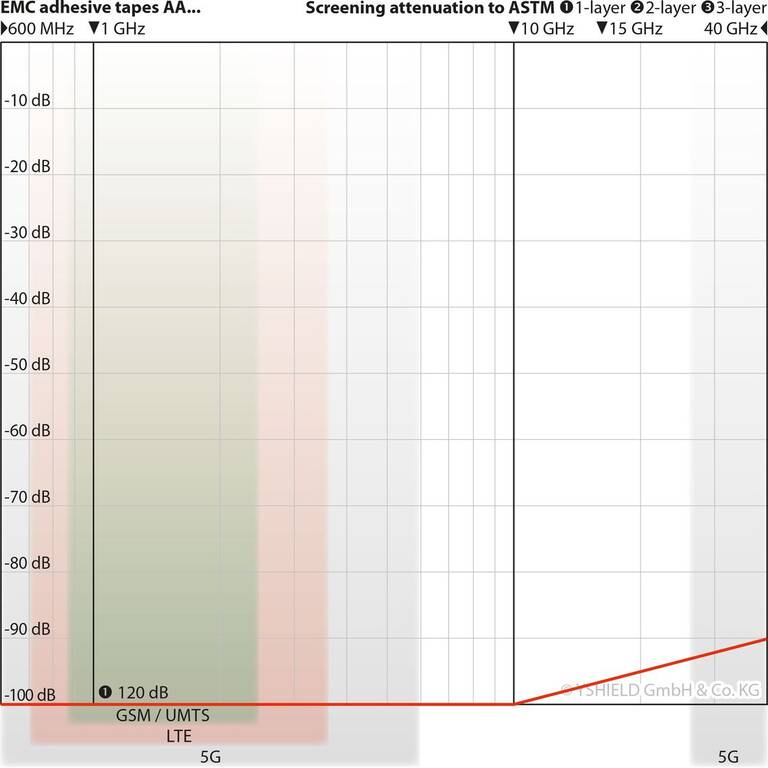

- This product shields high frequency electromagnetic fields (HF). The indicated dB-values apply to 1 GHz, view chart for other frequencies. Measurement from 600 MHz to 40 GHz according to standards ASTM D4935-10 or IEEE Std 299-2006, view laboratory report and expert report above.
- This product with an electrically conductive surface shields low-frequency alternating electric fields (LF). For this purpose a grounding is necessary, i.e. an integration into the functional-equipotential bonding (FEB), please find suitable grounding accessories under "Grounding".
