Triax UPM 1400 Combi Meter Portable Signal Level Indicator

Further details of Triax UPM 1400 Combi Meter Portable Signal Level Indicator

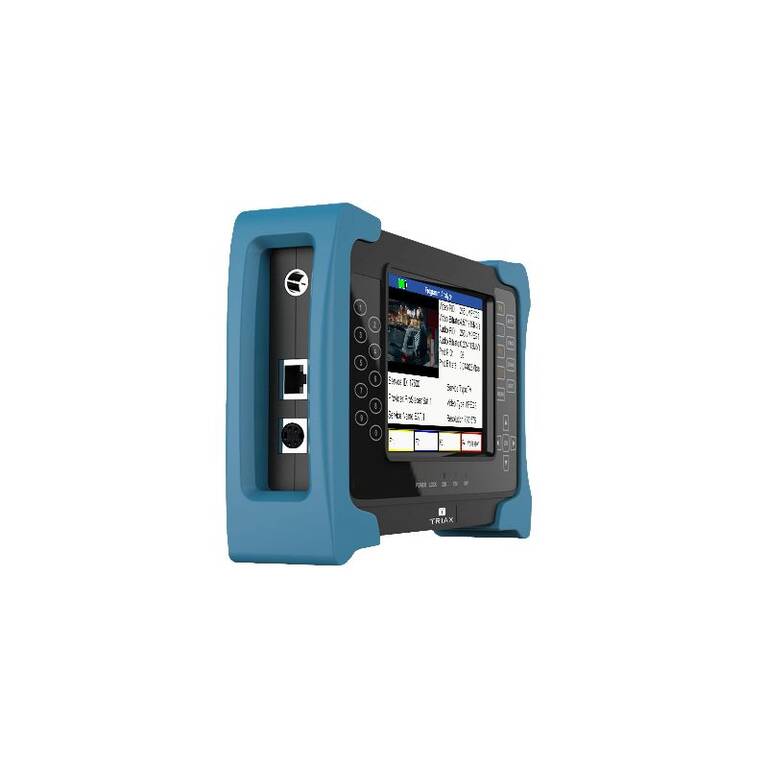

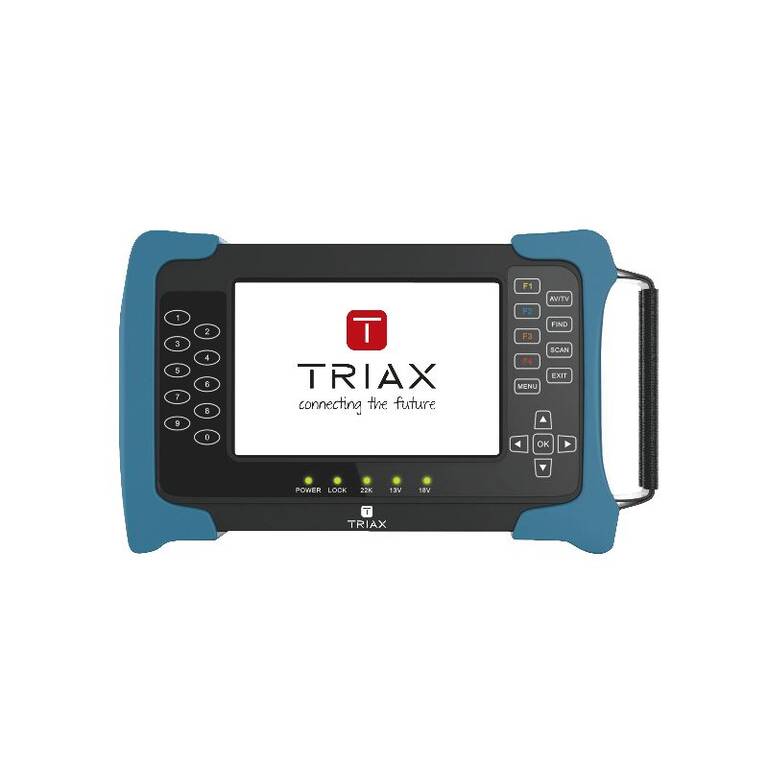

The Triax UPM 1400 portable signal level meter is designed for SAT and TV measurements. It supports DVB-S/S2, DVB-T/T2 and DVB-C transmission standards and allows measurement results to be archived and logged via the USB interface.

Triax UPM 1400 Combi Meter Portable Signal Level Indicator

• Supports DVB-S/S2, DVB-T/T2 and DVB-C with BER and MER evaluation
• 5-inch high-resolution TFT display
• Live HD TV viewing with DVB-T2 H.265/HEVC support

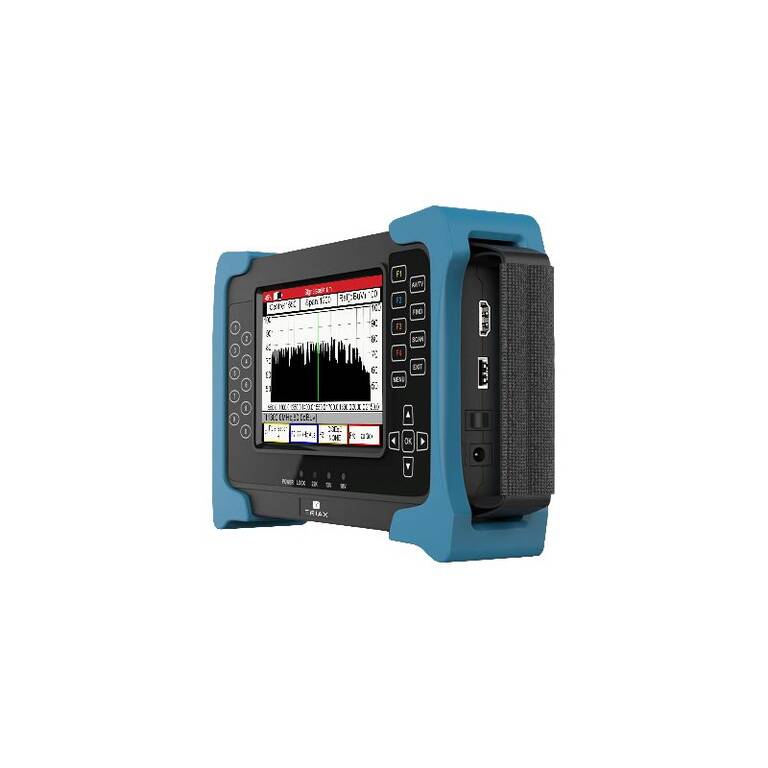

• Spectrum analyzer and constellation diagram
• BER and MER measurement for COFDM, QAM and QPSK
• Automatic satellite detection
• Supports Unicable 1 and Unicable 2 (SCR/dSCR)
• DiSEqC-SCAN function
• USB interface for measurement data recording and software updates
• HDMI output
• AV input
• Lithium-ion battery with up to 4 hours of operating time

Technical Specifications

• Supported audio formats: MPEG-2 Layer I and II, MPEG4, AAC, Dolby Digital (AC-3)
• Supported video formats: MPEG1, MPEG-2 MP@ML, H.264, VC1, DV, MPEG-4, H.265 (1080p at 60 fps)
• Measurement range A: DVB-S/S2
• Measurement range B: DVB-T/T2
• Measurement range C: DVB-C
• Frequency range: 50-2150 MHz
• VHF/UHF measurement range: 35-105 dBuV
• SAT measurement range: 35-95 dBuV
• Characteristic impedance: 75 Ohm
• DVB-T remote supply: 5 V, 12-24 V
• DVB-S remote supply: 13 V, 18 V
• LNB test: 12-20 V in 0.2 V steps
• DC operating voltage: 15 VDC
• Included PSU: European plug (CEE 7/17)
• PSU item number: 304527
• Dimensions: 145 × 220 × 50 mm
• Net weight: 0.850 kg
• Weight: 0.900 kg

The USB interface allows measurement data archiving and software updates. The unit also features an HDMI output, AV input and a lithium-ion battery providing up to 4 hours of operating time.
