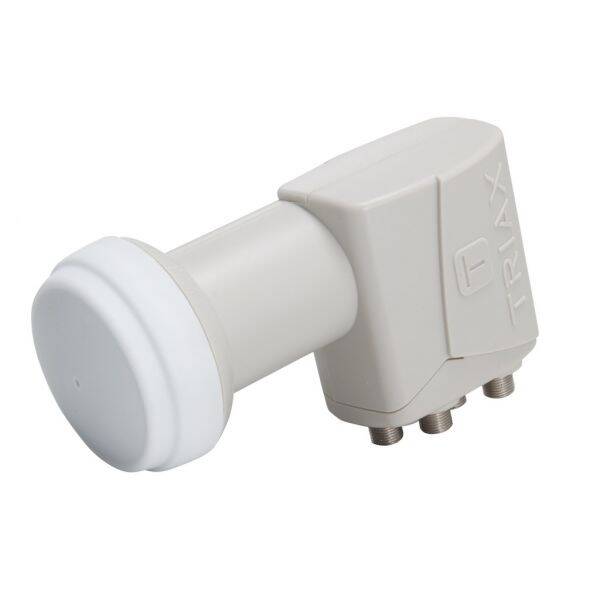

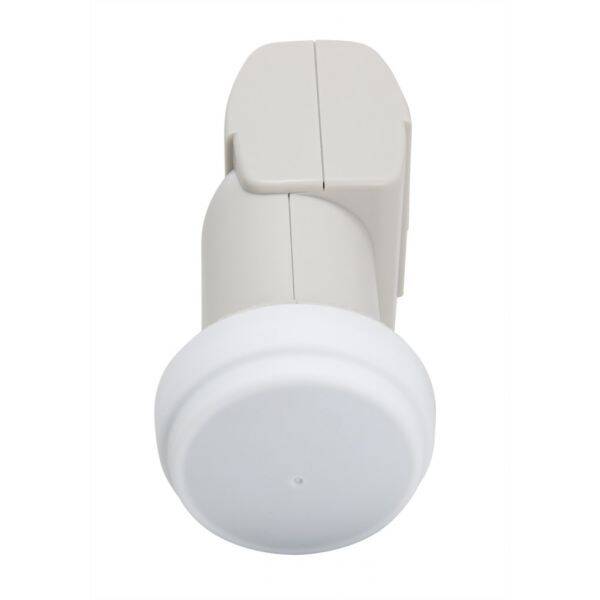

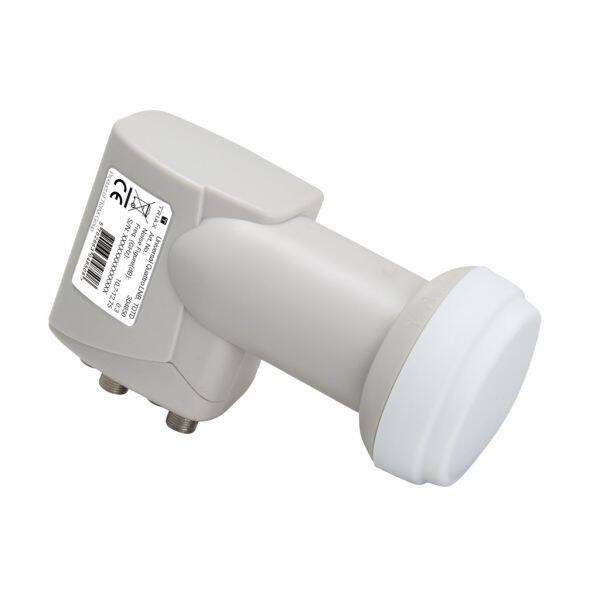

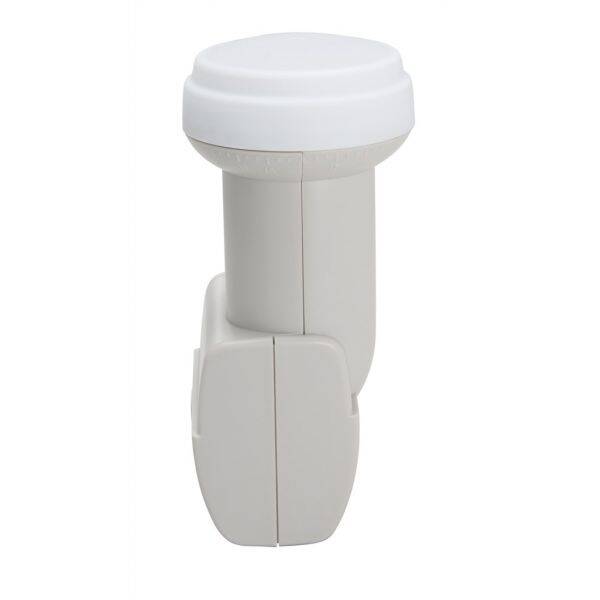

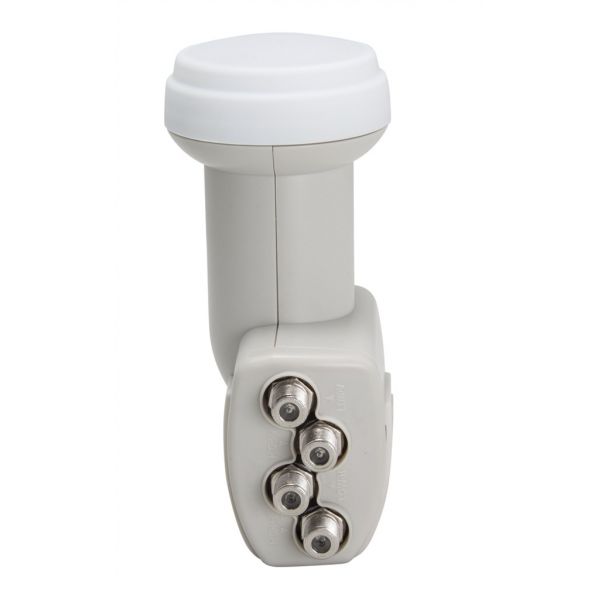

Triax TQTD 006 / CS 400 QT Quattro LNB Satellite Receiver Head (discontinued)

TRI-054-999
Triax TQTD 006 / CS 400 QT Quattro LNB Satellite Receiver Head
Triax TQTD 006 / CS 400 QT Quattro LNB Satellite Receiver HeadTriax TQTD 006 / CS 400 QT Quattro LNB Satellite Receiver HeadTriax TQTD 006 / CS 400 QT Quattro LNB Satellite Receiver Head
Triax TQTD 006 / CS 400 QT Quattro LNB Satellite Receiver Head

Key features of Triax TQTD 006 / CS 400 QT Quattro LNB Satellite Receiver Head

• Impedance: 75 Ω
• VSWR output: 2.0:1
• LNB type: Quattro
• DC Current consumption: 195 mA
• Input frequency low band: 10.7-11.7 GHz
• Input frequency high band: 11.7-12.75 GHz
• Output frequency low band: 950-2150 MHz
• Dimensions: 130 mm (height) x 45 mm (width) x 80 mm (depth)
• Net weight: 0.212 kg
• Manufacturer's item number: 304 850 TQTD 006 / CS 400 QT

This product is not available.
Possible reasons that the product is not available from the manufacturer anymore or we decided to remove it from our product portfolio. We gladly help you to find the best optional product instead of this type, please contact us.
1 year(s) warranty
Triax_TQTD_006_CS_400_QT_en.pdf
English prospectus

1 year(s) warranty

Further details of Triax TQTD 006 / CS 400 QT Quattro LNB Satellite Receiver Head

• High quality, low footprint
• Cutting edge RF technology
• Excellent cross-pole isolation
• Excellent low noise / low phase noise
• High performance / low power consumption
• Weatherproof and suitable for harsh environments
• Full range of Single, Twin, Quad, Quattro and High Gain types
• Smoothness gain (on the 26 MHz segment): 5 dB
• Conversion gain (tip): 55...65 dB
• Max. noise signal: type 0,3 dB
• Phase noise @ room temperature - 1 kHz: - 60 dBc/Hz
• Phase noise @ room temperature - 10 kHz: - 80 dBc/Hz
• Phase noise @ room temperature - 100 kHz: - 100 dBc/Hz
• False level: - 60 (max.) dBm
• Image rejection (min): 40 dB
• Feedhorn diameter: Ø 40 mm
• LO temperature drifting: ± 3 MHz
• Cross polarization isolation20 dB
• LO frequency lower band: 9.75 GHz
• LO frequency high band: 10,6 GHz
• Operating voltage vertical: 10,5...14,5 V/DC
• Operating voltage horizontal: 15,5...21,0 V/DC
• Reflector type: offset
