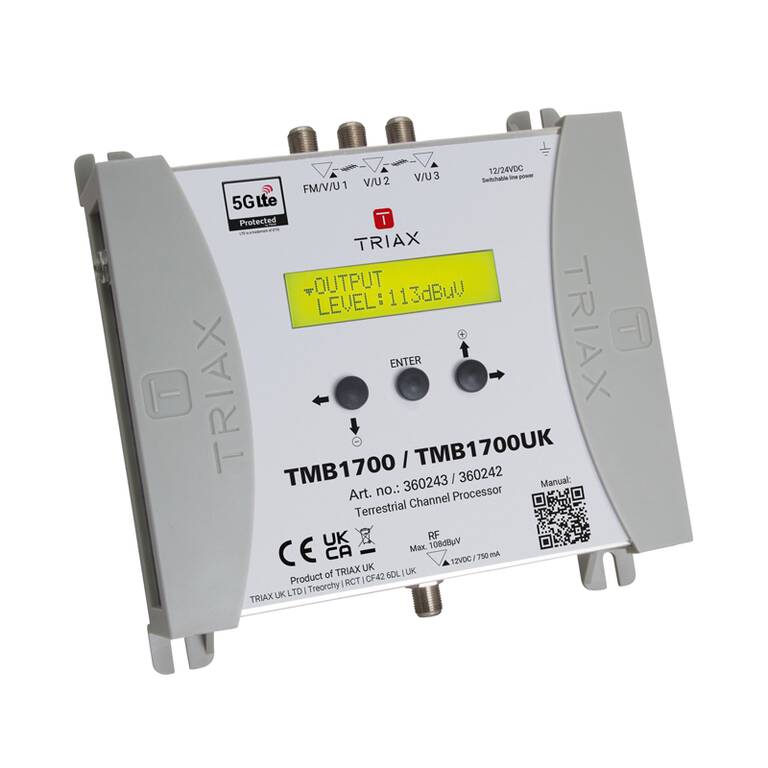

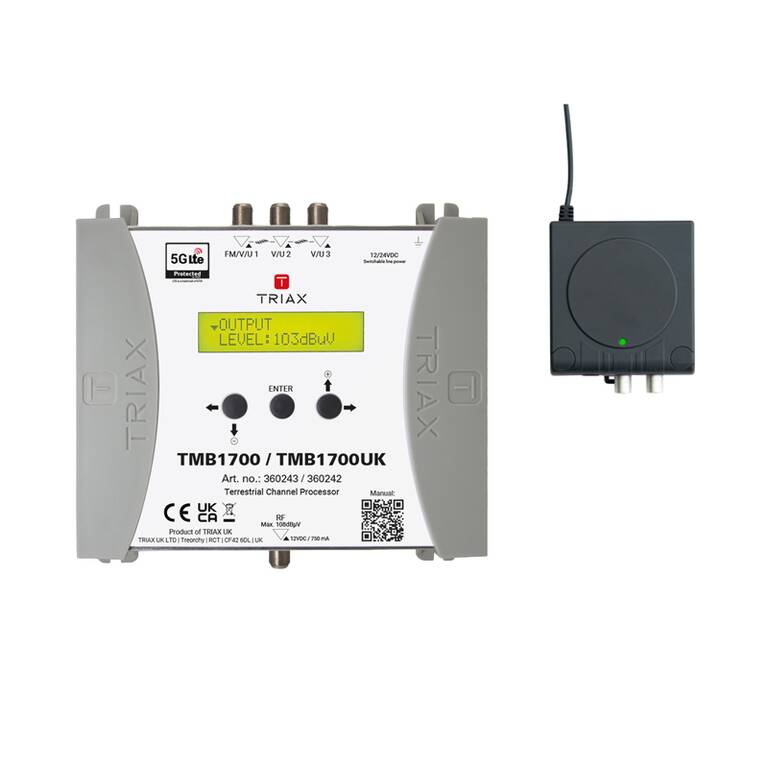

Triax TMB 1700 programmable filter amplifier

TRI-143-999
Triax TMB 1700 programmable filter amplifier
Triax TMB 1700 programmable filter amplifier

Key features of Triax TMB 1700 programmable filter amplifier

• Smart & Automatic channel scan
• Can process and convert more than 50 channels (consisting out of 32 filters, each up to 6 MUXes wide)
• Can process S-Band output channels
• 5G LTE Protection (694MHz)
• Sharpest filters on the market (50 dB on adjacent channels)
• Real-time AGC on all individual multiplexes
• Complete flexibility in assigning filters from any input. Each channel can be frequency shifted to any other channel in the VHF or UHF band (Flex Matrix)
• To avoid unauthorised persons changing the settings, the TMB 1700 can be locked with a security code

The product is ordered directly from the Hungarian importer. The lead time is approximately 2-3 business days if the product is in stock, otherwise it is subject to confirmation by the importer.
Gross price (including 27% VAT): 339.22€ (Net price: 267.10€)
Add to Cart Price Watch
You can ask for e-mail price notifications when the price of this product gets under a limit you specify. To use this feature you need to have a user account and to be signed in.
2 year(s) warranty
triax_TMB_1700_datasheet.pdf
English prospectus

triax_TMB_1700_manual.pdf
English user guide

2 year(s) warranty

Further details of Triax TMB 1700 programmable filter amplifier

• 1 FM/VHF/UHF & 2 VHF/UHF inputs / 32 filters / AGC / 12-24 V remote power
• 3 VHF/UHF inputs / 32 filters / AGC / 12-24 V remote power
• Powered via output F-connector
• Product dimensions (H X W X D): 165mm x 190mm x 59mm
• Made in Europe, for worldwide application
