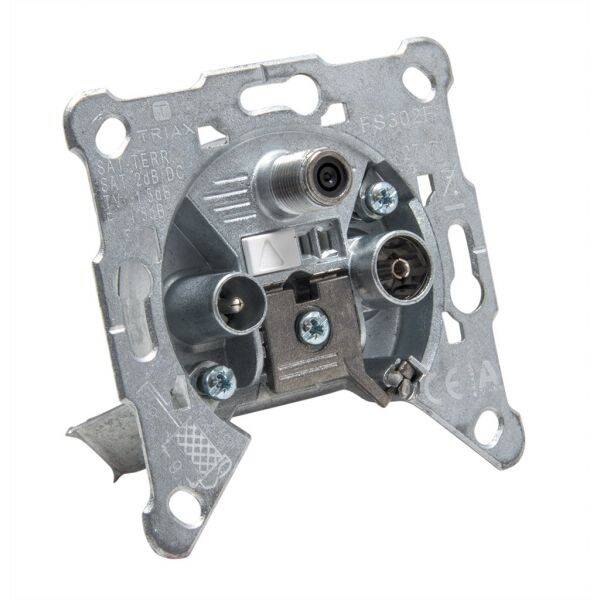

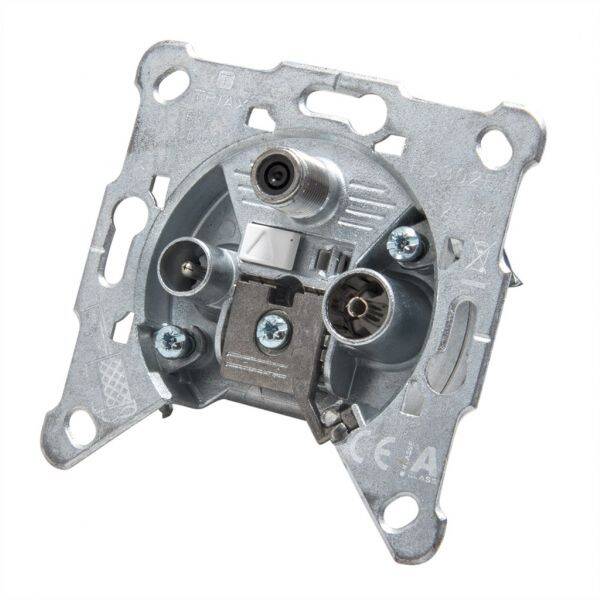

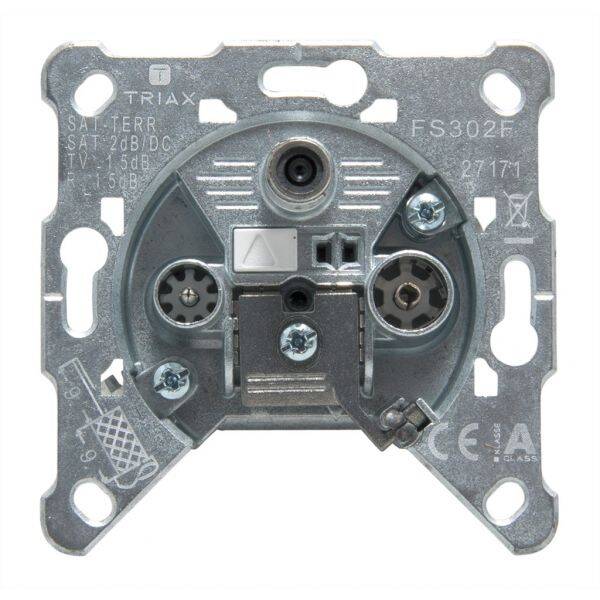

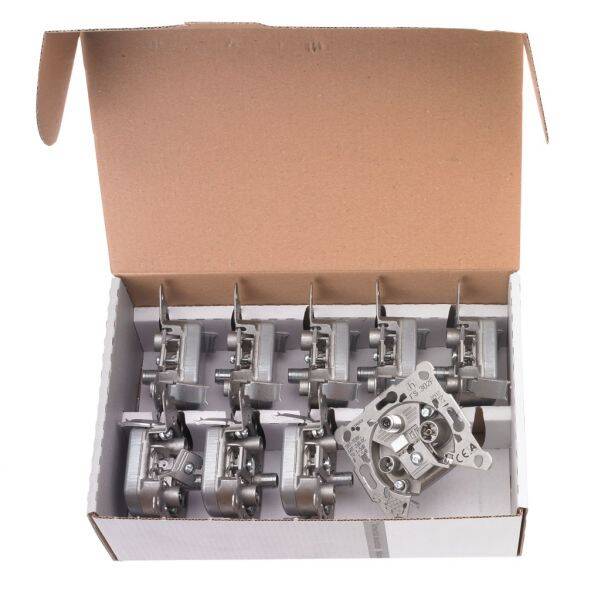

Triax FS 302 F 3-pole Terminal Socket, SAT, TV, R, 2 dB

Further details of Triax FS 302 F 3-pole Terminal Socket, SAT, TV, R, 2 dB

3-hole SAT antenna output socket, especially suitable for multi-switch installations, single cable solutions and custom SAT installations.

• Applicable cable diameters - inner conductor: 0.58-1.15 mm
• Applicable cable diameters - F-socket: 0,6-1,13 mm
• Applicable cable diameters - external conductor: 3,7-5,8 mm
• Applicable cable diameter - jacket: 4,5 to 7,2 mm
• Extremely low attenuation due to selective allocation of frequency bands by filters
• Remote DC input via SAT socket
• Sealed output for stub lines from multiple switches
• Output type: terminated
• Loss of IN-FM: 1,5 dB
• Loss through IN-TV: 1,5 dB
• Loss through IN-SAT: 2,0 (3,0 2400Mhz) dB
• Return Loss FM: 20 dB
• Return loss SAT: 20 dB
• Return loss TV: 30 dB
• Shading factor UHF: > 85 (Class A) dB
• Shading 30-300 MHz: ≥ 95,0 dB
• Shielding 300-470 MHz: ≥ 90,0 dB
• Shielding 470-1000 MHz: ≥ 85,0 dB
• Shielding 1000-2400 MHz: ≥ 65,0 dB
• Tensile strength - 1st inner conductor: > 25 0,75 mm N/mm2
• Tensile strength - 2nd inner conductor: > 50 1,13 mm N/mm2
• Main material: zinc diecast
• Net weight: 0,096 kg

For satellite IF systems (SMATV) with connection options for terrestrial terminals such as FM radio and DVB-T television. Only one satellite receiver can be actively operated at the socket box chain when in multi-switch operation with a cascade of through sockets. Single socket (13/18V, 22 kHz; max +24V/0,5 A)
