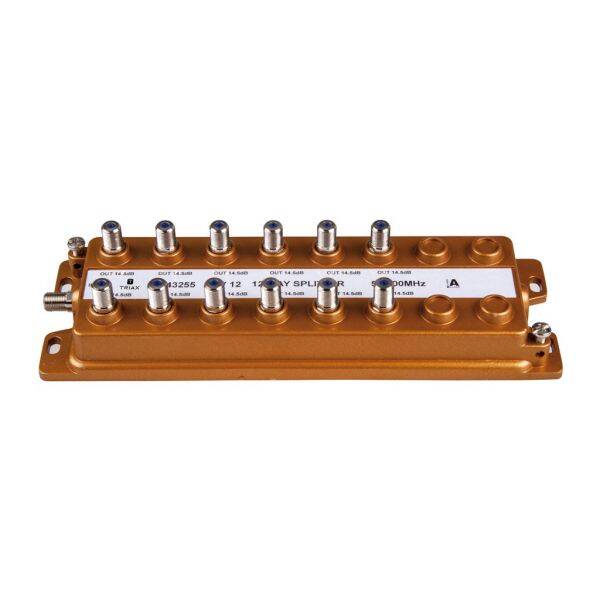

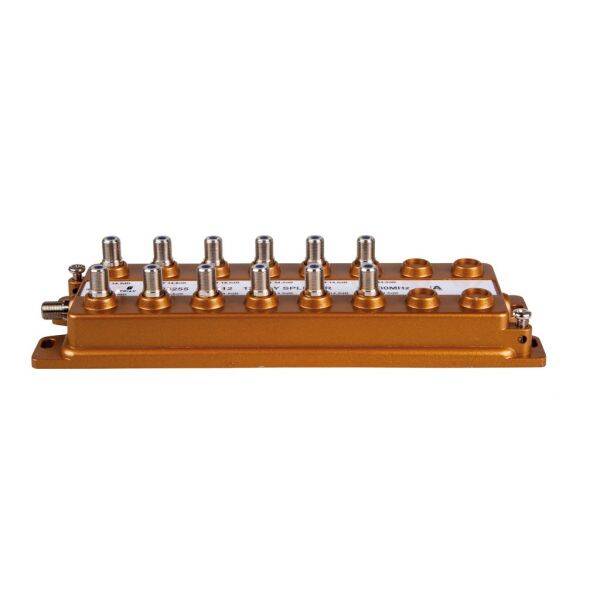

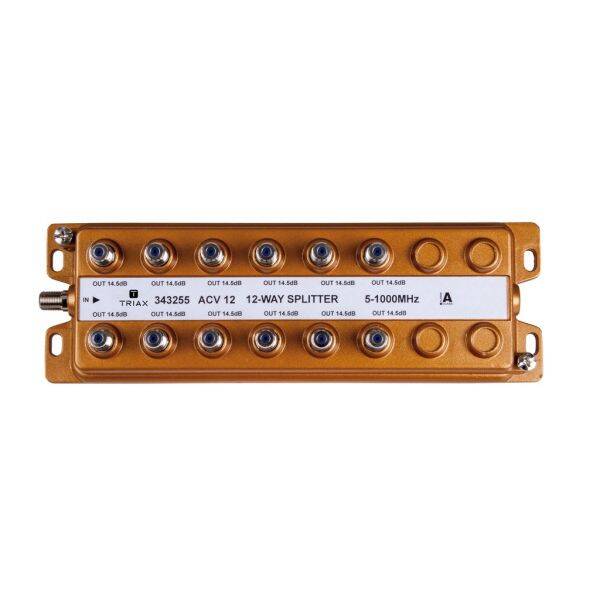

Triax ACV 12 - 12 Way TV Signal Splitter

Key features of Triax ACV 12 - 12 Way TV Signal Splitter

• The full range of TRIAX distribution performance for CATV, SMATV and MATV
• DVB-C (cable) or DVB-T2 (digital terrestrial) signal splitting
• Frequency range: 5-1000 MHz
• Number of outputs: 12
• Impedance: 75 Ω
• Shielding efficiency VHF/UHF: > 110 dB
• High quality die-cast housing with Sn coating
• All AC/DC ports are blocked at the inner conductor
• Broadband splitter for cable TV or terrestrial antenna signal distribution
• Does not pass DC power

• The product is ordered directly from the Hungarian importer. The lead time is approximately 2-3 business days if the product is in stock, otherwise it is subject to confirmation by the importer.

English prospectus
