Telegartner Surge Protector 600 V 2.7 GHz IP67 J01028B0041

TEL-284-999
Telegartner Surge Protector 600 V 2.7 GHz IP67 J01028B0041
Telegartner Surge Protector 600 V 2.7 GHz IP67 J01028B0041

Key features of Telegartner Surge Protector 600 V 2.7 GHz IP67 J01028B0041

• N male to N female surge suppressor
• Nominal DC spark-over voltage: 600 V
• Frequency range: 0-2.7 GHz
• Impedance: 50 ohms
• Protection class: IP67 according to IEC 60529
• Impulse discharge current: 10 × 15 kA (8/20 µs)
• Operating temperature: -30 °C to +100 °C

The product is ordered directly from the Hungarian importer. The lead time is approximately 1-2 weeks if the product is in stock, otherwise it is subject to confirmation by the importer.
Gross price (including 27% VAT): 103.33€ (Net price: 81.36€)
Add to Cart Price Watch
You can ask for e-mail price notifications when the price of this product gets under a limit you specify. To use this feature you need to have a user account and to be signed in.
2 year(s) warranty
Telegartner_J01028B0041_villamvedo_en.pdf
English prospectus

Telegartner_N_csatlakozos_villamvedo_manual.pdf
English user guide

2 year(s) warranty

Further details of Telegartner Surge Protector 600 V 2.7 GHz IP67 J01028B0041

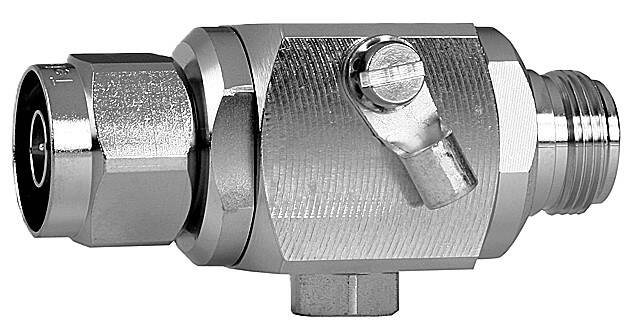

The Telegärtner J01028B0041 is an N-connector, gas-tube surge arrester.

Telegärtner J01028B0041 N Surge Suppressor Specifications

• Connector configuration: N male to N female
• Nominal DC spark-over voltage: 600 V
• Impedance: 50 Ω
• Frequency range: 0-2.7 GHz
• Return loss: typical 30 dB at 1 GHz, 25 dB at 2 GHz, 23 dB at 2.7 GHz
• Insertion loss: typical less than 0.1 dB at 1 GHz, less than 0.2 dB at 2.7 GHz
• Impulse discharge current according to IEC 61643-21: 10 × 15 kA (8/20 µs), 2 × 2.5 kA (10/350 µs), 300 × 200 A (10/1000 µs), 5 × 20 A (1 s at 50 Hz)
• Insulation resistance: at least 5 GΩ
• Centre contact resistance: maximum 2 mΩ
• Outer contact resistance: maximum 0.5 mΩ

Mechanical Characteristics

• Interface according to IEC 61169-16
• Assembly code: B86
• Mating life: more than 500 cycles
• Coupling torque: 4-6 Nm

Materials and Environmental Data

• Centre conductor: CuZn39Pb3, Cu2Ag5 finish
• Spring contact: CuBe2, Cu2Ag5 finish
• Outer contact: CuZn39Pb3, CuSnZn3 finish
• Other metal parts: CuZn39Pb3, CuSnZn3 and Cu2Ni5 finish
• Insulator: PTFE
• Gasket: silicone
• Operating temperature: -30 °C to +100 °C
• Protection class: IP67 according to IEC 60529
• RoHS compliant: 2011/65/EU

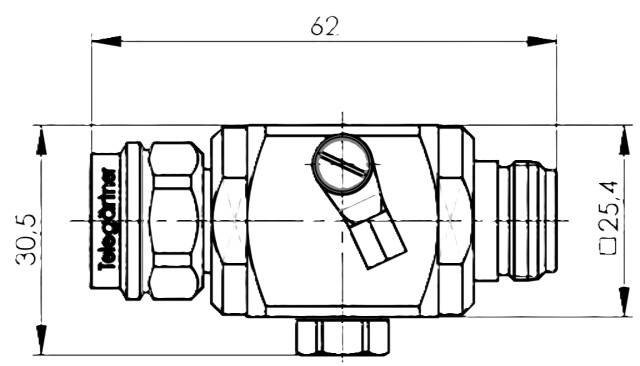

The device has an overall length of 62 mm, a 19 mm hexagon, a 5/8-24 UNEF thread and is supplied with a product label.
