Telegartner N Female SIMFix CA-Pro, G24 (7/8") J01021A0201

TEL-257-999

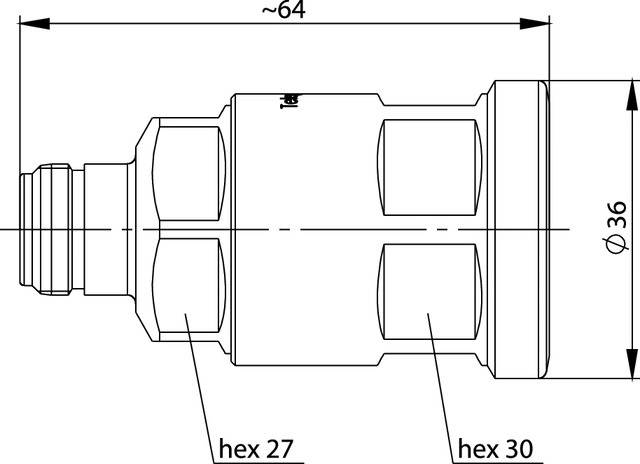

Telegartner N Female SIMFix CA-Pro, G24 (7/8
Telegartner N Female SIMFix CA-Pro, G24 (7/8

Key features of Telegartner N Female SIMFix CA-Pro, G24 (7/8") J01021A0201

• Recommended clutch torque: 4-6 Nm
• Impedance: 50 Ω
• Operating voltage: ≤ 1 kVrms/50 Hz
• Frequency range: 11 GHz
• Durability (mating): ≥ 500
• Voltage protected: 2.5 kVrms/50 Hz
• Insulation resistance: ≥ 5 GΩ
• Insulation: PTFE
• Gaskets: silicone, NBR
• Mounting: B92
• Return loss: straight style ≥ 30,5 dB/1 GHz, angle style ≥ 30,5 dB/1 GHz
• IP68 protection

The product is ordered directly from the Hungarian importer. The lead time is approximately 1-2 weeks if the product is in stock, otherwise it is subject to confirmation by the importer.
Gross price (including 27% VAT): 45.22€ (Net price: 35.61€)
Add to Cart Price Watch
You can ask for e-mail price notifications when the price of this product gets under a limit you specify. To use this feature you need to have a user account and to be signed in.
1 year(s) warranty
Telegartner_N_aljzat_G24_catalog_en.PDF
English prospectus

Telegartner_N_aljzat_G24_manual_en.PDF
English user guide

1 year(s) warranty

Further details of Telegartner N Female SIMFix CA-Pro, G24 (7/8") J01021A0201

The N series is a very popular coaxial connector. It is a medium sized, precision, weatherproof connector with a screw terminal. In some applications this connector can be used up to 11 GHz. Only 50 Ω impedances are available. Various connector styles are available for flexible, flex, semi-rigid and corrugated cable types. Both crimp and clamp cable termination methods are used for this series. Special design techniques for the connector series have resulted in excellent performance levels in terms of return loss (VSWR) and intermodulation distortion. These connectors are used in applications other than signal and data transmission where vibration immunity and environmental protection are required. The N Series offers a medium performance, high frequency solution for coaxial connections. Terminal surface sealing for N connectors (mated) between plug and jack to IP 68.


Other features:
• Spring contacts material: CuBe2, CuNi1Pb1P(C97)
• External conductor material: CuZn39Pb3
• Other metal parts material: CuZn39Pb3
• Internal conductor material: Cu2Ag5
• External conductor: CuSnZn3 (telealloy); Ag2CuSnZn0.5 (Optargen)
• Other metal parts exported: CuSnZn3 (Telealloy), Cu2Ni5
• Contact resistance internal conductor: ≤ 1,5 mΩ
• Contact resistance external conductor: ≤ 1 mΩ
• Certificate of conformity: IEC 61 169-16
