Telegartner J01161A0751 SMB Female for RG-178B/U Cable

Name: J01161A0751 SMB Female for RG-178B/U Cable
Brand: Telegartner
SKU: TEL-287-999
Price: 11.38 EUR
Availability: OutOfStock

TEL-287-999

Key features of Telegartner J01161A0751 SMB Female for RG-178B/U Cable

• SMB straight jack, female
• Frequency: up to 4 GHz
• Impedance: 50 ohm
• For RG-178B/U and RG-196A/U coaxial cables
• Solder / crimp termination, cable mounting
• Operating temperature: -55 to 120 °C
• Outer conductor: gold-plated brass
• Operating life: at least 100 mating cycles

The product is ordered directly from the Hungarian importer. The lead time is approximately 1-2 weeks if the product is in stock, otherwise it is subject to confirmation by the importer.

Gross price (including 27% VAT): 11.38€ (Net price: 8.96€)

Add to Cart Price Watch

You can ask for e-mail price notifications when the price of this product gets under a limit you specify. To use this feature you need to have a user account and to be signed in.

English prospectus

Further details of Telegartner J01161A0751 SMB Female for RG-178B/U Cable

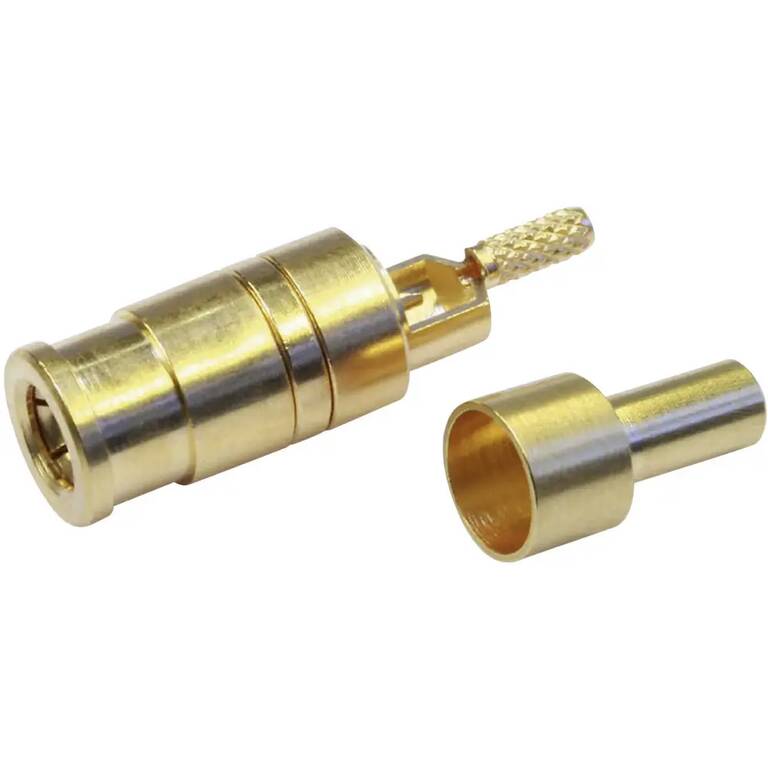

The Telegärtner J01161A0751 is an SMB straight jack for cable mounting with RG-178B/U and RG-196A/U coaxial cables. The connector has an impedance of 50 ohm and a frequency of up to 4 GHz.

Telegärtner J01161A0751 SMB connector technical data

• Type: SMB
• Kind: jack
• Orientation: straight
• Mounting: cable mounting
• Terminal: solder / crimp
• Assembly item: cable assembly
• Frequency: up to 4 GHz
• Impedance: 50 ohm
• Coaxial cable: RG-178B/U, RG-196A/U
• Operating temperature: -55 to 120 °C
• Colour: gold
• Operating life: at least 100 mating cycles

J01161A0751 materials and electrical characteristics

• Outer conductor material: gold-plated brass
• Inner conductor material: nickel-plated and gold-plated brass
• Insulation material: PTFE
• Other metal parts material: brass
• Dielectric strength: 750 V
• Insulation resistance: at least 1 Gohm
• Outer conductor contact resistance: maximum 2.5 mohm
• Inner conductor contact resistance: maximum 5 mohm
• Insertion force: maximum 14 N

Telegärtner SMB jack identification data

• Manufacturer part number: J01161A0751
• EVE item number: J01161A0751
• Product number: 100024882
• EAN: 4018359371463
• Gross weight: 0.00284 kg
