SSB SeaTex 15 Low-Loss Coaxial Cable

SSB SeaTex 15 Low-Loss Coaxial Cable

Key features of SSB SeaTex 15 Low-Loss Coaxial Cable

鈥 Available as a complete roll (100m) or cut to size
鈥 Impedance: 50 Ohm
鈥 Inner core: 4.5 mm copper twisted pair (OFC, 7 x 1.0 mm)
鈥 Outer cable diameter: 14,6 mm
鈥 Shielding: copper foil + copper fabric
鈥 Loss data:
- 10 MHz: 0.86 dB / 100 m
- 100 MHz: 2,81 dB / 100 m
- 200 MHz: 4.05 dB / 100 m
- 432 MHz: 6.10 dB / 100 m
- 500 MHz: 6.70 dB / 100 m
- 800 MHz: 8.60 dB / 100 m
鈥 Colour: black
鈥 Manufacturer's item number: 60900

Gross price (including 27% VAT): 19.96鈧 (Net price: 15.72鈧)
Add to Cart Price Watch
You can ask for e-mail price notifications when the price of this product gets under a limit you specify. To use this feature you need to have a user account and to be signed in.

Further details of SSB SeaTex 15 Low-Loss Coaxial Cable

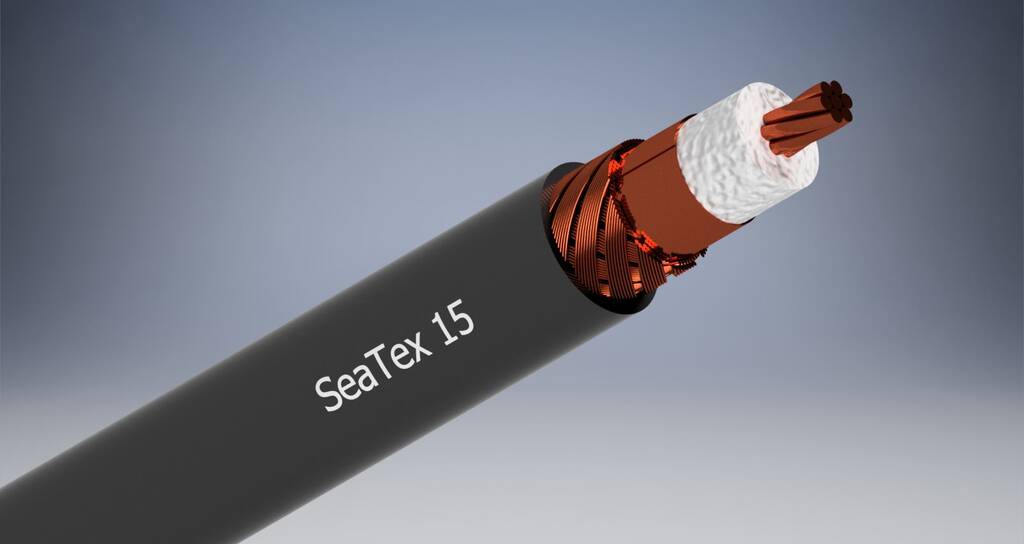

SeaTex 15 is a low-loss, halogen-free, highly flexible communication coaxial cable specially designed for marine and offshore applications. It holds the worldwide SHF shipbuilding approval (DNV certificate) and is suitable for deployment on ships, oil platforms, drilling rigs, and wind turbines.

The outer jacket of SeaTex 15 is made of a special thermoplastic copolymer (SHF2), providing the cable with high resistance to heat, cold, oils, saltwater, UV radiation, and weather conditions, ensuring a long lifespan in harsh environments. Based on the proven Ecoflex 15, SeaTex 15 features excellent attenuation values, and its flexibility and small bending radius allow for installation in tight spaces.

Therefore, SeaTex 15 combines the advantages of Ecoflex coaxial cables with the requirements of maritime applications. The product is specified up to 6 GHz and can be used in a temperature range of -55 to 85掳C.
