Scan Antenna G380-470 OC 3dB Antenna UHF 380-470 Mhz
(discontinued)
501-032-999
Key features of Scan Antenna G380-470 OC 3dB Antenna UHF 380-470 Mhz
• Frequency: 380-470 MHz
• Bandwidth: 25 MHz
• Impedance: 50 ohm
• Vswr:< 1,5
• Polarisation: Vertical
• Gain: 3 dBd, 5,1 dBi
• Max. Input Power: 80 W
• Connector: M5
This product is not available.
Possible reasons that the product is not available from the manufacturer anymore or we decided to remove it from our product portfolio. We gladly help you to find the best optional product instead of this type, please contact us.
Possible reasons that the product is not available from the manufacturer anymore or we decided to remove it from our product portfolio. We gladly help you to find the best optional product instead of this type, please contact us.
Further details of Scan Antenna G380-470 OC 3dB Antenna UHF 380-470 Mhz

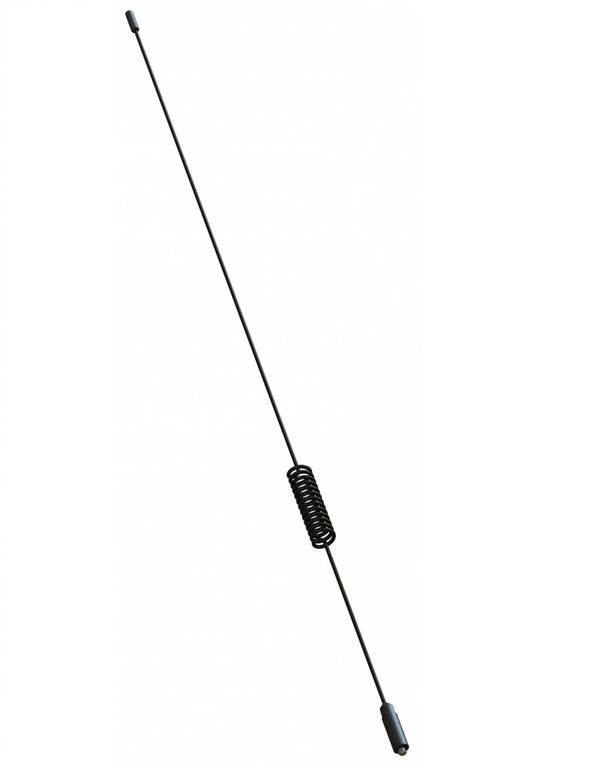

Rigid spring loaded customer tunable antenna whip especially made for use with "G"-type mounts (bases) on vehicle roof etc.
• Color: Black

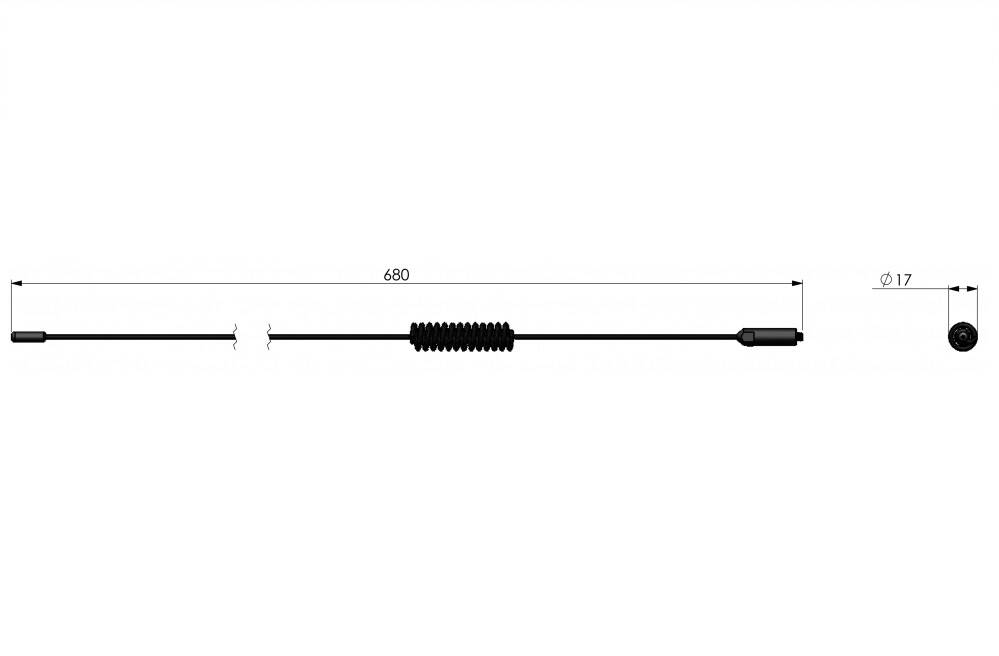

• Height: Approx. 680 mm (Before cutting)
• Weight: 60 g
• Mounting: On "g"-type mounts
• Mounting Place: Vehicle roof
• Materials: Stainless steel, PE and brass
• Operating Temperature: -40C to +70C
• Customer tunable (by cutting)
• Cutting table for tuning supplied
