Panorama Antennas LPAMM4-7-42 4x4 MiMo 4G/5G Magnetic IoT Antenna

Name: LPAMM4-7-42 4x4 MiMo 4G/5G Magnetic IoT Antenna
Brand: Panorama Antennas
SKU: PAN-043-999
Price: 371.62 EUR
Availability: OutOfStock

PAN-043-999

Key features of Panorama Antennas LPAMM4-7-42 4x4 MiMo 4G/5G Magnetic IoT Antenna

• 4x4 MiMo 4G/5G IoT antenna designed for no-drill installation
• 4G/5G frequency: 698-960 / 1427-4200 MHz
• Omni-directional pattern, 50 ohm impedance
• Maximum input power: 5 W
• Magnetic or 3M VHB adhesive pad mounting
• IP65 ingress protection and IK10 vandal resistance
• Dimensions: 68.7 x 112.7 x 169.6 mm
• 2 m CS30 cables, 4 SMA plugs

The product is ordered directly from the UK factory. The lead time is approximately 2-3 weeks if the product is in stock, otherwise it is subject to confirmation by the manufacturer.

Gross price (including 27% VAT): 371.62€ (Net price: 292.61€)

Add to Cart Price Watch

You can ask for e-mail price notifications when the price of this product gets under a limit you specify. To use this feature you need to have a user account and to be signed in.

English prospectus

English user guide

Further details of Panorama Antennas LPAMM4-7-42 4x4 MiMo 4G/5G Magnetic IoT Antenna

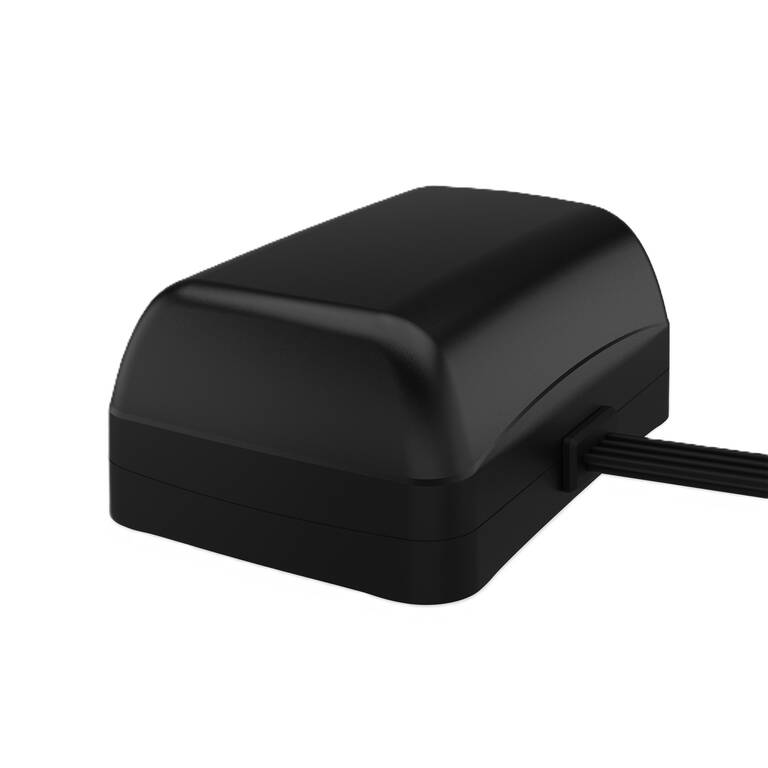

The Panorama LPAMM4-7-42 is a low-profile IoT antenna designed for no-drill installation. The housing contains four 4G LTE / 5G NR antenna elements covering the 698-960 MHz and 1427-4200 MHz frequency ranges. The product can be fixed using magnetic mounting or a 3M VHB adhesive pad.

Panorama LPAMM4-7-42 4x4 MiMo 4G/5G antenna

• Cell/LTE antenna elements: 4
• Cell/LTE frequency range: 698-960 / 1427-4200 MHz
• Typical VSWR for Cell elements: <2.5:1
• Pattern: omni-directional
• Impedance: 50 ohm
• Maximum input power: 5 W

The antenna can be installed on conductive or non-conductive panels without significant detriment to performance. Magnetic mounting requires an appropriate surface.

LPAMM4-7-42 magnetic and adhesive mounting

• Fixing: magnetic or 3M VHB adhesive pad
• Designed for no-drill installation

Panorama LPAMM4-7-42 mechanical data

• Height: 68.7 mm
• Width: 112.7 mm
• Length: 169.6 mm
• Radome material: Lexan EXL 9330
• Radome approvals: V0 (UL 94) / UL 746C (F1)

The housing is constructed from flame-retardant, impact-resistant plastic. Its curved design makes the product harder to vandalise and the housing is UV stable.

LPAMM4-7-42 environmental characteristics

• Operating temperature: -40 to +85 degrees Celsius
• Ingress protection: IP65
• Vandal resistance: IK10

The IK10 rating makes the antenna suitable for use in tough environments and on devices located in public areas.

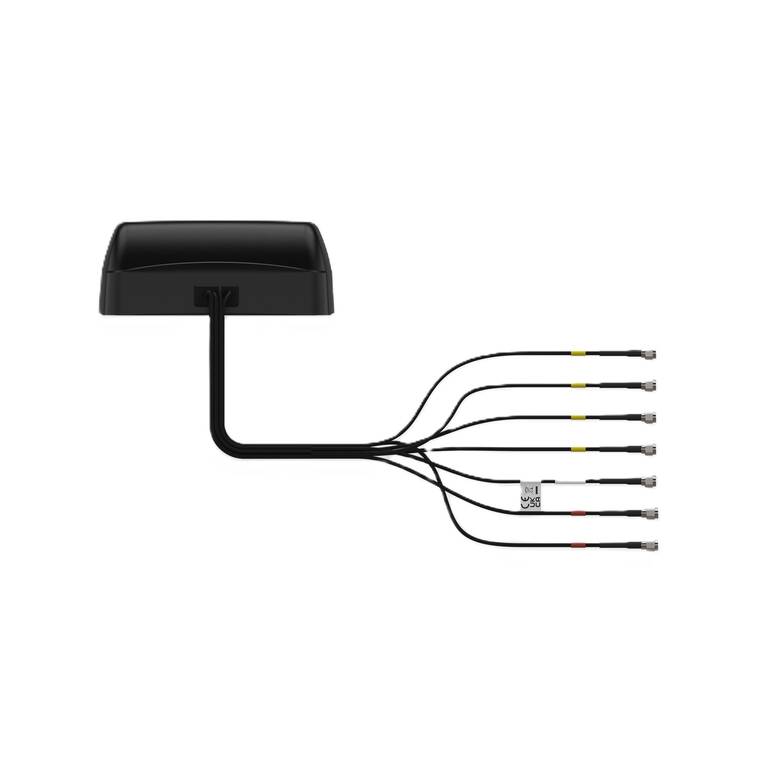

LPAMM4-7-42 cables and connectors

• Cable type: CS30
• Cable compliance: UN ECE R118
• Cable diameter: 2.8 mm
• Cable length: 2 m
• 4G/5G termination: 4 SMA plugs
