Odyssey ODP-AGMDINC AGM Battery

Further details of Odyssey ODP-AGMDINC AGM Battery

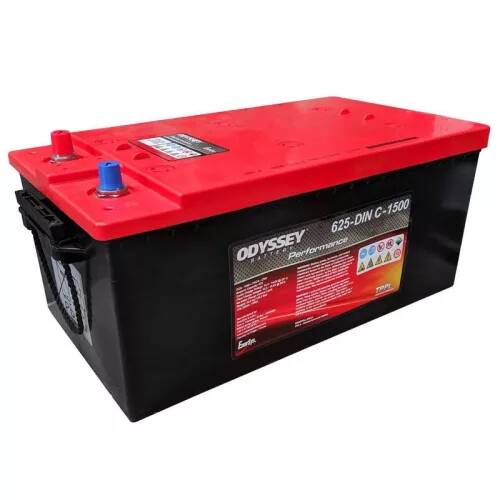

The Odyssey ODP-AGMDINC (625-DIN C-1500) is a 12 V battery with a 20-hour nominal capacity of 220 Ah. Its PHCA cranking performance for 5 seconds is 2700 A, while its CCA (SAE) performance at 18 C for 30 seconds is 1500 A. It is designed for racing and rescue vehicles, as well as land, marine, and snow environments.

Odyssey ODP-AGMDINC battery construction

• Non-spillable AGM technology
• Pure lead plates
• Rugged construction
• Resistance to mechanical vibration

The battery uses pure lead plates and non-spillable AGM technology. Its construction withstands various forms of mechanical vibration. The pure lead plates provide twice the performance compared with conventional batteries.

Odyssey ODP-AGMDINC specifications

• Voltage: 12 V
• PHCA cranking performance, 5 seconds: 2700 A
• CCA (SAE) performance, 18 C, 30 seconds: 1500 A
• 20-hour nominal capacity: 220 Ah

Dimensions and weight

• Length: 518 mm
• Width: 276 mm
• Height with terminals: 225 mm
• Case height: 225 mm
• Weight: 65 kg

Battery life

• Up to 400 cycles at 80% depth of discharge
• The stated service life is three times that of a conventional battery
