Motorola SLR1000 UHF Analog/Digital URH Repeater

Further details of Motorola SLR1000 UHF Analog/Digital URH Repeater

The Motorola SLR 1000 UHF is a MOTOTRBO repeater operating in the 400-527 MHz frequency range. It supports voice and data communication in digital and analogue conventional systems and in supported trunking systems. Its compact, fanless design supports indoor and outdoor installation, including wall, ceiling and pole mounting.

Motorola SLR 1000 UHF general specifications

• Frequency range: 400-527 MHz
• Channel spacing: 12.5 / 20 / 25 kHz
• Frequency stability: 0.5 ppm
• Frequency generation: synthesised
• Channel capacity: 64
• RF output power: 1-10 W
• Maximum duty cycle: 100%
• Operating modes: half-duplex and duplex
• Digital vocoder type: AMBE+2
• Dimensions without brackets or peripheral equipment, height x width x depth: 279 x 229 x 102 mm
• Weight without brackets or peripheral equipment: 4.54 kg
• Operating temperature range: -30 to +60 C
• Ingress rating: IP65
• Environmental classification in the installation guide: IP65, dust and spraying water, and NEMA 4

The IP65 rating supports indoor and outdoor deployment in locations where dust or moisture may be present. Documented deployment locations include campuses, parking garages, subway tunnels and other potentially damp or wet areas.

SLR 1000 UHF supported systems

• Digital Conventional
• IP Site Connect
• Capacity Plus
• Capacity Max
• Connect Plus
• Analogue Conventional
• Digital Voting
• MPT 1327

The repeater operates with conventional and trunking systems supporting voice and data. As part of the Team Communications solution, the SLR 1000 can also be used with MOTOTRBO products, WAVE push-to-talk and other data solutions.

Extended Range Direct Mode

In a conventional radio-to-radio system, the SLR 1000 can be deployed with Extended Range Direct Mode to increase the voice coverage area without purchasing additional frequencies. The PMLN7263 Extended Range antenna switch kit is available for this function.

Motorola SLR 1000 UHF power supply

• Nominal DC input voltage: 12 V
• Datasheet DC voltage range: 11.0-15.5 V
• Standby current: 0.7 A, 0.63 A typical
• Current when transmitting at 10 W: 3 A typical
• Standard input power mode: DC only
• Optional AC/DC power supply available
• Optional AC input: 100-240 V, 47-63 Hz, 1 A maximum
• Installation guide DC input: 10.8-15.6 V DC, 4 A maximum
• Specified nominal supply: 13.6 V DC with an 11-14.4 V DC range

The AC power supply must be ordered separately. The PMLN7773 SLR 1000 power adaptor kit is available for indoor applications and the PMLN7771 kit is available for outdoor applications.

SLR 1000 UHF connectors and interfaces

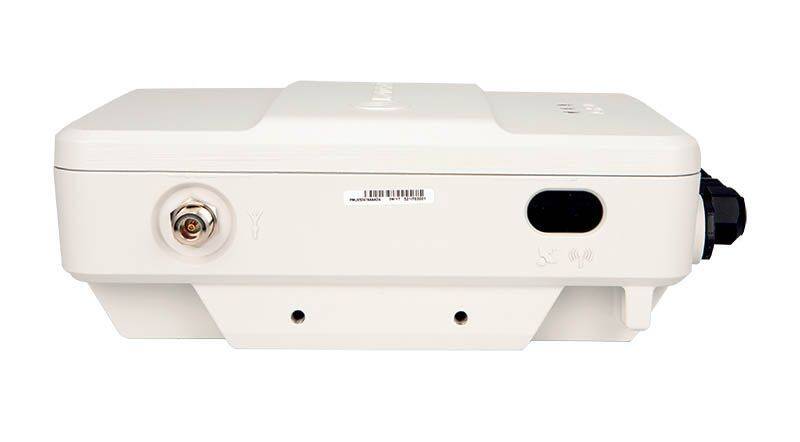

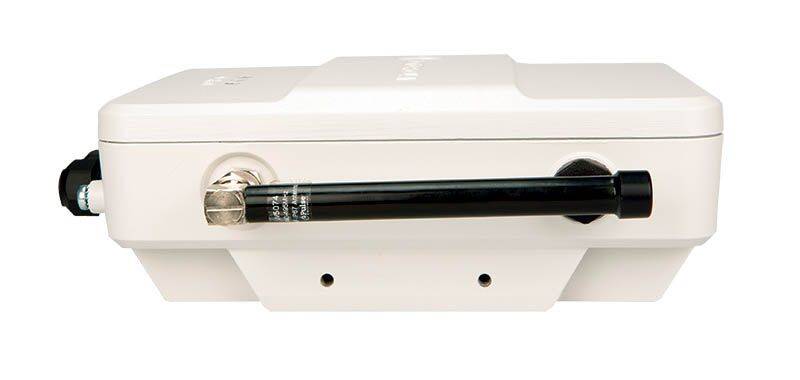

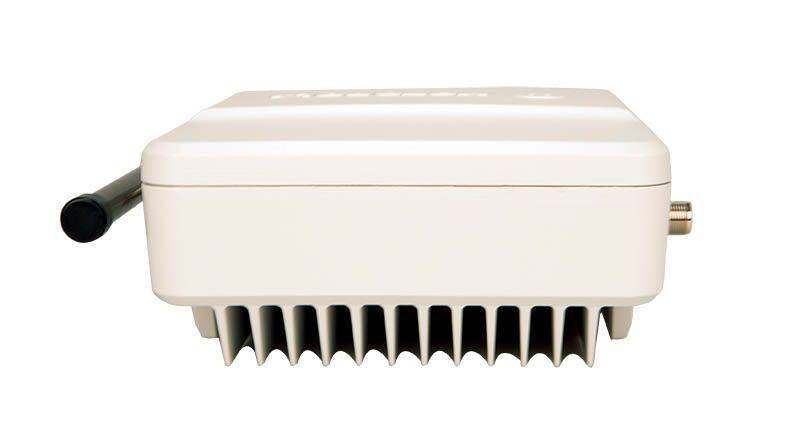

• Left-side receiver connector: Rx, N-female
• Right-side transmitter connector: Tx, N-female

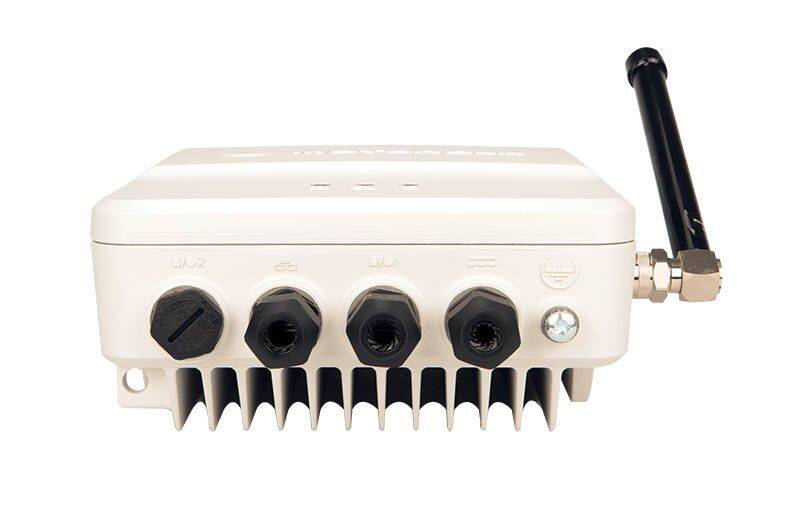

• Bottom connections: USB-B socket, 1 Ethernet port, RJ45 accessory connector and DC input
• RJ45 Aux/Accessory functions: Rx audio, Tx audio, PTT, 1 PPS and GPIO
• USB-B function: programming interface
• Ethernet function: network connection
• 2.1 x 5.5 mm OD barrel connector: DC power inlet
• M6 TORX screw: bonding ground connection
• Header connection for optional antenna switch
• Jumper connection for external on/off function
• Two option-dependent connections
• Expansion board connection for future use

The programming and Radio Management configuration connection is provided through the USB Type-B socket on the bottom of the repeater. The Radio Management application can be used to configure parameters such as operating frequency, PL and codes, and to back up the repeater codeplug data.

Motorola SLR 1000 UHF receiver

• Receive frequency range: 400-527 MHz
• Sensitivity at 12 dB SINAD: 0.3 uV, 0.22 uV typical
• Sensitivity at 5% BER: 0.25 uV, 0.18 uV typical
• Selectivity according to TIA603D at 12.5 / 20 / 25 kHz: 55 / 80 / 80 dB
• Selectivity according to TIA603 at 12.5 / 20 / 25 kHz: 68 / 80 / 80 dB
• Intermodulation rejection according to TIA603D / ETSI: 80 / 70 dB
• Typical intermodulation rejection according to TIA603D / ETSI: 82 / 73 dB
• Spurious rejection according to TIA603D / ETSI: 85 / 75 dB
• Typical spurious rejection according to TIA603D / ETSI: 95 / 90 dB
• Audio distortion: less than 3%, less than 1% typical
• Hum and noise at 12.5 / 20 / 25 kHz: -45 / -50 / -50 dB
• Blocking: -57 dBm

The receiver RF input is provided through a separate N-female Rx port.

Motorola SLR 1000 UHF transmitter

• Transmit frequency range: 400-527 MHz
• RF output power: 1-10 W
• Maximum duty cycle: 100%
• Intermodulation attenuation: 40 dB
• Adjacent channel power according to TIA603D at 12.5 / 20 / 25 kHz: 62 / 78 / 78 dB
• Adjacent channel power according to ETSI at 12.5 / 20 / 25 kHz: 62 / 78 / 78 dB
• 4FSK modulation fidelity, FSK error: 5%
• FSK magnitude: 1%
• Conducted spurious emissions below 1 GHz: -36 dBm
• Conducted spurious emissions above 1 GHz: -30 dBm
• Audio response: TIA603D / ETSI
• Audio distortion: less than 1%
• Hum and noise at 12.5 / 20 / 25 kHz: -45 / -50 / -50 dB
• Rated system deviation at 12.5 / 20 / 25 kHz: +/-2.5 / +/-5.0 / +/-5.0 kHz

The transmitter RF output is provided through a separate N-female Tx port.

SLR 1000 audio specifications and emission designators

• Unbalanced audio input: adjustable, 80 mV rms nominal for 60% RSD
• Unbalanced audio output: adjustable, 330 mV rms nominal at 60% RSD
• FCC emission designators: 11K0F3E, 16K0F3E, 7K60FXD, 7K60F7D, 7K60FXE, 7K60F7E, 7K60F7W, 7K60FXW
• UHF FCC Type Acceptance: ABZ99FT4100
• UHF IC Description: 109AB-99FT4100

The digital vocoder type is AMBE+2.

Motorola SLR 1000 compliance

• ETSI 300-086
• ETSI 300-113
• TIA603D
• CE marked
• RoHS2 compliant
• UL Listed
• ETSI TS 102 361-1, -2 and -3 digital protocol
• DMR Tier II and Tier III

This is a Class A product. In a domestic environment, it may cause radio interference, in which case adequate measures may be required.

SLR 1000 installation options

• Indoor or outdoor installation
• Wall mounting
• Ceiling mounting
• Pole mounting
• For wall or pole mounting, the chassis fins must be oriented vertically
• For ceiling mounting, the fins face towards the ceiling
• Installation requires a restricted access location
• The installation area must safely support the weight of the repeater

The supplied mounting hardware is used for wall or ceiling mounting. Four number 10/32 lag bolts are required and are not included in the mounting hardware. Four M6 screws are installed in the chassis side fins and tightened to 60 in-lb.

Pole mounting

Pole mounting requires the PMLN7213 pole mount kit, the supplied wall mounting bracket and four M6 screws. Four additional M4 screws are used for a power supply. Installation can use a U-bolt, two 1/2 inch washers and four 1/2 inch nuts on poles with a diameter of 2-2.75 inches, or two band clamps on poles of any diameter. The band clamps are not included in the pole mount kit.

Operating and environmental conditions

• Maximum operating ambient temperature at sea level: +60 C
• Supported operating altitude: up to 5000 m above sea level
• Maximum operating temperature reduction: 1 C per 1000 m elevation
• Operation above 5000 m may be feasible, but specifications and parameters are not guaranteed
• The metal housing may become extremely hot during operation
• Ventilation openings between the chassis fins must not be blocked or covered
• Combustible materials must not be stored in or near the equipment

The fanless design reduces noise, particulate intrusion and the number of components. The repeater does not require HVAC cooling, providing additional placement options where HVAC cooling is not available.

Electrical and RF installation requirements

• The equipment must be grounded according to Motorola R56 and applicable local electrical codes
• A bonding wire of at least 6 AWG is required between the repeater ground screw and the site ground point
• The outer shields of all Tx and Rx RF cables must be grounded
• All Tx and Rx RF cables must be connected to a surge protection device
• Tx and Rx RF cables must not be connected directly to an outside antenna
• RF connectors must be secure and properly terminated
• Power must be disconnected before connecting or disconnecting antennas
• Unauthorised modifications and substitute parts are not permitted
• Servicing must be performed by Motorola-trained personnel

Installation planning must consider input power, antennas, system interfaces, site environmental conditions, the mounting method and the required tools and equipment.

SLR 1000 status indication and commissioning

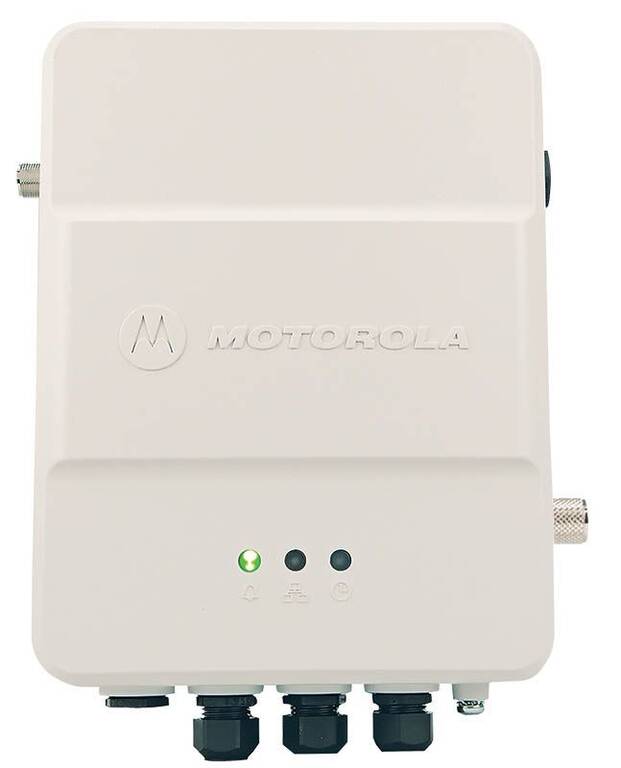

When power is applied, the three front-panel LEDs illuminate for approximately one second, turn off for one second and then indicate the operational status of the repeater. Operation can be verified by observing the three LEDs and exercising radio operation.

SLR 1000 UHF compatible accessories

• HKAE4003 SLR 1000 antenna: 400-460 MHz
• HKAE4004 SLR 1000 antenna: 440-495 MHz
• HKAE4005 SLR 1000 antenna: 490-530 MHz
• PMLN7263 Extended Range antenna switch kit
• HKFE4000 duplexer: 400-430 MHz, 5-6.5 MHz Tx/Rx spacing
• HKFE4001 duplexer: 430-480 MHz, 5-6.5 MHz Tx/Rx spacing
• HKFE4002 duplexer: 480-527 MHz, 5-6.5 MHz Tx/Rx spacing
• HKFE4003 duplexer: 400-430 MHz, 10 MHz Tx/Rx spacing
• HKFE4004 duplexer: 430-480 MHz, 10 MHz Tx/Rx spacing
• HKFE4005 duplexer: 480-527 MHz, 10 MHz Tx/Rx spacing
• PMLN7213 pole mount kit
• BR000143A01 wall mount bracket SAE1074
• PMLN7771 SLR 1000 power adaptor kit for outdoor applications
• PMLN7773 SLR 1000 power adaptor kit for indoor applications
• 30009477001 Repeater Programming Cable, USB-A to USB-B

The antenna, duplexer, Extended Range Direct Mode antenna switch, AC/DC power supply and programming cable are separately ordered accessories.

Motorola SLR 1000 UHF supplied items

• SLR 1000 repeater
• Mounting hardware
• Quick Start Guide

The shipping container and its components should be retained for possible future shipment. The Motorola SLR 1000 UHF 400-527 MHz repeater provides 1-10 W RF output power, 64-channel capacity, IP65 protection, separate transmitter and receiver RF connections, and support for analogue and digital radio systems for indoor and outdoor radio network installations.
