Inverto Pro Flange Twin LNB Satellite Receiver Head (discontinued)

AMI-154-999

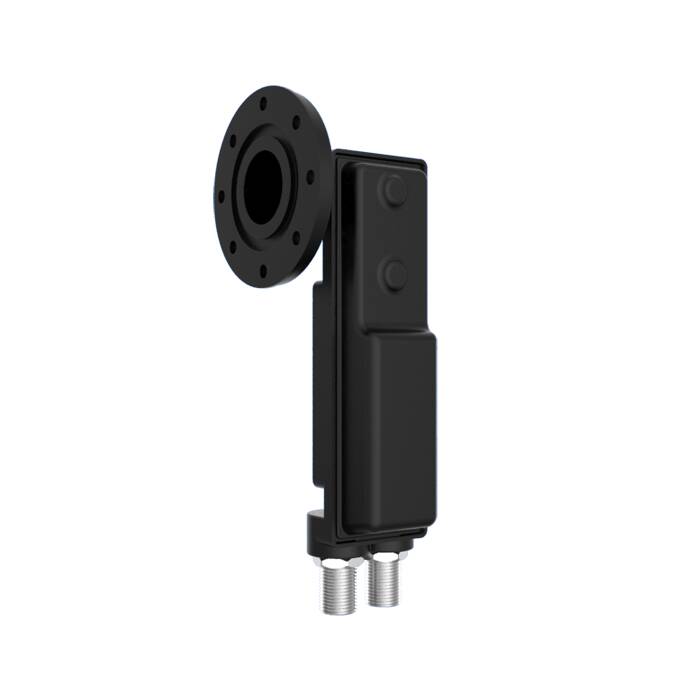

Inverto Pro Flange Twin LNB Satellite Receiver Head
Inverto Pro Flange Twin LNB Satellite Receiver Head

Key features of Inverto Pro Flange Twin LNB Satellite Receiver Head

鈥 DVB-S2 (HDTV) compliant
鈥 It can serve 2 indoor units using Multiswitch
鈥 1 satellite reception
鈥 Impedance: 75 惟
鈥 Low band input frequency range10.7 GHz ~ 11.7 GHz
鈥 Low band LO frequency: 9.75 GHz
鈥 High band LO frequency: 10.6 GHz
鈥 Low band output frequency range: 950 MHz ~ 19500 MHz
鈥 Current consumption: 120 mA max. (10 VDC ~ 20 VDC)
鈥 Output connector type: F-type (female)

This product is not available.
Possible reasons that the product is not available from the manufacturer anymore or we decided to remove it from our product portfolio. We gladly help you to find the best optional product instead of this type, please contact us.

Further details of Inverto Pro Flange Twin LNB Satellite Receiver Head

Specifically designed for the European DTH markets, this LNB provides optimized reception capabilities. It enables the reception of signals from one satellite and its distribution to maximum two Set Top Boxes with Single Tuner (or one STB with Twin Tuner). It is ready for High Definition transmissions and provides excellent Noise Figure performance. Designed to meet strict specifications and manufactured to the highest industry quality standards, this LNB is an ideal solution for the satellite broadcast reception across Europe.

鈥 Noise figure: 0,2 dB tip
鈥 LO temperature drift 卤3.0 MHz max.
鈥 LO phase noise at 10 kHz: -80 dBc/Hz max.
鈥 Gain ripple (at 26 MHz bandwidth): 0,75 dB max.
鈥 Gain variation (full band): 4 dB max.
鈥 Image reflection: 40 dB min.
鈥 1 dB compression point (output): 0 dBm min.
鈥 Cross polarisation isolation: 22 dB min.
鈥 Output VSWR: 2.5 : 1
鈥 In-band noise: -60 dBm max.
鈥 Operating temperature: -30 掳C ~ +60 掳C
鈥 Weight: 180 g
