Icom ID-5200E Amateur Dual-Band Mobile Radio
Key features of Icom ID-5200E Amateur Dual-Band Mobile Radio
• 144/430 MHz dual-band amateur radio transceiver
• 4.3-inch color touchscreen
• Simultaneous FM/FM, FM/DV and DV/DV dual-band reception
• D-STAR Terminal Mode and Access Point Mode support
• Wi-Fi and Bluetooth connectivity for smartphones and computers
• Waterfall display and Memory Scope function
• APRS support planned through a future firmware update
Further details of Icom ID-5200E Amateur Dual-Band Mobile Radio

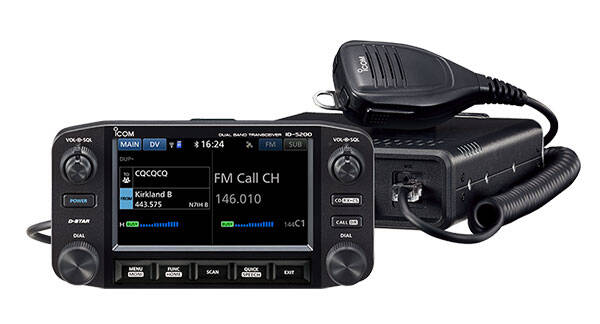

The Icom ID-5200E is a 144/430 MHz dual-band mobile amateur radio transceiver equipped with a 4.3-inch color touchscreen, true simultaneous dual-band reception, D-STAR functions, and Wi-Fi and Bluetooth connectivity.
Icom ID-5200E color touchscreen and controls
• Large 4.3-inch color touchscreen
• Waterfall display for viewing signal activity and band conditions
• Memory Scope function
• Independent tuning dial for the A and B bands
• Independent volume control for the A and B bands
• Independent squelch control for the A and B bands
• The controls for the A and B bands are positioned on the left and right sides respectively
• Dedicated physical buttons for frequently used menus and functions
The independent controls allow separate operation of the A and B bands. In addition to the touchscreen, physical buttons provide direct access to frequently used menus and functions.
ID-5200E simultaneous dual-band reception options
• True simultaneous dual-band reception
• Simultaneous FM/FM reception
• Simultaneous FM/DV reception
• Simultaneous DV/DV reception
• V/V dual receive
• U/U dual receive
• V/U dual receive
• Airband reception support
DV/DV simultaneous reception allows two D-STAR repeaters to be monitored at the same time. The radio also allows the user to listen to another repeater during a QSO.
Icom ID-5200E D-STAR functions
• Terminal Mode
• Access Point Mode
• DV Repeater Monitor
• Image transmission and reception
• Simultaneous monitoring of two D-STAR repeaters
The Wi-Fi connection with built-in access point capability can be used for Terminal Mode and Access Point Mode operation through an Internet connection.
ID-5200E wireless connectivity
• Wi-Fi connectivity
• Built-in Wi-Fi access point capability
• Bluetooth connectivity
• Smartphone connectivity
• Computer connectivity
The radio can be connected to smartphones and computers through Wi-Fi and Bluetooth.
Icom ID-5200E APRS support
• APRS, Automatic Packet Reporting System support
• APRS functionality planned through a future firmware update
APRS support is planned to become available through a future firmware update rather than as part of the initial release.
ID-5200E mounting options
• Optional in-vehicle mounts
• Optional docking brackets
• Optional desktop stands
The separately available accessories provide mounting options for in-vehicle installation, docking, or desktop operation.
The Icom ID-5200E control system combines a large touchscreen, separate dials and controls for each band, and physical buttons for frequently used functions. The radio supports multiple simultaneous reception combinations for analog FM and digital DV modes, D-STAR functions, and wireless smartphone and computer connectivity.
