Icom AH-6 Automatic Antenna Tuner

Further details of Icom AH-6 Automatic Antenna Tuner

The Icom AH-6 automatic antenna tuner can be used with wire antennas and 50-ohm antennas. It provides matching from 1.8 MHz to 54 MHz, with minimum wire-length requirements depending on the operating frequency.

Icom AH-6 Automatic Antenna Tuner

• Frequency coverage with wire antenna: 1.8-54 MHz with a wire length of at least 30 m
• Frequency coverage with wire antenna: 3.5-54 MHz with a wire length of at least 7 m
• Frequency coverage with 50-ohm antenna: 1.8-54 MHz
• 50-ohm antenna matching range: 16.7-150 ohms
• Maximum input power: 120 W
• Required tuning power: 5-15 W, rated at 10 W
• Input impedance: 50 ohms
• Power supply requirement: 13.8 V DC, +/-15%, supplied from the transceiver
• Current drain: 0.6 A or less
• Tuning accuracy: VSWR 2.0:1 or less, except for multiples of half wavelength
• Number of memory channels: 200
• Tuning time: 2-3 seconds average, 15 seconds maximum
• Operating temperature range: -10 to +60 °C
• Weight: approximately 1.25 kg
• Dimensions, projections not included: 172 x 230 x 71 mm
• IP rating: IP54

AH-6 Antenna Connection

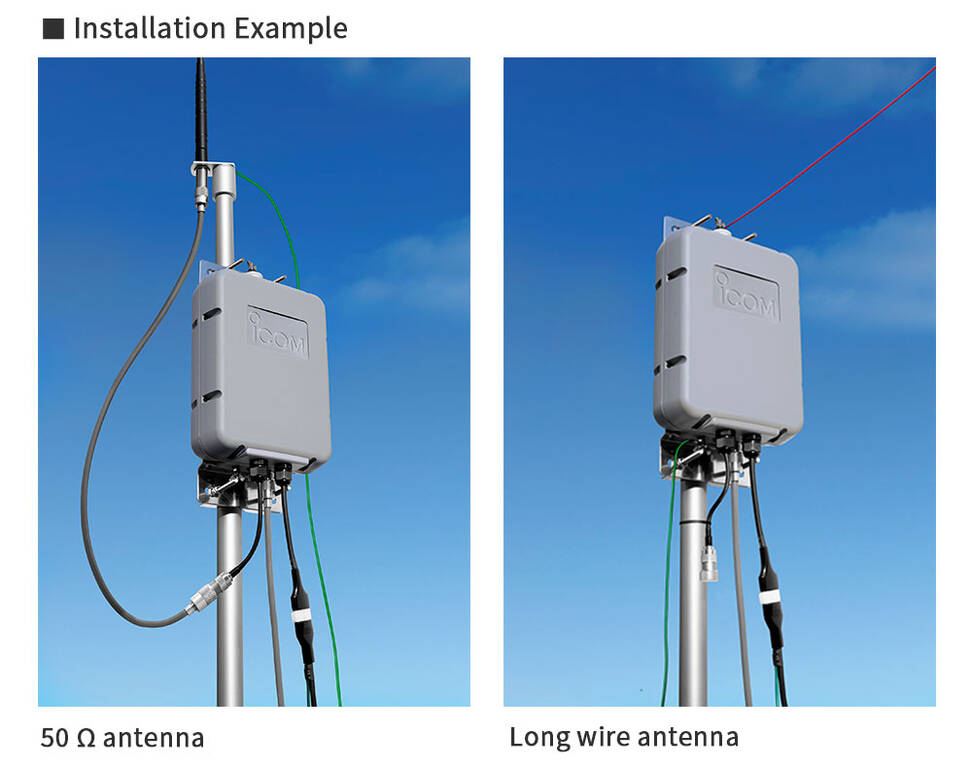

The AH-6 features an SO-239 antenna connector for direct connection of a 50-ohm antenna. A wire antenna and a 50-ohm antenna, such as a vertical or dipole antenna, can be selected with a switch.

• A ground connection is required when using a wire antenna
• Tuning may not be possible depending on the environment and conditions
• Do not connect two antennas at the same time to prevent damage to the antenna tuner during transmission

AH-6 Automatic Tuning and Memory

Automatic tuning is initiated by pressing the TUNER switch on the connected transceiver. The 200-channel memory stores tuning settings, allowing re-tuning at the same frequency in approximately one second.

• Automatic tuning using the TUNER switch of the connected transceiver
• Average tuning time: 2-3 seconds
• Maximum tuning time: 15 seconds
• Memory capacity: 200 channels

IP54 Rating and Outdoor Construction

The AH-6 housing is made of high-rigidity resin. The water-resistant construction includes waterproofing, weather resistance and protection against salt damage. The unit has an IP54 rating.

• IP rating: IP54
• Solid particle protection: IP5x
• Liquid ingress protection: IPx4

Icom AH-6 Size and Construction

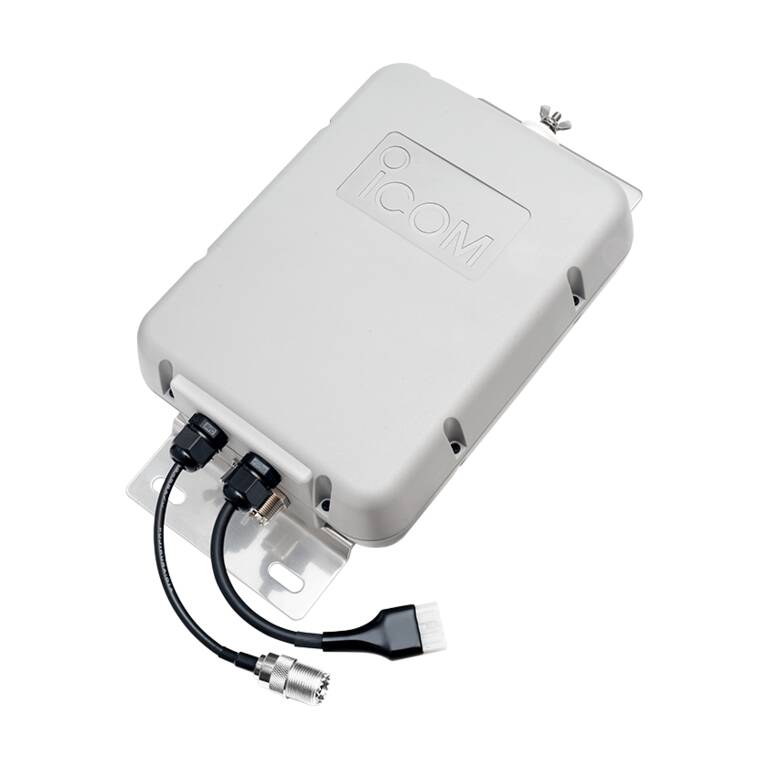

The AH-6 features a compact construction. It has the same compact size as the AH-4 and is 50% smaller and lighter than the AH-730. Cables can be connected without opening the cover.

• Weight: approximately 1.25 kg
• Dimensions: 172 x 230 x 71 mm, projections not included
• Cables can be connected without opening the cover

AH-6 Supplied Accessories

• OPC-1465 control cable, 10 m length
• Mounting kit with U-bolts and plates

Icom Transceivers Compatible with the AH-6

• Icom IC-7760 HF/50 MHz transceiver
• Icom IC-7610 HF/50 MHz transceiver
• Icom IC-7300MK2 HF/50/(70) MHz transceiver
• Icom IC-7100 USA Version HF/VHF/UHF All Mode transceiver
• Icom IC-7100 EUR Version HF/VHF/UHF All Mode transceiver
• Icom IC-718 HF All Band transceiver
