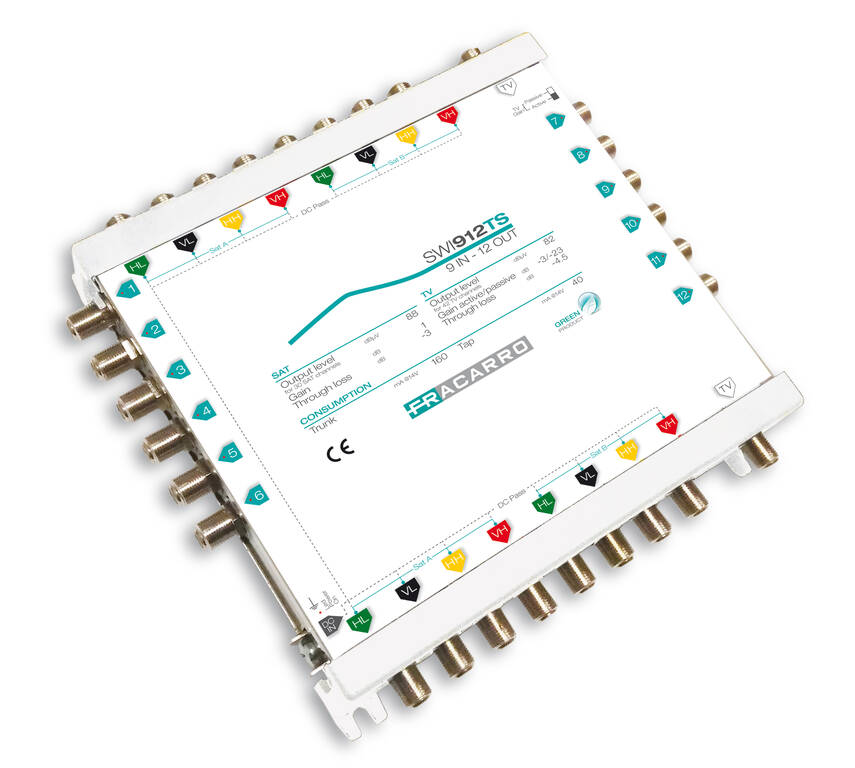

Fracarro SWI912TS Cascadable Multiswitch
Key features of Fracarro SWI912TS Cascadable Multiswitch
• Number of inputs and outputs: 9 (8 SAT+1 TV) - 12
• Cascadable system for larger distribution networks
• Active or passive TV amplification selectable via DIP switch
• SAT frequency range: 950-2300 MHz
• TV frequency range: 47-862 MHz(active)/ 5-862 MHz(passive)
• Maximum output level: 100 dBµV
• SAT-SAT isolation: over 30 dB
• Dimensions: 175 × 190 × 41 mm
• Weight: 0.61 kg
Further details of Fracarro SWI912TS Cascadable Multiswitch
• Consumption (tap): 50 mA
• Consumption (active gain): 160 mA
• Consumption (max. power supply current SAT): 1500 mA (passive)/ 1340 mA (active)
• Operating temperature: between -10 and 55 degrees Celsius
• SAT gain: -3/1 dB
• SAT output level: max. 100 dBµV
• SAT insertion loss: -1/-4 dB
• TV gain: -3 (active) or -23 (passive)
• TV output level: max. 95 dBµV (active)
• TV insertion loss: -3/-4.5 dB
• Satellite band up to 2300MHz
• High output level to cover long cable distances (60m with 6.7mm cable)
• Each port has an LED to show correct reception of DiSEqC commands
• Return channel included when TV gain is passive (5-65MHz)
• When TV gain is passive, the product is fully powered by the receivers, the power supply only serves to power the active TV gain, other amplifiers and LNBs.
• PSU1215TS external power supply not included in the package
• Small size due to matrix switching system, with connectors on both sides.
• Easy to install due to standard input colouring
The Fracarro SWI912TS is a professional, cascadable multiswitch featuring 9 inputs and 12 outputs. It is specifically designed for small and medium-sized central TV-SAT distribution systems, such as those in apartment buildings, hotels, or office buildings. The device ensures a stable signal level even with longer cable networks.
