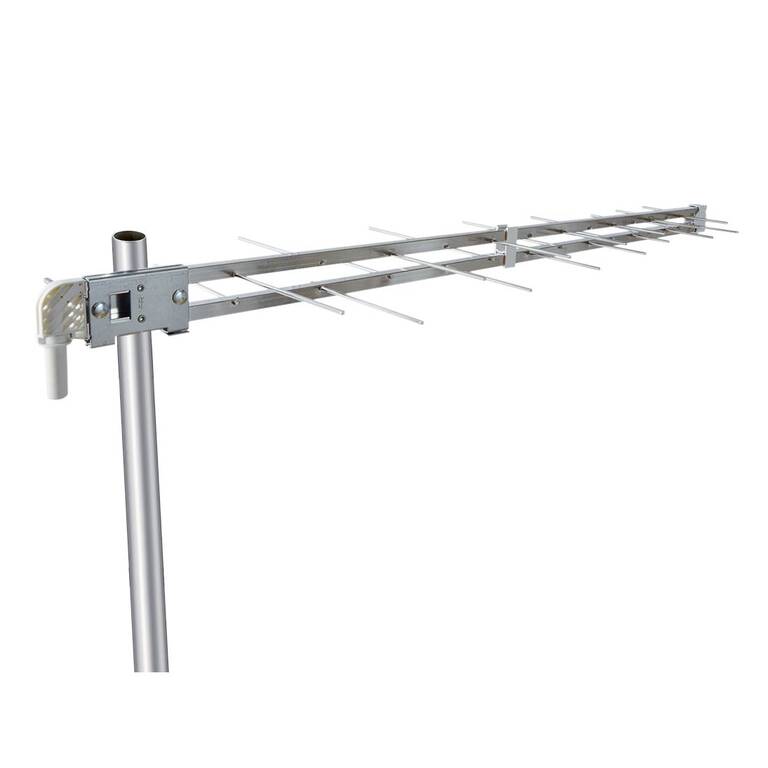

Fracarro LP45F 5G Outdoor TV Antenna
Key features of Fracarro LP45F 5G Outdoor TV Antenna

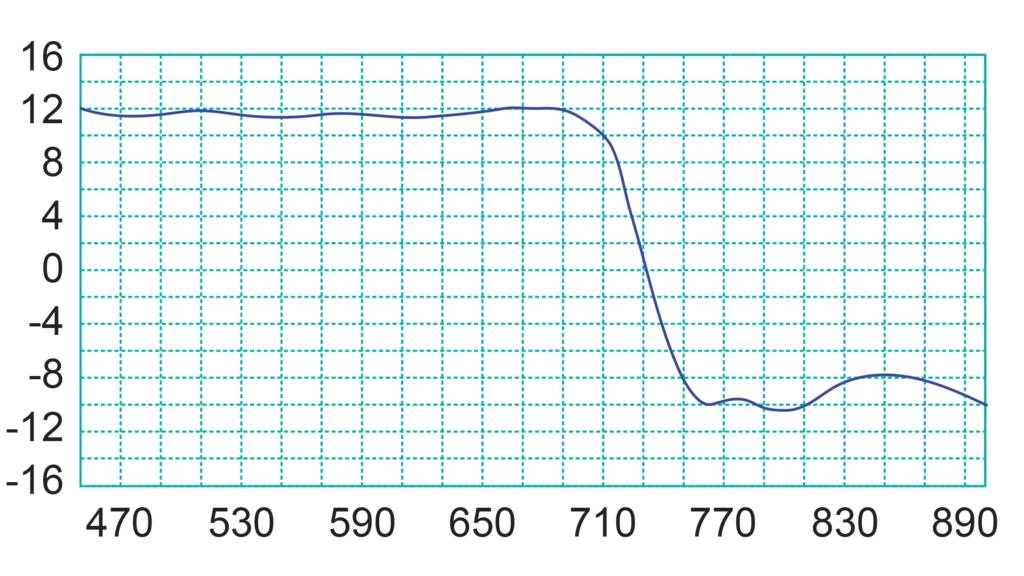

• UHF band Yagi antenna with 5G and 4G LTE filter
• Frequency range: 470-790 MHz
• Elements: 14 + 14 pcs
• Impedance: 75 ohms
• Channels: E21 - E48
• Gain: 14 dBi
• Front/back ratio: 36 dB
• Return loss: -15 dB

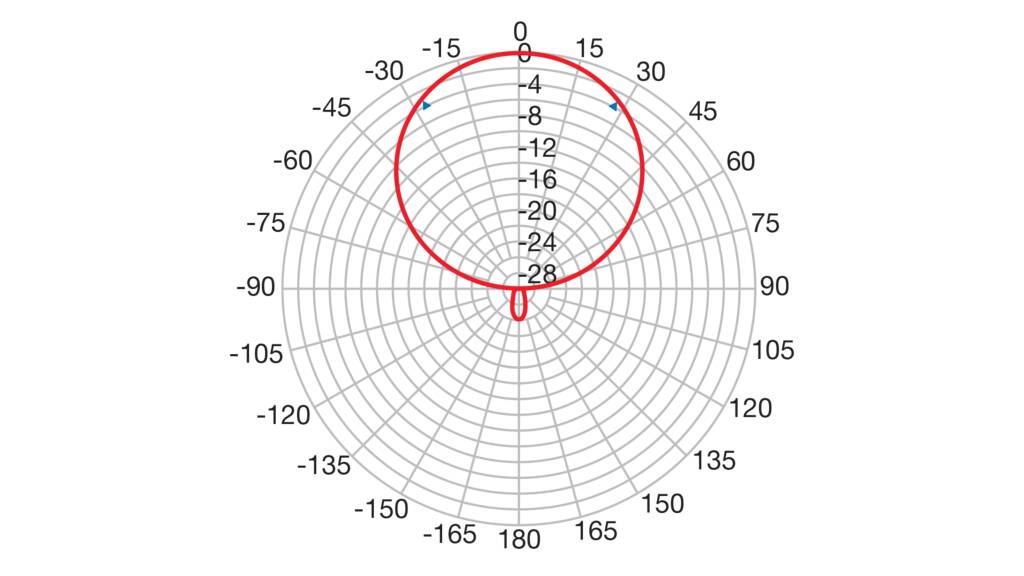

• Beamwidth: 28 degrees
Further details of Fracarro LP45F 5G Outdoor TV Antenna
• Manufacturer number: 216258
• Maximum wind load (120 km/h): 3 kg - 29.4 N
• Maximum mast diameter: 60 mm
• Color: white
• The F connector is protected by a bayonet lock protective cap
Thanks to the special pole mount, the antenna can be installed in vertical and horizontal polarization without an adapter or other accessories. The geometric arrangement of the dipoles has been redesigned to provide excellent filtering against interference signals in the 5G and 4G LTE bands above 694 MHz, which are reserved for mobile phone use. The antenna provides a high degree of mechanical strength, whether in terms of securing the elements or resisting rotation on the pole. It also offers excellent electrical performance.
