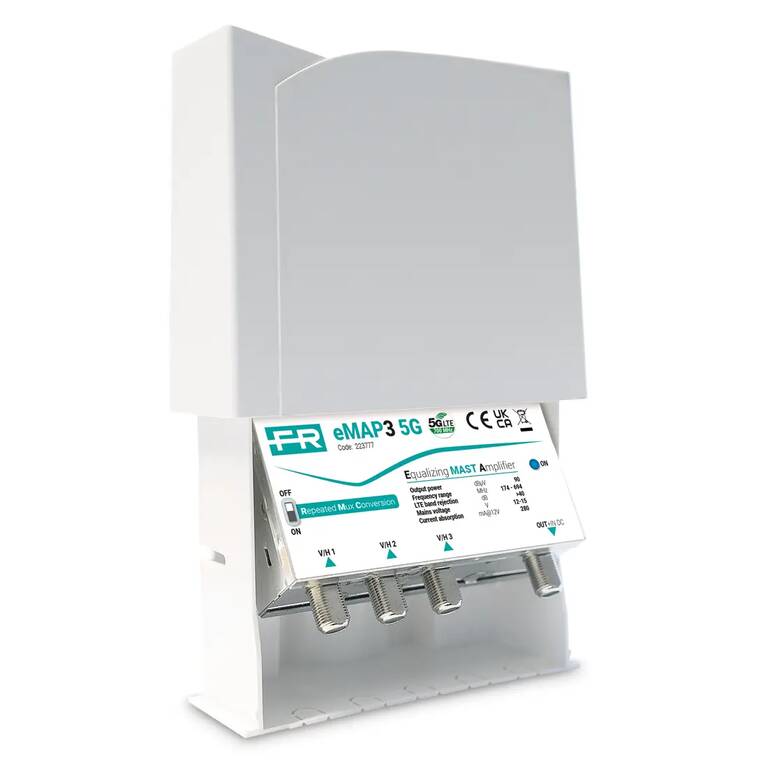

Fracarro eMAP 5G Self-programmable Headend

FRA-045-999
Fracarro eMAP 5G Self-programmable Headend

Key features of Fracarro eMAP 5G Self-programmable Headend

• Frequency band: 174-240 MHz/ 470-694 MHz
• Gain: 20 dB
• Automatic signal level control: above 60 dB dynamic range
• Number of inputs and outputs: 3 (VHF/ UHF) - 1
• VHF+UHF combined band: 174-240/ 470-862 MHz
• Output level (max.): 90 dBµV
• Group selective filter: 50 dB (per 1 MHz)
• Impedance: 75 ohms
• Connector: F type
• Dimensions: 120 x 105 x 60 mm

The product is ordered directly from the Italian manufacturer. The lead time is approximately 2-3 weeks if the product is in stock, otherwise it is subject to confirmation by the manufacturer.
Gross price (including 27% VAT): 160.56€ (Net price: 126.42€)
Add to Cart Price Watch
You can ask for e-mail price notifications when the price of this product gets under a limit you specify. To use this feature you need to have a user account and to be signed in.
2 year(s) warranty
Fracarro_eMAP3_5G_fejallomas_en.pdf
English prospectus

Fracarro_eMAP3_5G_fejallomas_manual_en.pdf
English user guide

2 year(s) warranty

Further details of Fracarro eMAP 5G Self-programmable Headend

• Modulation error ratio: 35 dB
• Return loss: above 10 dB
• Power supply: 12-15 V (SPS1750 power supply included with the device)
• Operating temperature: between -5 and 50 degrees Celsius
• Power consumption: 4.2 W
• Self Equalizer: the product scans all the input signals and automatically amplifies all receivable channels, equalizing them on the output port. It is done automatically after every short-time power-off.
• Repeated Mux Conversion: when there are iso-frequency channels on different inputs, it is possible to decide, setting a dip-switch, if maintain only the stronger channel and remove weaker, or re-locate weaker channels on 5G and 4G LTE frequencies.
• The station can filter, convert, amplify and distribute many DVB-T/T2 digital terrestrial multiplexes available in both VHF and UHF bands.
• Perfect equalisation of output signals.
• Isofrequency filtering or channel conversion.
• Automatic gain control on every single mux.
• 5G and 4G LTE filtering.
• Quick and easy installation.
